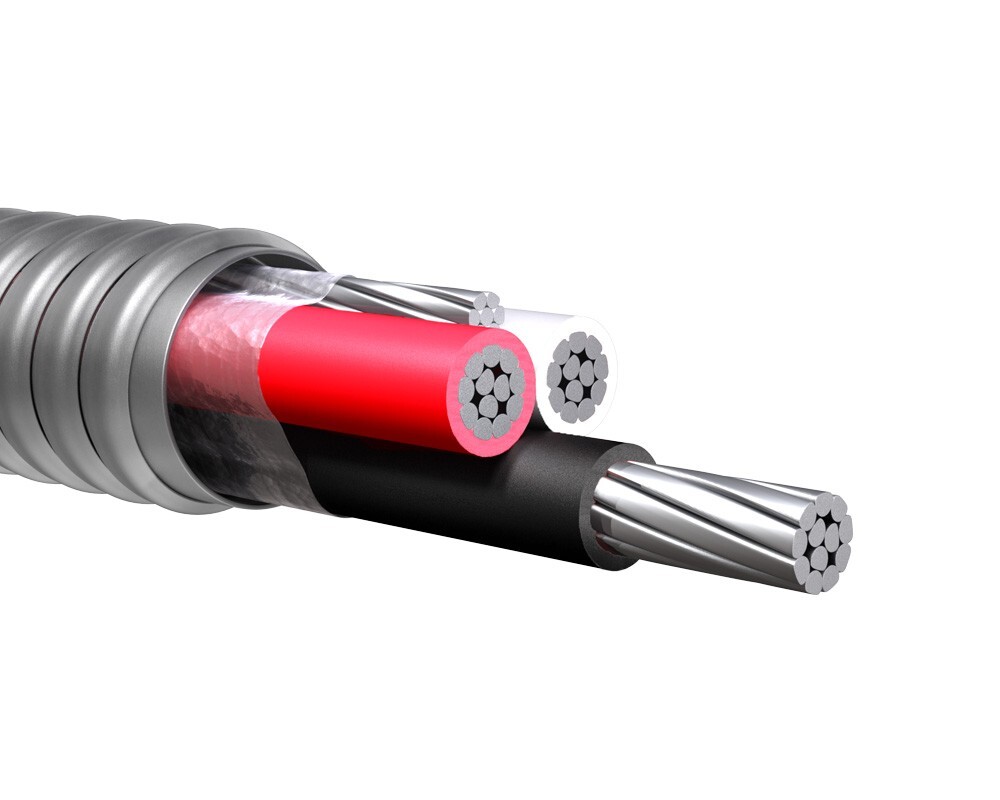

75\' 2/3 With Ground Aluminum MC Interlocked Armor Metal Clad Cable 600V Click Thumbnails to EnlargeAPPLICATION
- 2/3 Aluminum MC Cable is suitable for use as follows: Branch, feeder and service power distribution in commercial, industrial, and multi-residential buildings, power, lighting, control and signal circuits. Suitable for use in cable trays, approved raceways, concealed or exposed installations, environmental air-handling spaces, risers, as well as hazardous locations as permitted in articles 501,502,503 and 504.
CONDUCTOR
- Compact strand 8000 series aluminum alloy conductors
INSULATION
- Color coded cross-linked polyethylene XHHW-2 AA-8000 XLP insulation. A binder tape is wrapped over the insulated conductors’ assembly.
STANDARDS
- NEMA WC-70/ICEA S-95-658
-IEEEE 1202 70,000 BTU/HR Vertical Tray Flame Test
-ASTM B800 & B801
-NEC 518.4, NEC 520.5, NEC 645.5, and NEC 300.22 for environmental air-handling spaces
DISCLAIMER
- Picture May Not Represent Actual Cable and Is Only Used As A Representation Please Refer to The Specifications For Product Accuracy.
PRODUCT SPECIFICATIONSSize AWG 2Number of Conductors 3 + 1 GroundGround Wire Size AWG 6Insulation Thickness (inches) 0.045Diameter Over Armor (inches) 1.130Ampacity (at 90°C) 100 AmpsWeight (Lbs/1000ft) 440CUT TO LENGTH
Looking for Custom Lengths? Please feel free to contact us, We can do all cut to lengths.
OTHER VALUE ADDED SERVICES
• Expedited Shipping
• Cut to Length Paralleling
• Color Striping & Dyeing
• Reel Lagging
• Special Labeling & Packages
Shipping
***Free shipping on most orders.
Need the wire fast? Ask about our expedited shipping to get it to you on time. Signature required for all deliveries. Please note \'s delivery dates are only estimates actual delivery dates may be faster or longer, please message us for exact delivery times.***
Payment & Returns
***All returns must be made within 30 days from the date of purchase or they will not be accepted. Nassau National Cable does not cover re-delivery fees, extraneous shipping expenses or change of address fees after shipping***
