Product Specifications

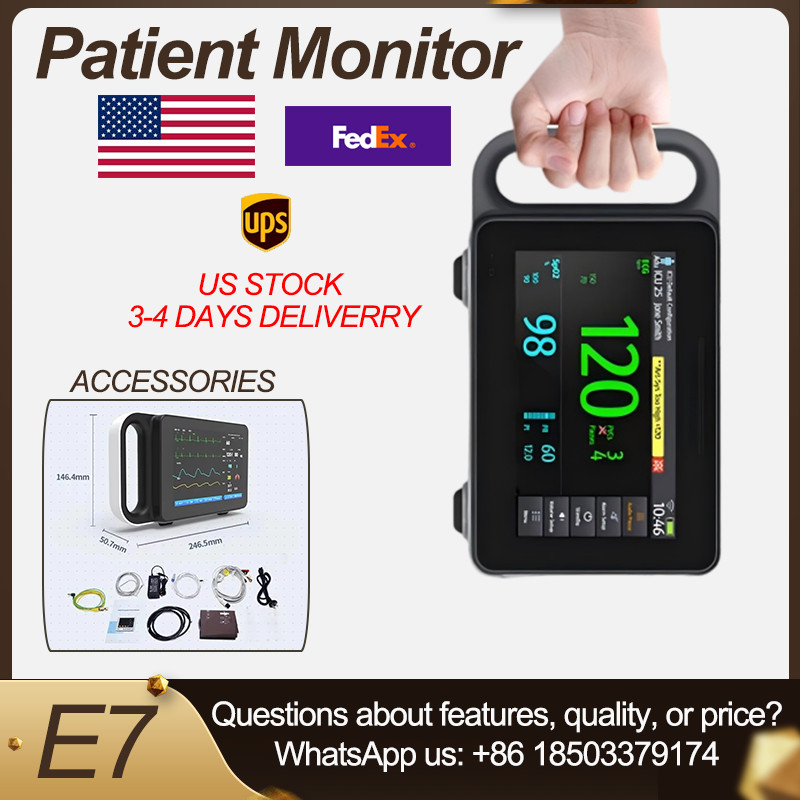

Multi-Parameter Monitor
Electrical Specifications:
- Product Model:E7
- Power Supply:12V 2A adapter (both AC and DC)
- Maximum Input Power:70VA
- Battery:Rechargeable lithium battery
Physical Specifications:
- Screen Size:7 inch
- Weight:950 g
- Product Dimensions:246.5 × 146.4 × 50.7 mm
Environmental Specifications:
- Operating Temperature:5°C ~ 40°C
- Working Humidity:15% ~ 80%
- Atmospheric Pressure:60 kPa ~ 107 kPa
Standard Parameters:
ECG / NIBP / PR / RESP / TEMP / SPO2 /ETCO2
6 Detection Functions
Protect the health of the elderly
ECG
Five-lead ECG monitoring withsimultaneous display of seven-lead waveforms on the same screen.
NIBP
One-button blood pressure measurement,featuring a blood pressure log and dual software/hardware overvoltageprotection.
TEMP
Contact-based body temperaturemeasurement with multi-parameter synchronization and temperature trendstatistics.
RESP
Thoracic impedance method forrespiratory wave extraction, displaying respiratory waveforms and respiratoryrate simultaneously.
SPO₂/PR
LFC (Light Frequency Conversion) opticaldigital technology for large-font display of blood oxygen saturation (SpO₂) and pulse rate (PR), with real-time pulse oximetry waveform.
The Importance of Having a Monitor atHome
With the improvement of livingstandards, there is a growing demand for daily healthcare. Traditional bloodpressure monitors, oximeters, and ECG devices can no longer meet higherhealthcare needs due to their functional limitations. At the same time, asmedical equipment becomes more accessible, it is essential for bedriddenpatients or those with chronic conditions to have a comprehensive monitor thattracks vital signs such as blood pressure, ECG, blood oxygen, pulse rate,respiration, and body temperature. This helps safeguard their health andminimize disease-related harm.
SpO₂ (Blood Oxygen Saturation)
SpO₂ is the percentage of oxygen-bound hemoglobin (HbO₂) in the total hemoglobin (Hb), reflecting whether the body ishypoxic—acritical respiratory parameter.
- Healthy individuals:SpO₂ ≥ 94%.
- Insufficient oxygen supply:SpO₂ < 94%.
- Hypoxemia standard:SpO₂ < 90%.
RESP (Respiration Rate)
The monitor measures respiration usingthoracic impedance. Breathing movements alter the impedance between electrodes,extracting the respiratory rate (breaths per minute).
- Adults:12–20 breaths/min.
- Newborns:30–50 breaths/min (decreases with age).
Vital Signs
Vital signs (respiration, bodytemperature, pulse, and blood pressure) are fundamental to sustaining life.Abnormalities in any parameter may indicate severe or fatal conditions, makingthem key indicators of health.
ECG (Electrocardiogram)
An ECG records the heart's electricalactivity during each cardiac cycle, displaying potential changes via themonitor. It includes:
- Heart rhythm monitoring.
- Heart rate monitoring.
NIBP (Non-Invasive Blood Pressure)
Blood pressure reflects hemodynamicstatus, with systolic (contraction) and diastolic (relaxation) pressures. Themonitor uses anoscillometric methodto measure:
- Systolic/diastolic pressure, mean arterial pressure, and pulse rate.
- Supports manual, automatic, and continuous modes.
TEMP (Body Temperature)
The monitor employs temperature sensing. Probes include:
- Surface probes:For skin temperature.
- Cavity probes:For internal temperature monitoring.
