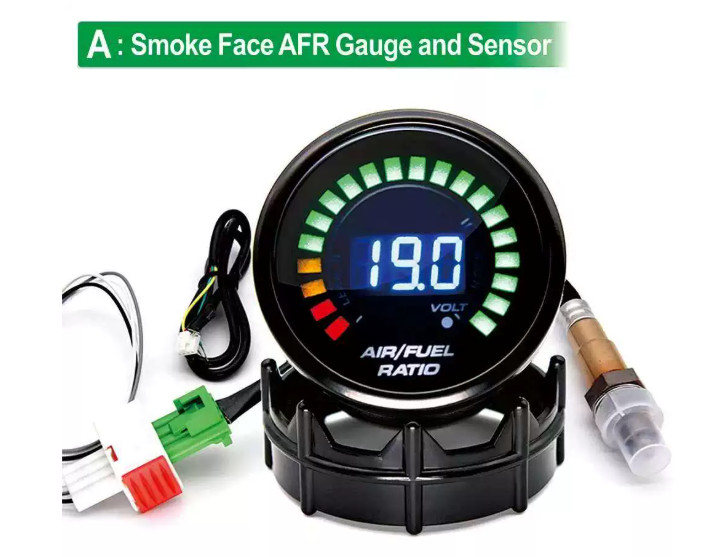

52mm Air Fuel Ratio Gauge LED Digital Display With Narrowband O2 Oxygen Sensor Car Gauge for 12V Car 0258006028 Racing Gauge
Attention: the sensor is Narrrowband Oxygen Sensor and it should be working on 0-1V , please check your car whether fit for it or not before making order !!!!!!
thanks!
Oxygen Sensor Specification:
OEM:0258006028Working Voltage: DC12VSignal Line Voltage: 0-1VSpiral: M18*1.5Use Wrench: 22mmOutput Voltage: Maximum value ≥900mv/ minimum value ≤50mv.Response time: (600mV-300mV) ≤100ms.Response time: (300mV -600mV) ≤100ms.Starting time: ≤10sHeating resistance: 8.5~9.5ΩInternal resistance: 200~300Ωfit For Geely Emgrand CITROEN FIAT PEUGEOT
Connection:
The white line is at heater ab
Black line signal line C, gray line signal ground DThe green wire of the instrument is connected with the black wire of the sensor. The gray line is connected to the negative pole of the battery.
One white wire connect with the car shell or battery negative pole.
Another white wire connect to the ACC line of ignition switch
The white line is the heater and does not distinguish between positive and negative electrodesAbout the air fuel gauge, please see the installation instructions.
Attention: If you need the sensor and the gauge , please choose the item of sensor and gauge together.
Package:
1* Air Fuel AFR Gauge
Or
1* Narrowband Oxygen Sensor1* English Manual(Only teach how to install the gauge,but do not teach how to install the O2 sensor,thanks)
Note:
1.Highly Recommended professional installation,do not teach you how to connect the O2 Oxygen sensor.2.This kit is not a universal kit, please confirm whether this oxygen sensor is suitable for your car before buying, thank you!
