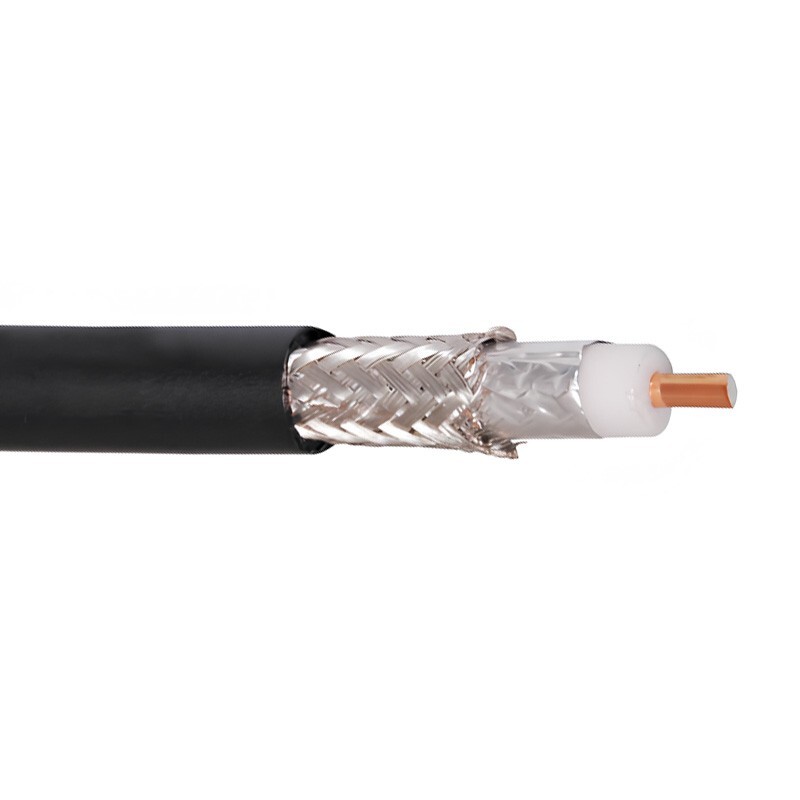

500\' LMR-600-FR Fire Rated Low Loss Communications Coax Cable Black
Click Thumbnails to EnlargeAPPLICATION
• Jumper Assemblies in Wireless Communications Systems
• Short Antenna Feeder runs
• Any application (e.g. WLL, GPS, LMR, WLAN, WISP, WiMax,SCADA, Mobile Antennas) requiring an easily routed,low loss RF cable
DESCRIPTION
• LMR - FR is a non-halogen (non-toxic), low smoke,fire retardant cable designed for in-building runs that canbe routed anywhere except air handling plenums.LMR-FR is UL/NEC & CSA rated ‘CMR’ and ‘FT4’respectively, meets FAA FAR25 requirements and isMSHA-P for mining applications.
•Flexibility and bendability are hallmarks of the LMR600 cable design. The flexible outer conductor enablesthe tightest bend radius available for any cable of similarsize and performance
• Low Loss is another hallmark feature of LMR-600.Size for size LMR has the lowest loss of any flexible cableand comparable loss to semirigid hard-line cables.
• RF Shielding is 50 dB greater than typical singleshielded coax (40 dB). The multi-ply bonded foil outerconductor is rated conservatively at > 90 dB (i.e. >180dB between two adjacent cables).
•Weatherability: LMR-600 cables designed foroutdoor exposure incorporate the best materials for UVresistance and have life expectancy in excess of 20 years.
CONDUCTOR
• Solid Bare Copper Clad Aluminum
OUTER SHIELD
• Aluminum Tape
JACKET
• Black FRPE Jacket
PRODUCT SPECIFICATIONSPart Number LMR-600-FREnvironment IndoorDielectric Foam PolyethyleneOverall Diameter (inches) 0.590Velocity of Propagation (VP) 87Impedance (ohms) 50Weight (lbs/1000ft) 135
