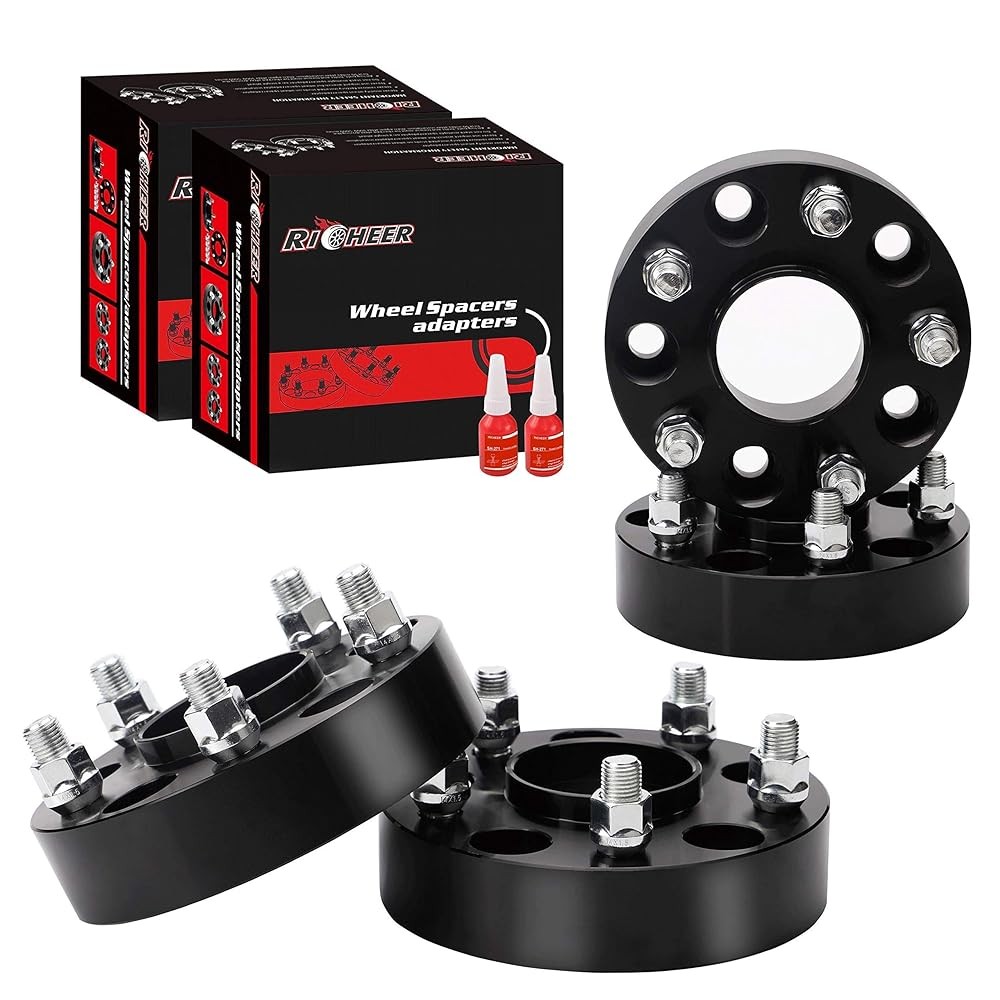

4X 1.5" 2012-2023 Dodge Ram 1500 5x5.5 Wheel Spacers Hubcentric 5x139.7 M14X1.5 For Sale

• Quantity: Four (4)
• Thickness: 1.5" (38.1mm)
• Bolt Pattern: 5x5.5(5x139.7mm)
• Center Bore: 77.8mm
• Stud/Nut Thread Pitch: M14x1.5

• 2012-2018 Ram 1500
• 2019-2021 Ram 1500Classic

• Positions your wheels 1.5 inch outward
• Allows installation of wider wheels & tires
• Increases your vehicle's track-width
• Hydraulic Pre-Pressed Studs eliminate the risk of vibrations
• Improves the look of your vehicle

• High Tensile Strength Forged 6061-T6 Aluminum
• Precision CNC Machined ensure high accuracy and safety
• Hard Anodized for durablity
• High quality pre-installed heat treated 12.9 grade studs

1

2

3

4

• Following your vehicle owner's manual, proper raise the vehicle and support it using adequately load-rated jackstands.
• Remove wheels and inspect rotors for any damage or cracks. If any damage is identified, don't continue with this installation.
• Remove any wheel visible rust from the mating flange on the vehicle's rotor. Check both the rotor and wheel mounting flanges for burns, rivet heads, or other obstruction which could prevent proper seating of the spacer/adapter.

• If proper seating can be achieved, apply provided thread locker to vehicle's studs and mount the wheel spacers on to rotor by torquing provided wheel spacers/adapter lug nuts. Tighten all lug nuts to the appropriate torque specification using a torque wrench.
• Install wheel on to wheel spacer using existing lug nuts. Tighten all lug nuts to the appropriate torque specification using a torque wrench.
• DO NOT USE AN IMPACT WRENCH.

• Check that wheel and tire clearance allow for full steering(lock-to-lock).
• If there is no interference, vehicle may be lowered.
• Re-check torque after traveling the first 50-100 miles, then again every 2000-3000 miles.
