4KW 10KW 12KW 48V Solar Hybrid Inverter Split Phase 200A MPPT Charger Controller For Sale

4KW 10KW 12KW 48V Solar Hybrid Inverter Split Phase 200A MPPT Charger ControllerNote: There are 4 types of inverters in the ads, Please pay attention to selecting the model you need when placing an order, thank you.① 4000W DC24V(Only 110V) ② 6500W DC48V（Split Phase)③ 10KW DC48V（Parallel and Split Phase)④ 12KW DC48V（Parallel and Split Phase）Type 1: 4000W 24VDC Model(Only 110V/120V)Why This Inverter Is a Game-Changer for Off-Grid & Backup PowerTired of unstable power frying your expensive electronics? Fed up with bulky solar setups that force you to buy costly batteries? Worried about grid outages leaving you in the dark? This 4000W hybrid solar inverter leads with battery-less daytime operation + pure sine wave protection — the all-in-one off-grid & backup power solution built for homes, RVs, cabins and emergency blackout use, solving your top pain points in seconds.Core Advantages | What This Means for You✅ Battery-Less Daytime Operation – Slash Costs, Skip the Battery HassleNo battery? No problem. When sunlight is strong enough, this inverter runs your devices directly from solar panels without needing a battery bank. Slash upfront battery costs, streamline your installation, and make daytime off-grid power more affordable than ever — perfect for seasonal cabins, daytime workshops or budget builds.Plus, customize charging & output priority (solar first / grid first / battery first) via the LCD screen, taking full control of your home energy flow.✅ Pure Sine Wave Power – Guard Your Gear, No Damage EverDelivers 4000W continuous power / 8000W surge power of grid-grade pure sine wave electricity, no choppy or distorted output. Safely run sensitive laptops, medical devices, TVs, and heavy-duty appliances like refrigerators, air conditioners, water pumps and power tools without damage or interference, extending the lifespan of all your gear.✅ 140A High-Efficiency MPPT Charge Controller – Maximize Solar PowerBuilt-in 140A MPPT solar charger (up to 5600W PV input) boasts an impressive 98% conversion efficiency, soaking up more sunlight to charge batteries faster. The wide 55-350VDC PV input range works with most solar panels, and it’s fully compatible with all 24V batteries (AGM, GEL, Lithium-ion, LiFePO4) — with automatic lithium battery activation to eliminate manual reset hassles.✅ Large LCD Touchscreen + Smart Controls – Easy to OperateSleek tempered glass top cover paired with a 6.25-inch LCD touch display, letting you monitor real-time voltage, charging current, load power and system status at a glance. The intuitive interface makes setup a breeze: adjust AC output voltage (100/110/120Vac), select battery type, set charging current, and even restore default settings with one click if needed.✅ 360° Safety & Reliable Performance – Worry-Free UseTriple cooling fans prevent overheating for steady long-term operation, while a full suite of safeguards keeps your system protected: overload protection, over-temperature protection, short circuit protection and reverse connection protection. The smart charging algorithm extends battery life, and handy features like auto-restart (when solar recovers) and cold restart ensure power stays on when you need it most.✅ Flexible Power Integration – Seamless Backup PowerSolar power, grid power and battery power work in harmony to keep your space powered 24/7. Whether you’re living off-grid full-time or prepping for grid outages, this inverter delivers uninterrupted power, making it your go-to emergency backup solution.Full Feature List

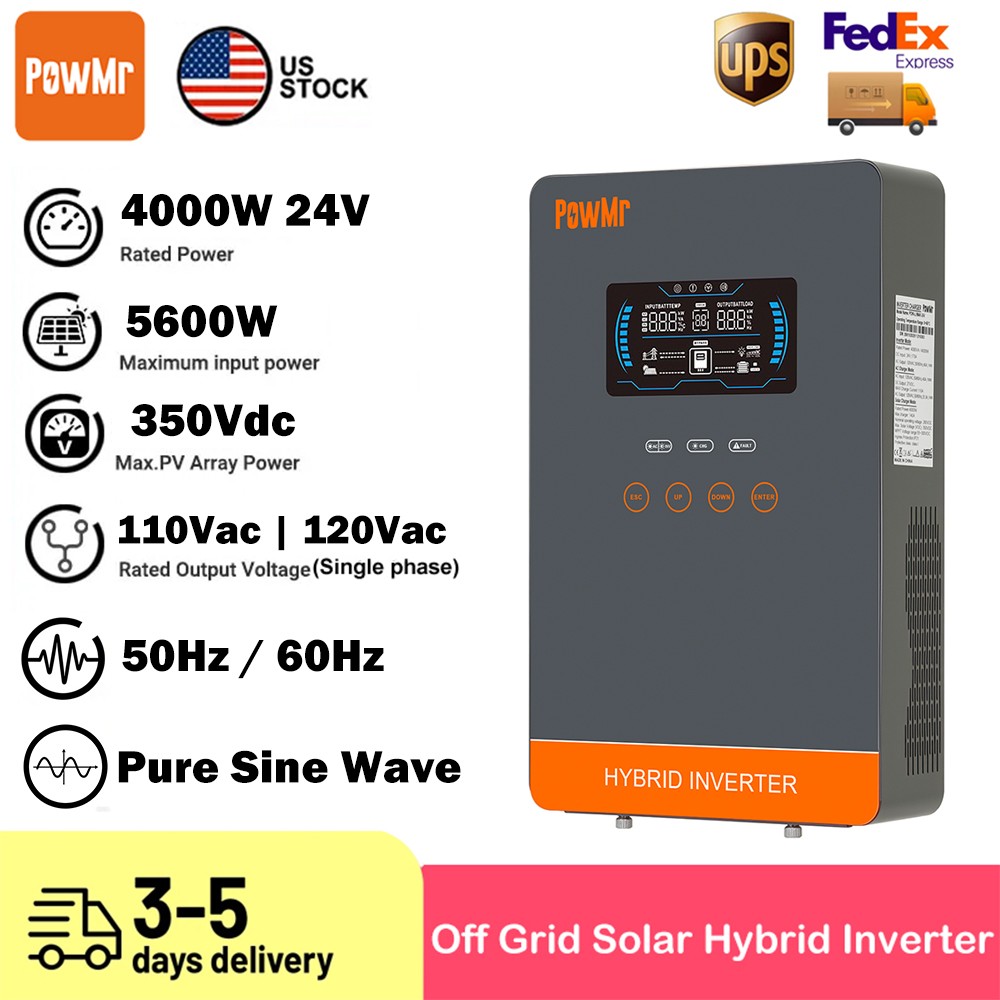

• All-in-one off-grid pure sine wave solar inverter
• Unique battery-less operation for daytime solar-only use
• Adjustable AC output voltage (100/110/120Vac) in battery mode
• Seamless integration of utility, battery and solar power
• Built-in 140A MPPT solar charger (max 5600W PV input)
• Wide PV input voltage range: 55~350Vdc
• Smart charging algorithm to optimize battery lifespan
• Customizable AC/battery input priority via LCD
• Auto-restart when solar power recovers
• Comprehensive overload, over-temperature & short circuit protection
• Cold restart function for reliable startup
• Automatic lithium battery activation
• RS232/RS485 communication ports
• Optional WiFi monitoring for remote control
• Optional anti-dust kit for harsh environments
• One-click default settings restoration

Critical Installation & Usage NotesWaterproof Notice: This unit is NOT waterproof – must be installed indoors or in a fully sheltered, well-ventilated area (keep away from rain, moisture and dust buildup).PV Voltage Guidelines: Max PV input voltage 350VDC; recommended solar panel open-circuit voltage ≤280VDC for stable operation; PV startup voltage must be >90VDC to ensure proper battery charging.Function Limitation: This inverter does NOT support parallel MODEL4.0KW/24VInput Voltage WaveformSinusoidal (utility or generator)Nominal Input Voltage120VacLow Loss Loss Return Loss Voltage140Vac±5VHigh Loss Return Voltage135Vac±5VMax AC Input Voltage150VacNominal Input Frequency50Hz/60Hz(It can be set in program 09)Low Loss Frequency45±1Hz/55±1HzLow Loss Return Loss Loss Return Short Circuit ProtectionLine mode:Circuit Breaker
Battery mode:Electronic CircuitsEfficiency(Line Mode)>95%(Rated R load,battery full charged)Transfer Time10ms typical(UPS);
20ms typical(Appliances)Table 2 Inverter Mode SpecificationsINVERTER MODEL4.0KW/24VRated Output Power4.0KWOutput Voltage WaveformPure Sine WaveOutput Voltage Regulation120Vac±5%Output Frequency60Hz or 50HzPeak Efficiency94%Overload Capacity2*rated power for 5 secondsNominal DC Input Voltage24VdcCold Start Voltage23.0VdcLow DC Warning Voltage22.0VdcLow DC Warning Return Voltage23.0VdcLow DC Cut-off Voltage21.0VdcHigh DC Recovery Voltage29VdcHigh DC Cut-off Voltage31VdcNo Load Power Consumption<35WTable 3 Charge Mode SpecificationsUtility Charging ModeINVERTER MODEL4.0KW/24VCharging Current(UPS)
@Nominal Input Charging Voltage27VdcCharging Algorithm3-StepSolar Charging ModeINVERTER MODEL4.0KW/24VMax Solar Panel Input Power5600WPV Charge Current140AEfficiency98.0%max.Max.PV Array Open Circuit Voltage350VdcPV Array MPPT Voltage Range55-350VdcStandby Power Consumption2WBattery Voltage Accuracy+/-0.3%PV Voltage Accuracy+/-2VCharging Algorithm3-StepTable 4 General SpecificationsINVERTER MODEL4.0KW/24VSafety CertificationCEOperating Temperature
Range0℃to 55℃Storage Weight,kg8.5kgType 2: 6500W 48VDC Model(Split phase)Description:

This inverter delivers a 6500W output, making it an ideal choice for off-grid applications—perfect for rural homes, RVs, cabins, and outdoor workspaces across the US. It efficiently converts 48V DC power from 48V lead-acid or lithium batteries to 110V/220V AC, seamlessly powering your household appliances, tools, and electronics. What truly sets it apart is its integrated 120A MPPT (Maximum Power Point Tracking) controller, engineered to deliver industry-leading efficiency of up to 99%. This exceptional MPPT performance ensures that every watt of solar energy your panels generate is captured and converted with minimal waste, maximizing your solar harvest, cutting down on energy costs, and making your off-grid setup more sustainable and cost-effective— a key advantage for American homeowners and off-grid users looking to get the most out of their solar investment.

Featuring pure sine wave output, this inverter provides clean, stable, and reliable power—protecting sensitive devices like laptops, refrigerators, and medical equipment from voltage fluctuations, a key priority for American homeowners and off-grid enthusiasts.

Important Note:

For split-phase 240V output (commonly used for high-power US appliances like air conditioners and electric stoves), the input voltage must also be 240V.

Powerful 6500W Output 🌟

This inverter delivers a robust 6500W output, ideal for off-grid applications. It converts 48V DC to 110V/220V AC, suitable for 48V lead-acid and Li batteries. The 120A MPPT controller ensures efficient energy conversion. It provides a pure sine wave output, ensuring clean and reliable power.

Versatile Compatibility 🌌

The inverter is compatible with 48V lead-acid and Li batteries, making it versatile for various applications. It is ideal for off-grid use, ensuring uninterrupted power supply. The split phase design offers optimal power distribution.

Key Features 🌟

• Capable of operating without a battery.
• 120Vac single phase and 240Vac split phase.
• Wider PV input voltage range: 100V~500Vdc.
• Excellent solar MPPT performance, up to 99% efficiency.
• Battery wake-up function.
• Communicates with battery BMS via RS-485 interface.
• Pure sine wave inverter.
• Configurable battery charging or discharging current.
• Configurable AC/Solar Charger priority.
• Overload, over temperature, and short circuit protection.

Specification Sheet:MODELFU65-248PPV ArrayMax.PV Array Power7200WMax.PV Array Open-Circuit Voltage500VdcStart-up Voltage100VdcMPPT Operating Voltage Range120-450VdcMPPT Efficiency99%Nominal Input Voltage360VdcMax.Input Current MPPT18ABatteryBattery Typelead-acid /Li-ionNominal Battery Voltage48VBattery Voltage Range42-58VMax.AC Charging Current50AMax.PV Charging Current100AMax.battery discharge current120AAC InputNominal Voltage240Vac(split phase)Voltage Range170-275VacHigh Loss Voltage280Vac±7VLow Loss sensing)High Loss Frequency65HzLow Loss Frequency45HzMax.Input Current40AAC OutputNominal Voltage WaveformPure Sine WaveRated Output Power6500VA/6500WPeak Output Power8000VANominal Output Frequency50/60HzTransfer Time10msMax.PV to AC Efficiency96.5%Max.Battery to AC Protection3s@150%load; 10s@110%~15%loadGeneral DataOperating Temperature Range-10--+50℃Safety CertificationCERelative Humidity0-95%Relative Humidity(Non-condensing)Max.Operating Altitude<4000mCooling MethodIntelligent Fan coolingDisplayLED+LCDCommunication with BMSRS-485Communication with CloudWiFi/4GDegree of MethodWall MountedType 2: 10000W 48VDC Model(Split Phase and parallel 6 units)New Version: POW-SunSmart 10KP Updated Version

• 【Touchscreen LCD Design】 Tired of confusing LED codes and tiny buttons? Unlike traditional inverters, this 10000W power inverter features an intuitive LCD touch screen with real-time energy flow visualization. See exactly where power is coming from and where it’s going. Adjust settings with one tap. Total control at your style=\"list-style-type: disc;\">【10KW NEW PARALLEL VERSION】PowMr 48V Split-phase olar inverter supports both split-phase and single-phase pure sine wave output. A single 10k inverter can simultaneously output 120V and 240V through different connections. Upgraded to support parallel operation, enabling capacity expansion up to 60kW (max 6 inverters in parallel)

• 【MULTIFUNCTIONAL SOLAR INVERTER】UL1741 Standard POW-SunSmart split-phase solar inverter is a new type of solar energy storage inverter control inverter integrating solar energy storage & utility charging and energy storage, AC sine wave output. Dual MPPT with 99.9% efficiency and maximum 22A current in a single circuit, perfectly adapted to high-power modules. Supports two solar inputs and simultaneous tracking of two solar maximum power charging/carrying capacity functions.

• 【TECHNICAL SPECIFICATIONS】Rated output :10000Watt continuous (with surge up to 20000W). Rated output voltage: 120/240Vac (split-phase/single-phase). Maximum PV input power: 11KW (5500W per MPPT input). Maximum PV input: 500V DC and 22A. The PV starting voltage: ≥150V, and it uses 10AWG PV wire. Communication ports: CAN, USB, and RS485 interfaces.

• 【14 Smart Protection Functions】: Multiple intelligent protections, such as PV input current/power limiting protection, PV input over-voltage, PV night reverse current protection, AC input over-voltage protection, AC input under-voltage protection, etc.

• 【Dual MPPT/Battery Type】: Dual MPPT with 99.9% efficiency and maximum 22A current in a single circuit, perfectly adapted to high power modules.Compatible with various batteries such as AGM, Gel, Lead-acid, Lithium-ion and LiFePO4 batteries, and supports battery-free. With a dual activation function when the li-ion battery is dormant; either mains/photovoltaic power supply access can trigger the activation of the li-ion battery.

• 【Single/Split-phase mode】: In split-phase mode: Output Voltage Range (L-N): 100～120Vac, 120Vac default, Output Voltage Range (L-L): 200～240Vac, 240Vac default. In single phase mode: Output Voltage Range (L-N): 100～120Vac, 120Vac default.

• 【Time-slot charging/Discharging function】:The POW-SunSmart series is equipped with a time-slot charging and discharging function, which allows users to set different charging and discharging periods according to the local peak and valley tariffs, so that the utility power and PV energy can be used rationally.

• 【Charging/AC output mode】: 4 AC output modes: Utility Priority Output, Solar and Utility Hybrid Output, Solar Priority Output, Inverter Priority Output. 4 battery charging modes: Hybrid Charging, Utility Priority Charging, Solar Priority Charging, Only Solar Charging.
• 【Tips】 The packaging only includes the inverter, 2 * Battery Terminal Lugs, 2 * M5 screws, and instructions, and does not include WiFi modules/ batteries/ adapters/ batteries/ plugs/ wires/ cables. If needed, please make an additional purchase!

Advantages⚫ Supports lead acid battery and li-ion battery connections. ⚫ With a dual activation function when the li-ion battery is dormant; either mains/photovoltaic power supply access can trigger the activation of the Li-ion battery. ⚫ Support split-phase and single-phase pure sine wave output. ⚫ Supports four different voltage levels of 100Vac, 105Vac, 110Vac, and 120Vac per phase. ⚫ Supports two solar inputs and simultaneous tracking of two solar maximum power charging/carrying capacity functions. ⚫ Dual MPPT with 99.9% efficiency and maximum 22A current in a single circuit, perfectly adapted to high-power modules. ⚫ 4 charging modes are available: solar only, mains priority, solar priority, and mixed mains/PV charging. ⚫ With the time-slot charging and discharging setting function, you can set the time period for cutting in/out of mains charging and switch the time period between battery discharging and mains bypass power supply mode. ⚫ Energy saving mode function to reduce no-load energy losses. ⚫ With two output modes of utility bypass and inverter output, with uninterrupted power supply function. ⚫ LCD large screen dynamic flow diagram design, easy to understand the system data and operation status. ⚫ 360° protection with complete short circuit protection, over-current protection, over under voltage protection, overload protection, backfill protection, etc.⚫ Support CAN, USB, and RS485 communication.Specification:Type 3: 12000W 48VDC Model(Split Phase and Parallel 6 Units)Instructions

• 【MULTIFUNCTIONAL SOLAR INVERTER】UL1741 Standard POW-SunSmart split-phase solar inverter is a new type of solar energy storage inverter control inverter integrating solar energy storage & utility charging and energy storage, AC sine wave output. Dual MPPT with 99.9% efficiency and maximum 22A current in a single circuit, perfectly adapted to high-power modules. Supports two solar inputs and simultaneous tracking of two solar maximum power charging/carrying capacity functions.

• 【 Support Up to 6 Units in Parallel Connection】 The 12KW solar inverter charger allows connection of up to 6 units simultaneously. This configuration grants a total power output of up to 72000W, catering to various applications such as residential, office, commercial, and industrial use. With its dependable and efficient design, as well as its effortless expandability, this solar inverter charger is an ideal choice for extensive solar systems.

• 【DUAL MPPT】Dual MPPT with 99.9% efficiency and maximum 22A current in a single circuit, perfectly adapted to high-power modules. Supports two solar inputs and simultaneous tracking of two solar maximum power charging/carrying capacity functions. Support split-phase and single-phase pure sine wave output.

• 【COMPATIBLE WITH VARIOUS BATTERIES】12000W 48V split phase power inverter is compatible with AGM, Gel, Lead acid, Lithium-ion, and LiFePO4 batteries, and support batteryless. Supports solar, utility, or generator power to charge the battery. It can flexibly schedule the Inverter charging and discharging time. With a dual activation function when the li-ion battery is dormant; either mains / photovoltaic power supply access can trigger the activation of the Li-ion battery.

• 【TECHNICAL SPECIFICATIONS】Hybrid Solar Inverter 48V built-in 200A MPPT controller and 12KW Pure sine wave inverter. Rated Output Power: 12000W continues (Surge 24000W), Rated Output Voltage: 120/240Vac (split phase/single phase), Switch Time: 10ms, Max.PV Input Power: 13.2KW(6600*2), Max.PV input Voltage: 500Vdc, Max.PV input current: 22A, Starting voltage > 150V, PV Wire:10AWG. Support CAN, USB, and RS485 communication.

• 【CHARGING MODES AND TIME CAN BE SET】Pure Sine Wave Solar Inverter has 4 charging modes that are optional, i.e. solar only, mains priority, solar priority, and mixed mains/PV charging; and with two output modes of utility bypass and inverter output, with uninterrupted power supply function.

• 【360° PROTECTION AND APPLICATIONS】PowMr\'s 12KW Solar Inverter with complete short circuit protection, over-current protection, over-under voltage protection, overload protection, backfill protection, etc, is ideal for off-grid backup and self-use applications. Widely used for home, cabin, camper, RV, trailer, boat, and so on and used as backup supply while utility outages.

• 【Only need 1 unit can output 110V/220V】Support split-phase and single-phase pure sine wave output. And supports four different voltage levels of 100Vac, 105Vac, 110Vac, and 120Vac per mode】: In split-phase mode: Output Voltage Range (L-N): 100～120Vac, 120Vac default, Output Voltage Range (L-L): 200～240Vac, 240Vac default. In single phase mode: Output Voltage Range (L-N): 100～120Vac, 120Vac default.

• 【Tips】 The packaging only includes the inverter, 2 * Battery Terminal Lugs, 2 * M5 screws, and instructions, and does not include WiFi modules/ batteries/ adapters/ batteries/ plugs/ wires/ cables. If needed, please make an additional purchase!

Advantages⚫ Supports lead acid battery and li-ion battery connections. ⚫ With a dual activation function when the li-ion battery is dormant; either mains/photovoltaic power supply access can trigger the activation of the Li-ion battery. ⚫ Support split-phase and single-phase pure sine wave output. ⚫ Supports four different voltage levels of 100Vac, 105Vac, 110Vac, and 120Vac per phase. ⚫ Supports two solar inputs and simultaneous tracking of two solar maximum power charging/carrying capacity functions. ⚫ Dual MPPT with 99.9% efficiency and maximum 22A current in a single circuit, perfectly adapted to high-power modules. ⚫ 4 charging modes are available: solar only, mains priority, solar priority, and mixed mains/PV charging. ⚫ With the time-slot charging and discharging setting function, you can set the time period for cutting in/out of mains charging and switch the time period between battery discharging and mains bypass power supply mode. ⚫ Energy saving mode function to reduce no-load energy losses. ⚫ With two output modes of utility bypass and inverter output, with uninterrupted power supply function. ⚫ LCD large screen dynamic flow diagram design, easy to understand the system data and operation status. ⚫ 360° protection with complete short circuit protection, over-current protection, voltage protection, overload protection, backfill protection, etc.⚫ Support CAN, USB, and RS485 communication.Specification: MODELPOW-SunSmart 12KP- PROCANBESETINVERTEROUTPUTRated Output Power12000WMax.Peak Power24000WRated Output Voltage120/240Vac(split phase/single phase)YRated AC Frequency50/60HzYWaveformPure Sine WaveSwitch Time10ms(typical)Parallel Number6Overload ProtectionAfter triggering the overload protection the inverter willresume output after 3 minutes,5 consecutive overloadswill switch off the output until the inverter is and output shutdownafter and output shutdownafter 10s.
Load>125%±10%:error reported and output switchedoff after 5s.BATTERYBattery TypeLi-ion/Lead-Acid /User DefinedYRated Battery Voltage48VdcVoltage Range40-60VdcYMax.MPPT Charging Current200AYMax.Mains/Generator Charging Current120AYMax.Hybrid Charging Current200AYPVINPUTNum.of MPP Trackers2Max.PVarray power6600W/6600WMax.Input current22/22AMax.Voltage of Open Circuit500Vdc/500VdcMPPT Voltage Voltage Range90-140VacFrequency Range50/60HzBypass Overload Current63AEFFICIENCYMPPT Tracking Efficiency99.9%Max.Battery InterfacesRS485/CAN/USB/Dry contactYExternal 15 class LevelIP20,Indoor OnlyOperating Temperature derated)Noise<60dBCooling MethodInternal Fan

Package Include:

1. 1X The unit
2. 1X User manual
