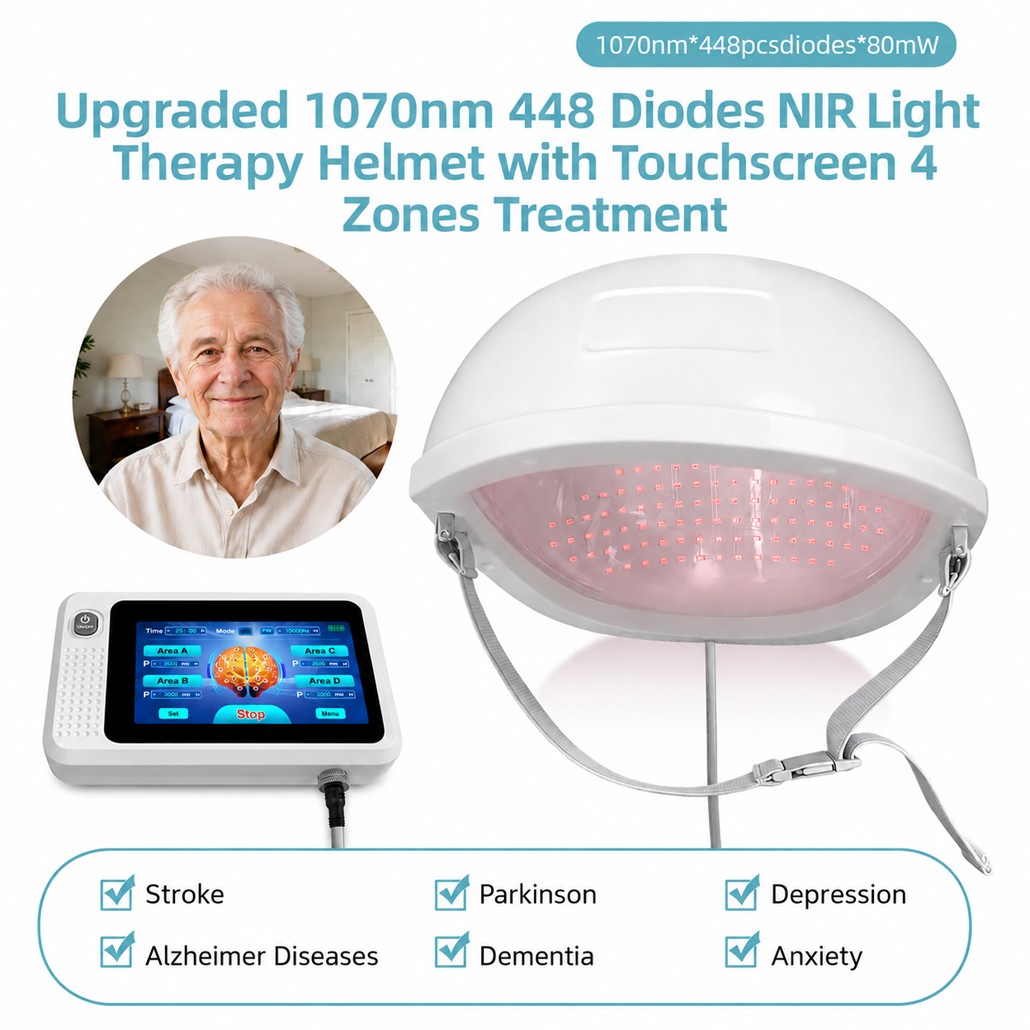

1070nm PHOTOBIOMODULATION SYSTEM 1070nm Near Infrared PBM Brain Helmet
Advanced photobiomodulation system with flexible parameter control for configurable brain treatment programs.
448 Diodes Up to 36W 4 Independent Zones 1–20,000Hz CW / PW 5\" Touchscreen CORE ADVANTAGES Key Features at a Glance 01 High-Density 1070nm Coverage 448 near-infrared diodes provide extensive light coverage across multiple regions of the head. 02 Adjustable Output Up to 36W total output with multiple intensity levels provides flexible power control for different treatment routines. 03 Independent Zone Control Select one treatment region, combine selected areas, or activate all four zones for full-head coverage. 04 Wide Frequency Range Adjustable frequency from 1–20,000Hz provides greater flexibility when configuring PBM sessions. 05 10 Preset Programs Built-in programs simplify repeated sessions and reduce the need to reset parameters each time. 06 5\" Touchscreen Control View and adjust treatment parameters directly through one clear touchscreen interface. 1070nm NEAR-INFRARED PBM How 1070nm Near-Infrared Photobiomodulation Works
The 1070nm near-infrared wavelength is used in photobiomodulation applications where deeper light penetration is required.
Near-infrared light is delivered through the helmet across the frontal, parietal, temporal and occipital regions, allowing multiple areas of the head to receive consistent NIR coverage.
This broad-coverage design combines with adjustable treatment parameters to support configurable PBM programs for different neurological and cognitive applications.
APPLICATION AREAS Brain & Neurological Applications
The system can be incorporated into photobiomodulation programs involving neurological rehabilitation, cognitive function, mood-related applications and brain treatment routines.
Common Application Areas Alzheimer\'s Disease Parkinson\'s Disease Stroke Rehabilitation Traumatic Brain Injury Depression Anxiety PTSD Migraine Insomnia Cognitive Decline Memory Loss Brain Rehabilitation 4-ZONE CONTROL Target Specific Areas or Use Full-Head Coverage
The helmet is divided into four independently controlled treatment regions. Each zone can operate individually, in selected combinations, or together for full-head treatment.
ZONE A Prefrontal Lobe Area
Associated with attention, planning, decision-making, executive function and emotional regulation.
ZONE B Parietal Lobe Area
Associated with sensory processing, spatial awareness, coordination and information integration.
ZONE C Occipital Lobe Area
Provides focused coverage around the rear region associated with visual processing and interpretation.
ZONE D Temporal Lobe Area
Associated with memory, learning, language comprehension, auditory processing and emotional processing.
TOUCHSCREEN & TREATMENT CONTROL Configure Each Session from One Interface
The 5-inch touchscreen brings the main treatment settings together in one interface, allowing users to quickly configure different treatment programs without complicated operation.
- CW & PW Modes: Select continuous or pulsed near-infrared output.
- 1–20,000Hz Frequency: Adjust pulse frequency according to the selected treatment program.
- 25% / 50% / 75% / 100% Intensity: Choose from four output levels.
- 1–60 Minute Timer: Configure session duration according to individual requirements.
- 10 Preset Programs: Quickly access frequently used treatment configurations.
- Independent Zone Selection: Operate one, several or all four treatment regions.
TECHNICAL SPECIFICATIONS Product Parameters Model Number LH280-1070-448 Product Type 1070nm Near-Infrared PBM Brain Helmet Wavelength 1070nm Number of Diodes 448 Output Per Diode Approx. 80mW Maximum Total Power Up to 36W Power Adjustment 25% / 50% / 75% / 100% Operating Modes Continuous Wave / Pulsed Wave Frequency 1–20,000Hz Adjustable Treatment Zones 4 Independent Zones Zone Operation Individual / Combined / Full Head Treatment Time 1–60 Minutes Adjustable Display 5\" True-Color Touchscreen Treatment Programs 10 Preset / Saved Programs Dimensions 24 × 28 × 13cm / 9.45 × 11.02 × 5.12in Net Weight Approx. 0.67kg / 1.48lb Power Supply AC 100–240V, 50/60Hz or DC 12V Battery Capacity 10000mAh Warranty 1 Year Storage Aluminum Carrying Case OPERATION How to Use
- Connect the touchscreen controller securely to the PBM helmet.
- Press and hold the power button to turn on the system.
- Select CW or PW operating mode.
- Select Zone A, B, C or D individually, combine selected zones or activate all four zones.
- Set the required frequency between 1 and 20,000Hz.
- Select the desired output intensity.
- Set treatment duration between 1 and 60 minutes.
- Confirm the selected parameters and begin the treatment session.
- Save preferred settings for easier repeat use.
Suggested Use: First-time users can begin with comfortable settings and gradually adjust treatment intensity, frequency and duration according to individual requirements. A typical routine may include approximately 15–25 minute sessions several times per week, depending on the treatment program. PACKAGE CONTENTS What\'s Included 1 × 1070nm PBM Brain Helmet 1 × 5\" Touchscreen Controller 1 × Pair of Protective Goggles 1 × Charger 1 × Connecting Cable 1 × AC Power Adapter 1 × Aluminum Carrying Case 1 × User Manual AFTER-SALES SUPPORT 1-Year Warranty & Professional Support
Each system is inspected before shipment and includes a 1-year warranty from the date of purchase.
Our support team can assist with product operation, parameter settings, troubleshooting and technical questions.
OEM, ODM, private logo customization, wholesale and dropshipping services are also available.
Individual responses to photobiomodulation may vary. For neurological conditions, rehabilitation programs or other specific treatment applications, treatment parameters should be selected according to individual requirements and appropriate professional guidance.
