Specification parameters:Mainframe size: 69mm long * 30mm wide * high 30mm.
Circuit size: 47.5mm long * 31.5mm wide * high 16mm.
Output wavelength: 520 nm.
Output power: 100mW 120mW 150mW 1W optional.
Cooling mode: aluminum heat dissipation.
Modulation frequency: modulable.
Working characteristics: can work continuously.
Surface treatment: blue / green.
Shell material: aviation aluminum.
Circuit control: step-down constant current.
Reverse protection: with automatic identification of positive and negative poles.
Operating voltage: DC=12V.
Working current: 100mW < I < 1.7A.
Warm-up time: none.
Working temperature:-10 ℃ ~ + 40 ℃.
Storage temperature:-10 ℃ ~ + 40 ℃.
Structural features: laser tube + lens + heat dissipation shell.
Note: the power supply is external.
Package:

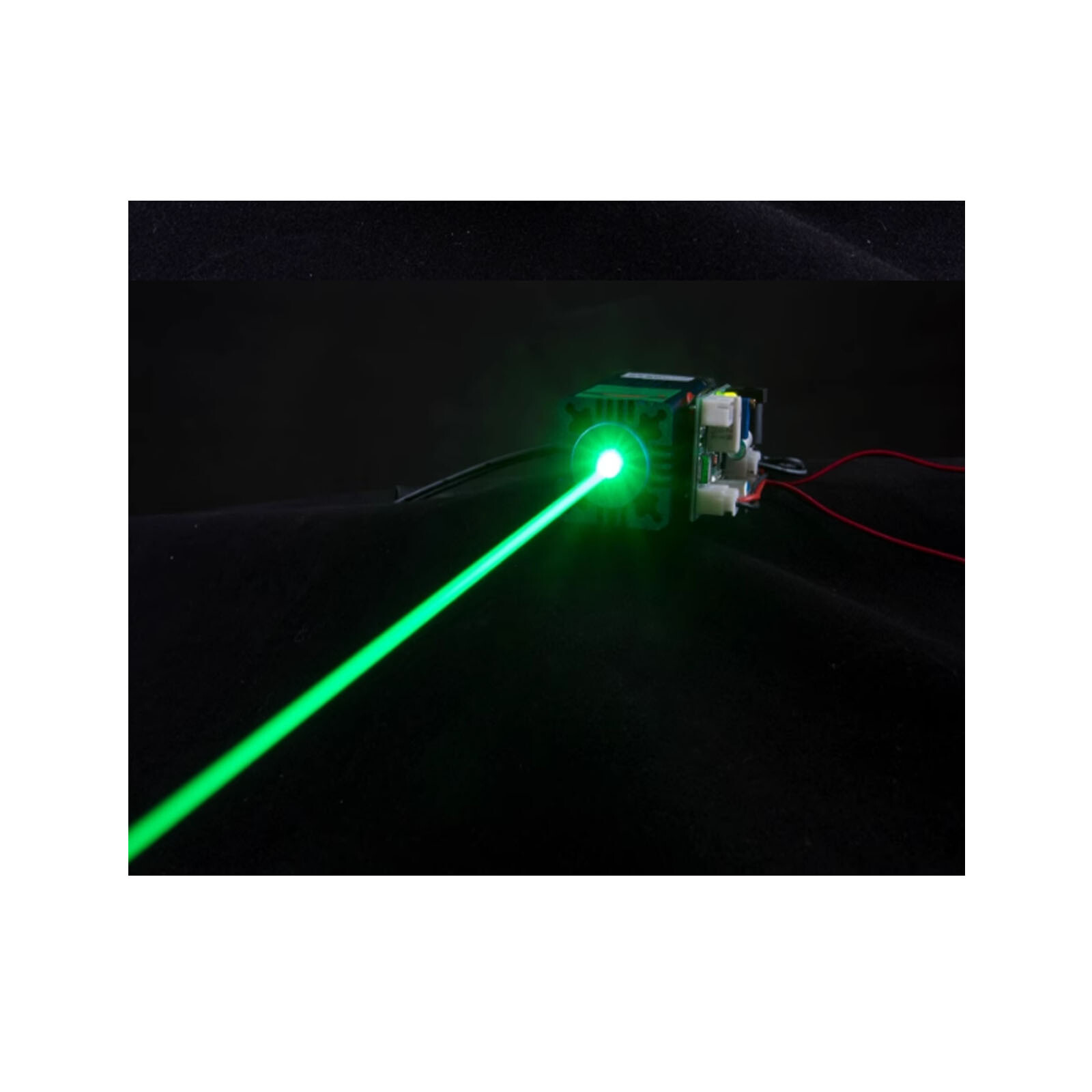

1pcs 520/525nm Green Laser Module
