Product descriptionFT5330M RC servos are designed for remotely operating model vehicles,such as cars, airplanes and robots.It provides the functionality of a light weight standard-sized servo, HV high torque, waterproof, sensitive and responsive.It is tailored for RC hobbyist to provide different experience and delight.Electrical Specification：Operating voltage range: 4-8.4VOperating speed ( 6V ): 0.238sec/60°(42RPM) Operating speed ( 7.4V ): 0.192sec/60°(52RPM) Stall torque ( 6V ): 28.8kg/cmStall torque ( 7.4V ): 35.5kg/cmRunning current no load ( 6V ): 150mARunning current no load ( 7.4V ): 180mA Stall current at locked ( 6V ): 3.2AStall current at locked ( 7.4V ): 3.9A Idle current (at stopped): 6mARated torgue ( 6V ): 9.5kg.cmRated torgue (7.4V ): 11.8k

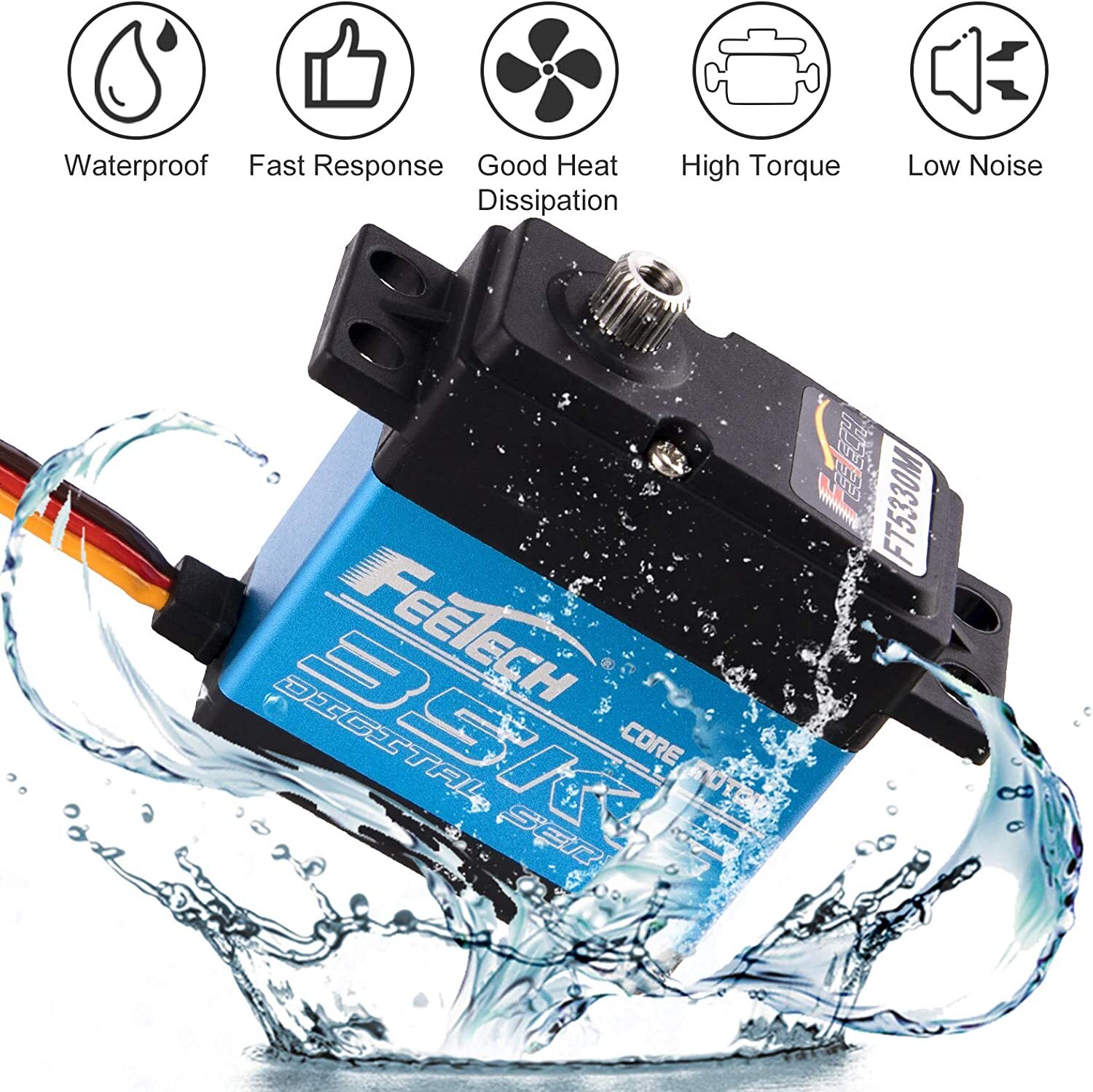

35KG Waterproof Digital Servo Metal Gear HIGH TORQUE & SPEED for RC Car Boat USA35KG Digital Servo Full Metal Gear High Torque Waterproof with 25T Servo Arm for RC Car Robot Control Angle 180 FT5330MUSA STOCK! Fast delivery, Fast received!!!
- [New Model]: FT5330M 35kg waterproof digital servo. Can be widely used for robots, mechanical arms, climbing cars, remote control boat, remote control aircraf etc.
- [Large Torque]: Maximum torque can up to 35kg.cm (7.4V)
- [High Performance]: Equipped with high precision potentiometers and high-resolution digital chip, ensure stable performance, fast response, strong anti-interference ability, low noise, fast heat dissipation.
- [High Quality]: Waterproof rubber seals screws, made of first-grade material ensure the longevity of the products. High-precision metal gear with hard anodizing for better accuracy and longer service life. CNC aluminium middle shell enhances heat dissipation and ensures the servo motor can work well.
- [High Rotation]: 180 degree rotation. Controllable angle range from 0 to 180 degrees, excellent linearity, precision control. Can be rotated within 360 degrees when power off, perfect for robot joint activities.
Product description FT5330M RC servos are designed for remotely operating model vehicles,such as cars, airplanes and robots.
It provides the functionality of a light weight standard-sized servo, HV high torque, waterproof, sensitive and responsive.
It is tailored for RC hobbyist to provide different experience and delight.Electrical voltage range: 4-8.4V
Operating speed ( 6V ): 0.238sec/60°(42RPM)
Operating speed ( 7.4V ): 0.192sec/60°(52RPM)
Stall torque ( 6V ): 28.8kg/cm
Stall torque ( 7.4V ): 35.5kg/cm
Running current no load ( 6V ): 150mA
Running current no load ( 7.4V ): 180mA
Stall current at locked ( 6V ): 3.2A
Stall current at locked ( 7.4V ): 3.9A
Idle current (at stopped): 6mA
Rated torgue ( 6V ): 9.5kg.cm
Rated torgue (7.4V ): 11.8kg.cm
Rated current ( 6V ): 1000mA
Rated current ( 7.4V ): 1200mA Control Specification:
Control System: PWM (Pulse width modification)
Pulse width range: 500-2500μsec
Neutral position: 1500μsec
Running degree: 180° (when 500-2500μsec)
Dead band width: direction: Counterclockwise (when 1500-2500μsec)Product Specification:
Size: 40 * 20 * 38.5mm
Weight: 67gPackage Including
1/2/3/4/6/8/12/16/32pcs * FT5330M 35kg Digital Servo
1/2/3/4/6/8/12/16/32pcs * 25T Adjustable metal servo arm
1/2/3/4/6/8/12/16/32pcs * Accessories set as shown ShippingresponsePaymentAbout usContact usShipping
