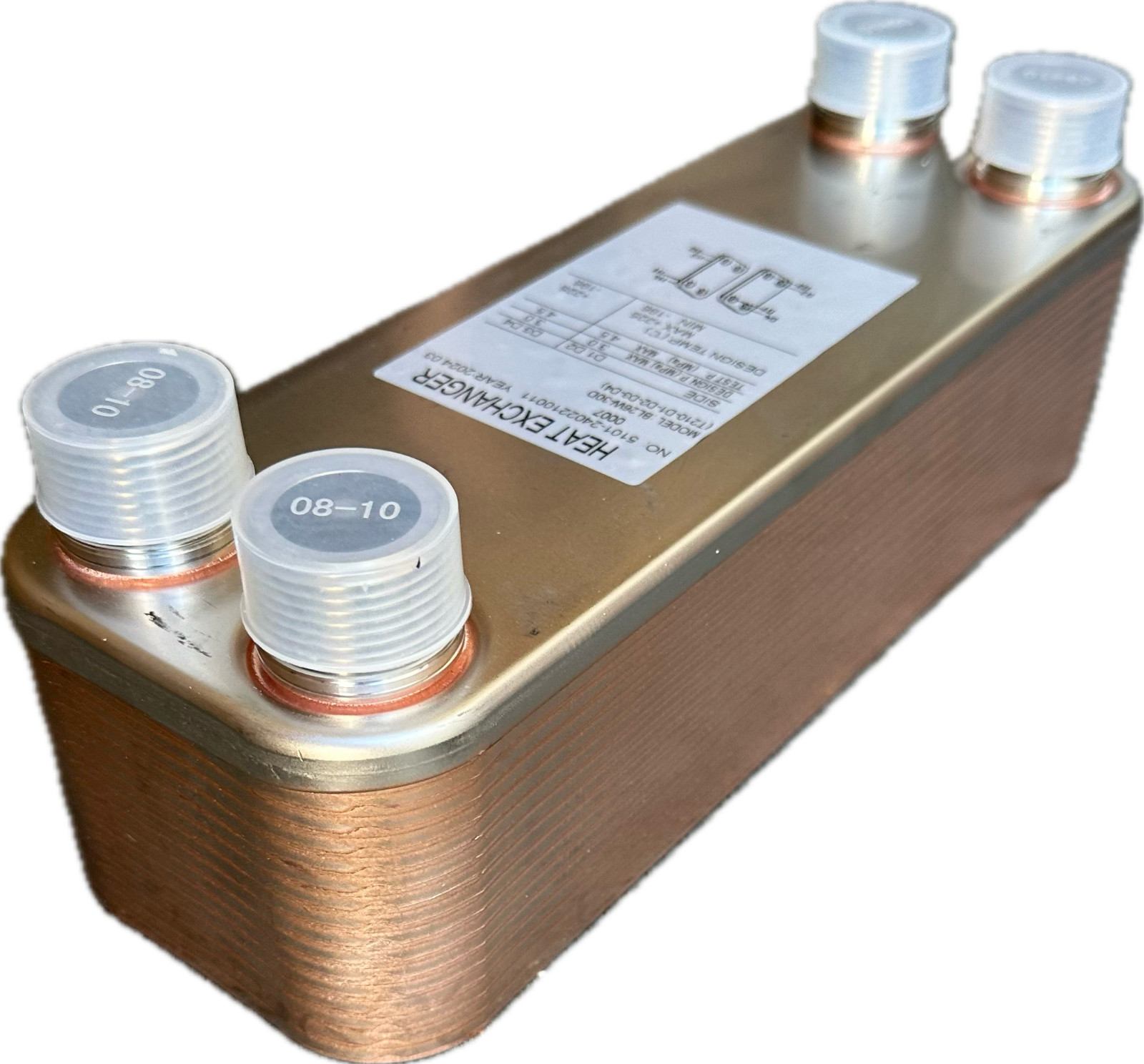

30-Plate 4-1/4\"x12\" Brazed Plate Heat Exchanger, 1\" MPT Ports, 316L Stainless SteelFor use with outdoor wood furnaces/boilers, radiant floor heating projects, snowmelt systems, swimming pools, domestic water applications, solar systems, oil cooling and others.Technical Specifications:
Type: Brazed Plate Heat Exchanger
Plate & Outlets Material: AISI 316L Stainless Steel
Brazing Material: 99.9% pure copper
Plate Dimensions: 12\" long x 4 1/4\" wide x 3 1/4 heightWeight 10 lbs
Inlet/Outlet sizes: 1\" Male NPT (MPT) threaded, U.S. standard threads
Min. operating temperature: -256 F
Max. operating temperature: 437 F
Max. design pressure: 435 psigApplications:
- Outdoor wood furnaces/boilers
- Radiant Floor Heating
- Plumbing Systems
- Snowmelt Systems
- Swimming Pools
- HVAC and refrigeration systems
- Solar heating
- Other liquid to liquid heat transfer applications
Features:
- \"Herring bone\" plate pattern increases heat transfer area and improves efficiency.
- Compact design allows for more flexibility in installation.
- Heavy-gauge top and bottom plates protect the unit from corrosion and accidental installaton is recommended to minimize sediment build-up and reduce maintenance.
For any type of project, installing a Y-strainer at the heat exchanger inlet is recommended to reduce fouling and extend the lifespan of the unit.
Connect the pipes in a manner where liquids move in a counter-flow direction -this will maximize the heat transfer.
