INCLUDES:

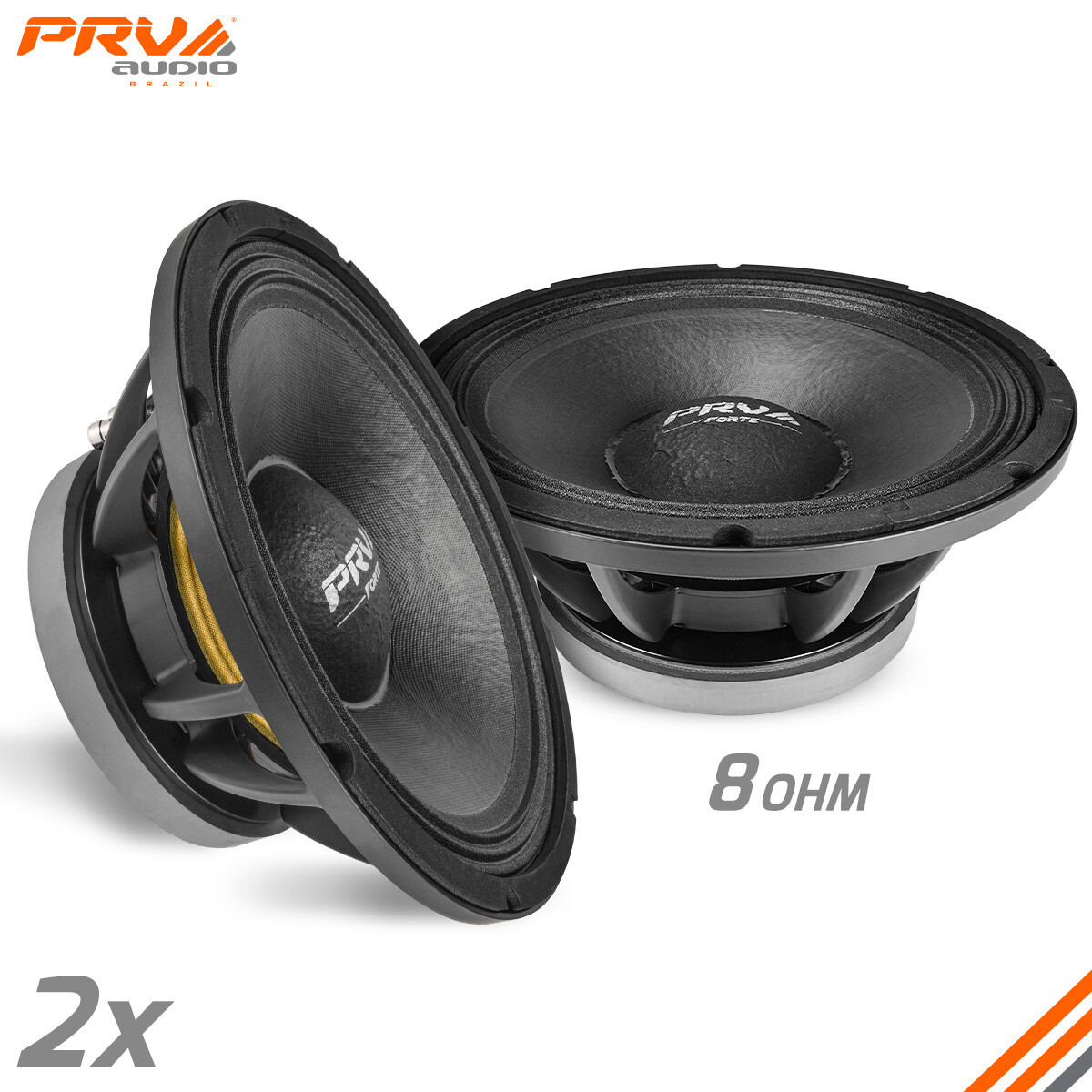

2x12MB1000FT12" Midbass Loudspeaker - 2000 Watts package - 1000 Watts each speaker
FEATURES:
For high output speaker systems, PRV Audio’s 12MB1000FT mid bass is an excellent option capable of amazing performance. A great new addition to the Forte Series, where more power handling and less distortion on mid low mid bass frequencies is the key.
All this attention to detail in the 12MB1000FT makes it one impressive driver. With 97.5 dB efficiency and 1000 watts of continuous program power (RMS), this mid bass is ideally suited to be used as a stage monitor, or in auditorium, touring and outdoor systems. Also, its smooth response from 70 to 3,200 Hz makes it perfect for 2 or 3-way designs.
Highlights
- 3″ Inside/Out aluminum voice coil wound on fiberglass former for hi-temp performance, 8 ohms
- Ventilated voice coil gap reduces power compression
- High Xmax for more Midbass output
- 1,000 watts continuous program power rating makes high acoustical output
- Excellent performance in 2-way or 3-way systems
- Weather-resistant paper cone and dust cap
- Also Available at
4 Ohm.
A rigid cast aluminum frame with narrow spokes to minimize reflections back into the cone. In addition, the frame includes force cooling system openings which allows airflow to cool the voice coil.
To drive the voice coil, a large ferrite magnet with a very precise machined top and bottom plate has been used. The additional dual forced vent in the back plate of the coil allows this driver to handle up to 1000 watts RMS without issue.
Features a special high strength pulp composition paper cone designed to achieve the best possible linearity within the middle frequency range, which, together with a protective cone treatment dedicated to enhancing the dampening properties of the moving assembly, considerably improves its smooth frequency response.
The voice coil is wound on a 3″ glass fiber with aluminum wire, keeping weight to a minimum for an incredibly quick transient response. Engineered with 19 mm of winding depth, this inside/outside voice coil provides excellent thermal and mechanical durability.
GENERAL SPECIFICATIONSNominal Diameter12″ (310 mm)Nominal impedance8 OhmNominal Power Handling*500 WattsContinuous Program Power (RMS)**1000 WattsMax Peak Power***2000 WattsSensitivity 2.83V at 1m97.5 dBRecommended Hi Pass Crossover
For Full Power Handling110 Hz
12db Per Octave CrossoverFrequency Response70 – 3,200 HzVoice Coil Diameter3″ (76 mm)Voice Coil WireAluminumVoice Coil Winding Depth19.0 mmFormer MaterialGlass FiberMagnetic Gap Depth10.5 mmFrame MaterialDie Cast Aluminum
THIELE-SMALL PARAMETERSEquivalent VolumeVas74.57 lExcursion (mathematical)***Xmax6.87 mmFree Air ResonanceFs52.72 HzMechanical FactorQms13.35Electrical FactorQes0.38Total FactorQts0.37Cone AreaSd573 cm²Mechanical MassMms55.94 gBl FactorBl16.54 TmDc ResistanceRe5.7 OhmsInductanceLe1.00 mH at 1 kHzMechanical Mass Without AirMmd48.19 gMechanical ComplianceCms0.162 mm/N
EXTRA INFOOverall Diameter12.40” (315 mm)Front Mount Baffle Cutout11.10” (282 mm)Mounting Depth5.20”(132 mm)Overall Depth5.76”(146.5 mm)Net Weight16.8 Lbs (7.62 kg)Shipping Weight18.2 Lbs (8.25 kg)Carton Dimensions W x L x H13.5”x 13.5” x 7.0”
(343 x 343 x 178mm)
