2x DS18 PRO-HY69.4B 6x9\" Speakers + 2x PRO-HY6.4B 6.5\" 2-Way Loudspeaker Set For Sale

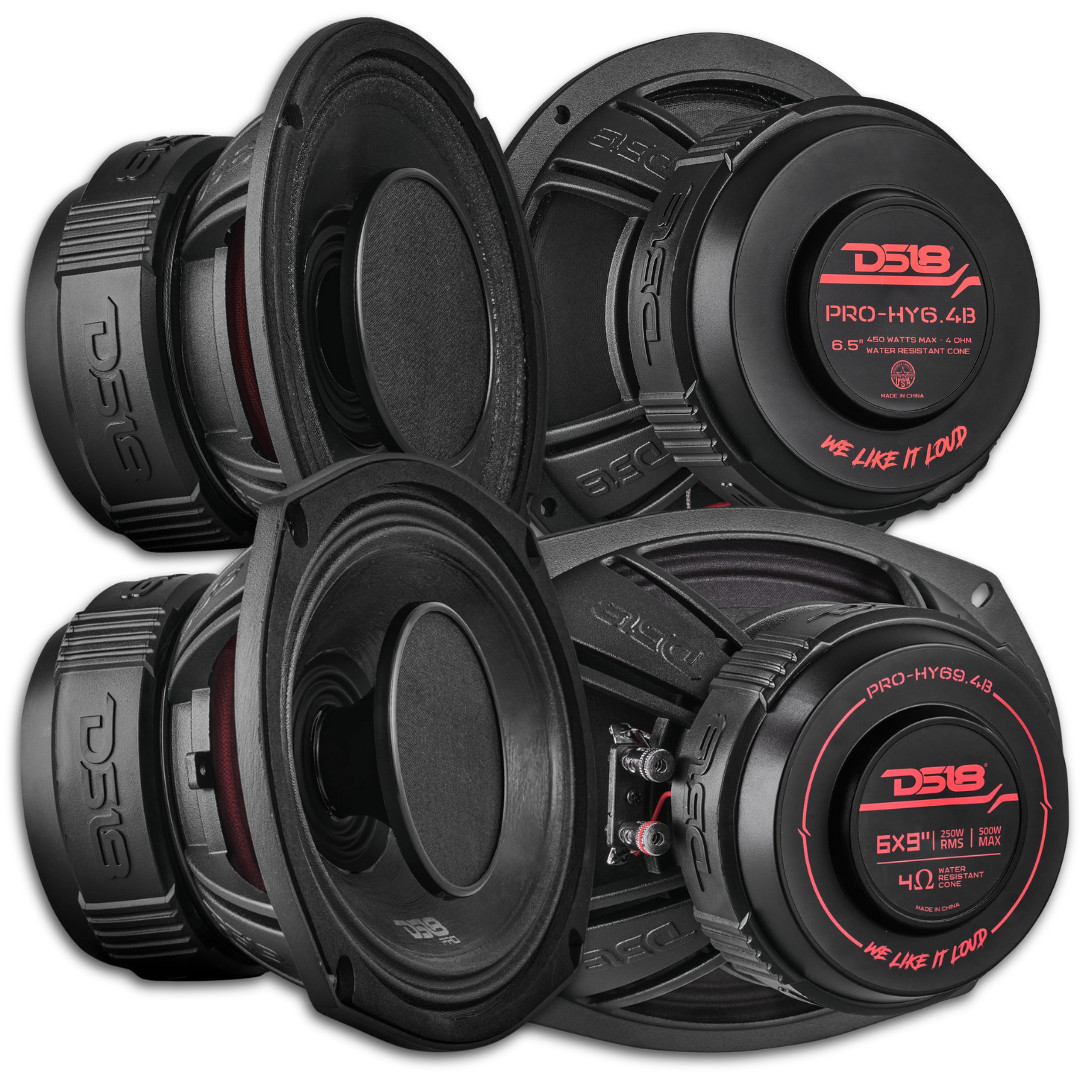

2x DS18 PRO-HY69.4B 6x9\" Speakers + 2x PRO-HY6.4B 6.5\" 2-Way Loudspeaker Set

Product Description


THIS PACKAGE INCLUDES:


• 2x DS18 PRO-HY69.4B 6x9\" 4-OHM 2-WAY FULL-RANGE SPEAKERS
• 2x DS18 PRO-HY6.4B 6.5\" 4-OHM 2-WAY FULL-RANGE SPEAKERS

PRO-HY6.4B Highlights:


• Hybrid design combines high wattage midrange and driver together in one beautiful frame.

• High volume 6.5 and 1\" driver rated at 225w RMS and 450max for crazy loud volume in a full range of frequencies.

• Water resistant cone to help battle elements and moisture making them great for motorcycles, boats, and regular vehicles too!

PRO-HY6.4B Specifications:


• Nominal Diameter 6.5”

• Nominal Impedance 4 OHMS

• RMS Power Handling 225W

• MAX Power Handling 450W

• Sensitivity (1w/1m) 96dB

• Frequency Response 100Hz-20KHz

• Recommended Hi Pass Crossover 120 Hz

• Number of Ways 2

PRO-HY6.4B Midrange Specifications:


• Voice Coil Diameter 1.5” / 38.6 mm

• Voice Coil Former Material Glass Fiber

• Winding Material CCAW

• Cone Material Water Resistant Paper

• Surround Material Cloth

• Basket Material Aluminum

• Basket Color/Finish Glossy Red

• Magnet Material Ferrite

• Magnet Weight 27 oz

• Displacement volume 0.047L

PRO-HY6.4B Thiele Small Parameters:


• Equivalent Volume Vas 2.211L

• Excursion (one way) Xmax 9.2 mm

• Free Air Resonance     FS 199Hz

• Mechanical Factor Qms 5.96

• Electrical Factor Qes 1.524

• Total Factor Qts 1.214

• Mechanical Mass Mms 8.654g

• Mechanical Compliance Cms 73.792 mm/N

• BL Factor     BL 4.769

• Voice Coil Inductance Le 4.22mH

• Cone Area Sd 145.26 Cm2

• DC Resistance Re 3.2 ohms

• Mechanical Mass w/o Air Mmd 6.7g

PRO-HY6.4B Driver Specifications:


• Voice Coil Diameter 1” / 25.4 mm

• Voice Coil Former Material Kapton

• Winding Material CCAW

• Diaphragm Material Titanium

• Magnet Material Neodymium

• Horn Diameter 3.26\"

PRO-HY6.4B Measurements:


• Overall Diameter 6.85\" / 174 mm

• Overall Depth 4.28\" / 108.8 mm

• Front Mount Baffle Cutout 5.91\" / 150 mm

• Mounting Depth 3.92\" / 99.5 mm

• Motor Diameter 4.65\" / 118 mm

PRO-HY69.4B Specifications:


• Nominal Diameter: 6x9\" / 152 x 228mm

• Nominal Impedance: 4 Ohm

• RMS Power Handling: 250W

• MAX Power Handling: 500W

• Sensitivity (1w/1m): 97dB

• Frequency Response: 50Hz - 20Khz

• Recommended HI Pass Crossover: 80Hz

• Number of ways: 2 ways

PRO-HY69.4B Woofer Specification:


• Voice Coil Diameter: 1.5\"/ 38.6mm

• Voice Coil Former Material: Glass Fiber

• Winding Material: CCAW

• Cone Material: Water Resistant Paper (IPx5)

• Surround Material: Cloth

• Basket Material: Aluminum

• Basket Color/Finish: Matte Black

• Magnet Material: Ferrite

• Magnet Weight: 27 Oz

• Displacement Volume: 0.051L / 0.0018ft3

PRO-HY69.4B Thiele Small Parameters:


• Equivalent Volume Vas: 14.84L / 0.52ft3

• Excursion (one way) Xmax: 9.2mm

• Free Air Resonance Fs: 87Hz

• Mechanical Factor Qms: 3.629

• Electrical Factor Qes: 0.661

• Total Factor Qts: 0.559

• Mechanical Mass Mms: 14.264g

• Mechanical Compliance Cms: 0.236 mm/N

• BL Factor BL: 6.135

• Voice Coil Inductance Le: 4.22mH

• Cone Area Sd: 210.48 Cm2

• DC Resistance Re: 3.2 ohms

• Mechanical Mass w/o air Mmd: 12.509g

PRO-HY69.4B Driver Specifications:


• Voice Coil Diameter: 1\" / 25.4mm

• Voice Coil Former Material: Kapton

• Winding Material: CCAW

• Diaphragm Material: Titanium

• Magnet Material: Neodymium

• Horn Diameter: 3.26\" / 83mm

PRO-HY69.4B Dimensions:


• Overall Diameter: 9.45 X 6.57\" / 240 X 167mm

• Overall Depth: 4.54\" / 115.4mm

• Front Mount Baffle Cutout: 8.74 X 5.98\" / 222 X 152mm

• Mounting Depth: 4.21\" / 107 mm

• Motor Diameter: 4.61\" / 117mm
