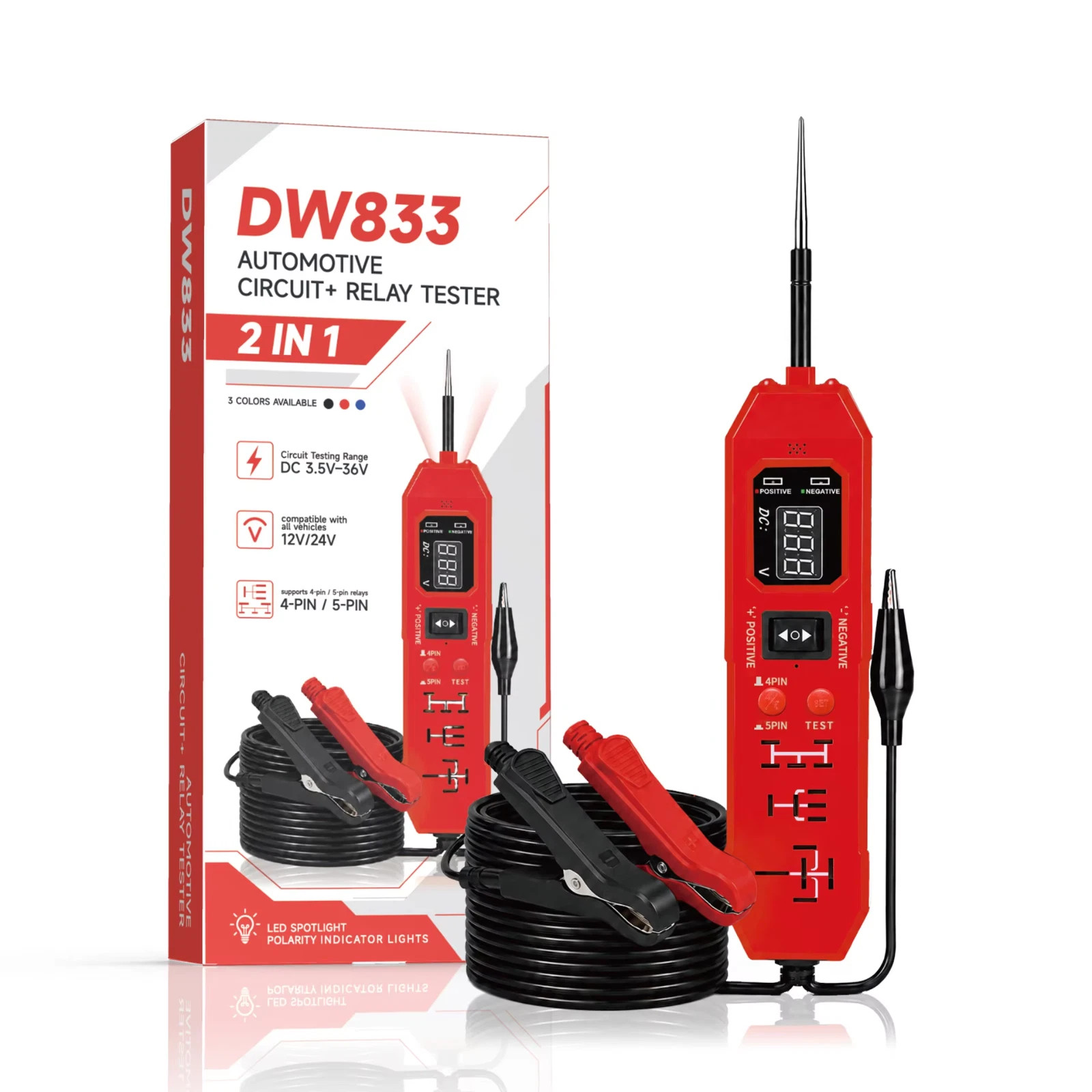

DW833 Automotive Relay & Circuit Dual-Function Tester
2-in-1 Professional Automotive Circuit Detector + 12V/24V Relay Tester with Digital Voltage Display
Why Choose DW833? The DW833 combines a powerful automotive circuit tester and a universal relay tester into one professional-grade diagnostic tool. Whether you're testing voltage, polarity, continuity, short circuits, or diagnosing faulty relays on passenger cars, trucks, or commercial vehicles, the DW833 delivers fast, accurate results with a clear digital display and built-in LED work light.
Features
2-in-1 Versatility: Functions as both an automotive circuit tester (3.5V–36V DC) and a 12V/24V relay tester in one compact device.
Universal Compatibility: Works with all 12V passenger cars and 24V trucks, buses, RVs, and construction machinery.
4-Pin & 5-Pin Relay Testing: Quickly diagnose relay coil burnout, contact adhesion, and internal open circuits for standard automotive relays.
Clear Digital Display: High-definition screen shows real-time DC voltage readings at a glance—no guesswork.
Positive/Negative Detection: Built-in red/green indicator lights instantly identify polarity and ground connections.
Active Output Testing: Drive and test light bulbs, brake lights, turn signals, solenoid valves, fuel injectors, and small motors directly.
Bright LED Work Light: Dual built-in LED headlights illuminate dark engine bays, dashboards, and cabin spaces.
One-Click Polarity Switch: Instantly switch between positive and negative output for safe component testing.
Durable & Portable: Designed for professional automotive repair shops, mechanics, electricians, and DIY enthusiasts.
How to Use
-Connect the red battery clamp to the positive (+) terminal and the black clamp to the negative (-) terminal of the vehicle battery.
-The screen will light up in standby mode, indicating full power supply.
-For circuit testing: touch the metal probe tip to the wire, terminal, or harness to read real-time voltage and polarity.
-For relay testing: insert the relay into the dedicated socket, select 4-pin or 5-pin mode, and press the start button. The device will automatically cycle the relay.
-Use the positive/negative output switch to safely drive external components during active output testing.
Relay Test Result Guide
-Relay Normal: Audible magnetic click, indicator light cycles on/off steadily in a repeating pattern = relay coil and contacts are good.
-Relay Damaged / Coil Burnt: No response or sound = internal open circuit or coil burnout; replace relay.
-Contact Adhesion: Relay pulls in but does not release = welded contacts; replace relay.
-Intermittent Poor Contact: Irregular cycling or flickering indicator = contact ablation/aging; replace relay.
Important Safety Notes & Precautions
Read Before Use:
This device is designed for DC 3.5V–36V automotive low-voltage circuits only. Do NOT use on household 220V/110V AC power to avoid electric shock or equipment damage.
Never reverse-connect the red and black battery clamps. Reverse polarity can damage the internal circuitry.
Always ensure the vehicle ignition is OFF and keys are removed before testing for safe repair.
Confirm whether the relay is 4-pin or 5-pin before inserting it into the test socket. Selecting the wrong mode may cause incorrect diagnosis.
Do not use the device in rainy or wet conditions; it is susceptible to water ingress and moisture damage.
Avoid contact between the probe and high-temperature engine components or moving belts to prevent burns or entanglement.
Do not disassemble or modify the device; unauthorized repair voids the warranty.
When testing relays, the relay must be retested using the correct 4-pin or 5-pin mode for accurate judgment.
Perfect For: Professional auto repair shops, mobile mechanics, electricians, fleet maintenance, DIY car enthusiasts, and anyone needing fast, reliable diagnostics for 12V/24V automotive electrical systems and relays.
Order your DW833 today and take the guesswork out of automotive electrical and relay diagnostics!
