Electrical Specification：Operating voltage range: 4-8.4VOperating speed ( 6V ): 0.238sec/60°(42RPM) Operating speed ( 7.4V ): 0.192sec/60°(52RPM) Stall torque ( 6V ): 28.8kg/cmStall torque ( 7.4V ): 35.5kg/cmRunning current no load ( 6V ): 150mARunning current no load ( 7.4V ): 180mA Stall current at locked ( 6V ): 3.2AStall current at locked ( 7.4V ): 3.9A Idle current (at stopped): 6mARated torgue ( 6V ): 9.5kg.cmRated torgue (7.4V ): 11.8kg.cm Rated current ( 6V ): 1000mARated current ( 7.4V ): 1200mA Control Specification:Control System: PWM (Pulse width modification)Pulse width range: 500-2500μsecNeutral position: 1500μsecRunning degree: 180° (when 500-2500μsec)Dead band width: ≤4μsecRotating direction: Counterclockwise (when 1500-2500μsec)
Store category
Sign Up Now ! You may also like

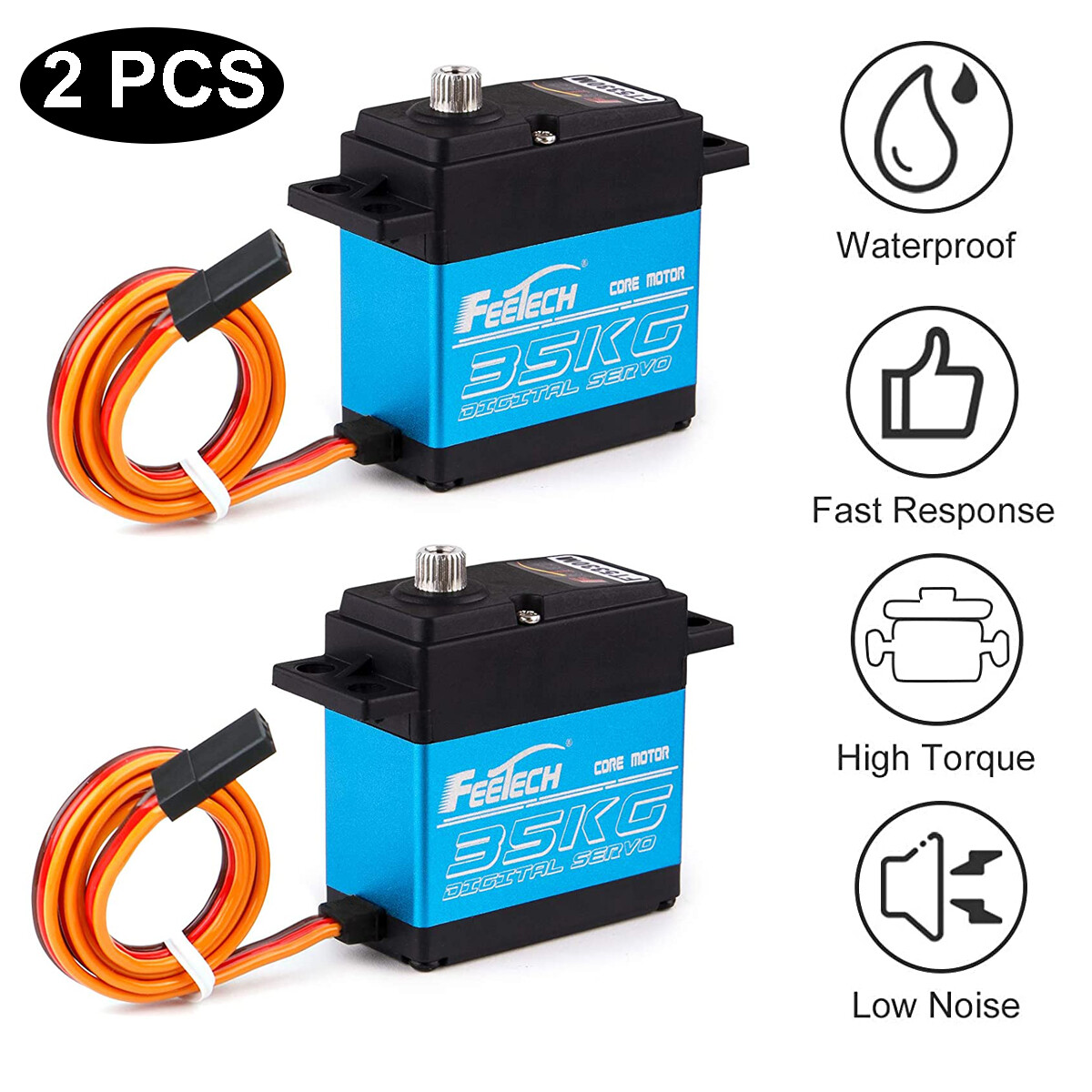

2Pcs 35KG Digital Servo Full Metal Gear High Torque Waterproof 25T Servo Arm US Product Description BrandUnbrandedMPNDoes Not ApplyOperating voltage range4-8.4VTypeDigital ServoOperating speed ( 6V )0.238sec/60°(42RPM)Operating speed ( 7.4V )0.192sec/60°(52RPM)Stall torque ( 6V )28.8kg/cmStall torque ( 7.4V )35.5kg/cmRunning current no load ( 6V )150mARunning current no load ( 7.4V )180mAStall current at locked ( 6V )3.2AStall current at locked ( 7.4V )3.9AIdle current (at stopped)6mARated torgue ( 6V )9.5kg.cmRated torgue (7.4V )11.8kg.cmRated current ( 6V )1000mARated current ( 7.4V )1200mAControl SystemPWM (Pulse width modification)Pulse width range500-2500μsecNeutral position1500μsecRunning degree180° (when 500-2500μsec)Dead band width≤4μsecRotating directionCounterclockwise (when 1500-2500μsec)Compatible BrandUniversalColorBlueCompatible Scale1:4, 1:5, 1:6, 1:8, 1:10, 1:12, 1:14, 1:15, 1:16, 1:18, 1:20, 1:24, 1:26, 1:27, 1:28, 1:32, 1:36, 1:48, 1:50, 1:64FT5330M RC servos are designed for remotely operating model vehicles,such as cars, airplanes and robots.
It provides the functionality of a light weight standard-sized servo, HV high torque, waterproof, sensitive and responsive.
It is tailored for RC hobbyist to provide different experience and delight.[New Model]: FT5330M 35kg waterproof digital servo. Can be widely used for robots, mechanical arms, climbing cars, remote control boat, remote control aircraf etc.
[Large Torque]: Maximum torque can up to 35kg.cm (7.4V)
[High Performance]: Equipped with high precision potentiometers and high-resolution digital chip, ensure stable performance, fast response, strong anti-interference ability, low noise, fast heat dissipation.
[High Quality]: Waterproof rubber seals screws, made of first-grade material ensure the longevity of the products. High-precision metal gear with hard anodizing for better accuracy and longer service life. CNC aluminium middle shell enhances heat dissipation and ensures the servo motor can work well.
[High Rotation]: 180 degree rotation. Controllable angle range from 0 to 180 degrees, excellent linearity, precision control. Can be rotated within 360 degrees when power off, perfect for robot joint activities.Electrical Specification：
Operating voltage range: 4-8.4V
Operating speed ( 6V ): 0.238sec/60°(42RPM)
Operating speed ( 7.4V ): 0.192sec/60°(52RPM)
Stall torque ( 6V ): 28.8kg/cm
Stall torque ( 7.4V ): 35.5kg/cm
Running current no load ( 6V ): 150mA
Running current no load ( 7.4V ): 180mA
Stall current at locked ( 6V ): 3.2A
Stall current at locked ( 7.4V ): 3.9A
Idle current (at stopped): 6mA
Rated torgue ( 6V ): 9.5kg.cm
Rated torgue (7.4V ): 11.8kg.cm
Rated current ( 6V ): 1000mA
Rated current ( 7.4V ): 1200mA
Control Specification:
Control System: PWM (Pulse width modification)
Pulse width range: 500-2500μsec
Neutral position: 1500μsec
Running degree: 180° (when 500-2500μsec)
Dead band width: ≤4μsec
Rotating direction: Counterclockwise (when 1500-2500μsec)
Product Specification:
Size: 40 * 20 * 38.5mm
Weight: 67gPacking list:2* FT5330M 35kg Digital Servo
2* 25T Adjustable metal servo arm
2* Accessories set as shown ABout US About Warranty & Return Payment Shipment About response ABout US
