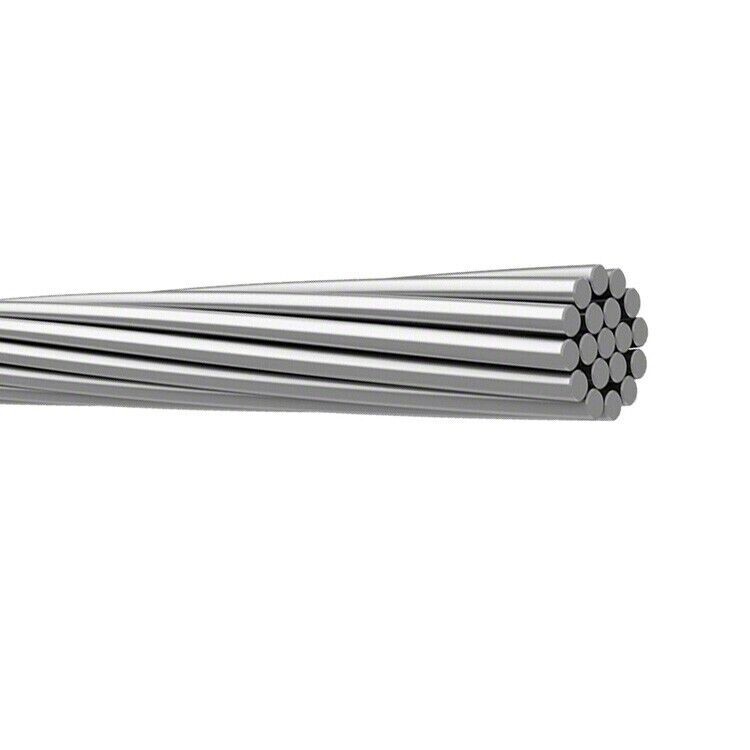

250' Cosmos 477 MCM AAC All Aluminum Conductor Click Thumbnails to EnlargeAPPLICATION
• AAC – All Aluminum Conductor is for stranded 1350 aluminum conductors and is primarily used for overhead transmission and distribution services, where strength of standard ACSR cables is not required. Class AA for bare conductors used in overhead lines. Class A for conductors to be covered with weather resistant materials and for bare conductors where greater flexibility is required.
CONDUCTOR
• Concentric lay stranded conductor consisting of Aluminum Alloy 1350-H19 wires.
STANDARDS
• ASTM B-230 Aluminum 1350-H19 for Electrical Purposes
• ASTM B-231 Concentric-Lay-Stranded Aluminum 1350 conductors
• Requirements of the National Electrical Code
DISCLAIMER
• Picture May Not Represent Actual Cable and Is Only Used As A Representation Please Refer to The Specifications For Product Accuracy.
PRODUCT SPECIFICATIONSSize AWG 477 MCMNumber of Strands 19Class AAOverall Diameter (inches) 0.793Rated Breaking Strength (lbs) 8360Resistance DC @ 20ºC 0.036Resistance AC @ 75ºC 0.0445Ampacity 639 AmpsWeight (lbs/1000ft) 445CUT TO LENGTH
Looking for Custom Lengths? Please feel free to contact us, We can do all cut to length.
OTHER VALUE ADDED SERVICES
• Expedited Shipping
•Cut to Length Paralleling
•Color Striping & Dyeing
•Reel Lagging
•Special Labeling & Packages
