24VDC PLC I/O Training Panel DIY Kit - 6 Inputs / 6 Outputs

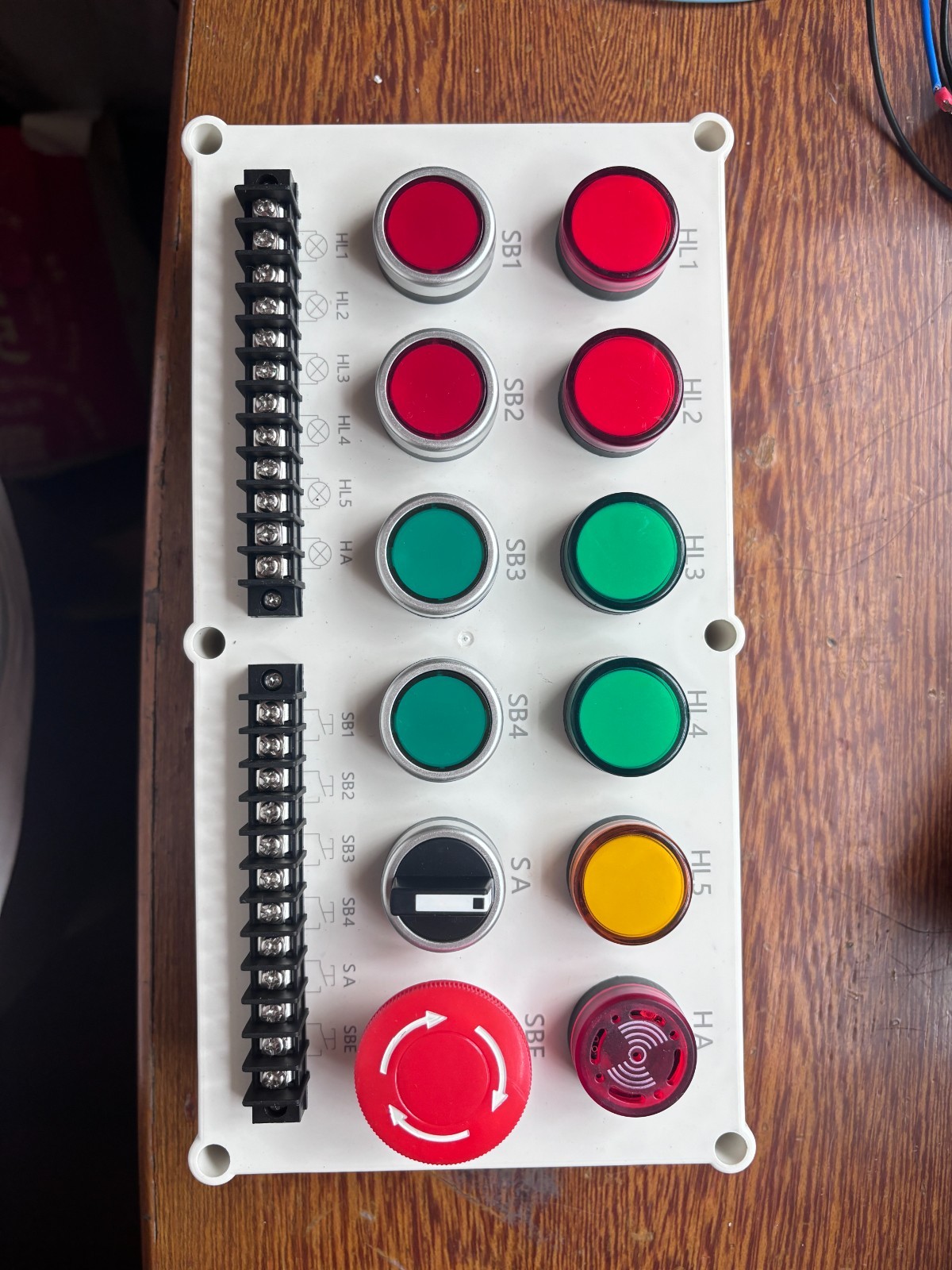

This listing is for ONE PLC I/O training panel DIY kit, as shown in the photos.
The panel components are mounted in the enclosure. Internal wiring and external PLC connections must be completed by the buyer. This kit is designed for PLC learning, digital I/O testing and basic automation training.
INPUT DEVICES:
- SB1 and SB2: red push buttons- SB3 and SB4: green push buttons- SA: selector switch- SBE: emergency-stop style push button
OUTPUT DEVICES:
- HL1 and HL2: red indicator lamps- HL3 and HL4: green indicator lamps- HL5: amber indicator lamp- HA: 24VDC buzzer
FEATURES:
- 6 digital input devices- 5 indicator lamps and 1 buzzer output- Screw terminal blocks for external PLC wiring- Components mounted in a plastic enclosure- Red hookup wire and mounting screws included- Wiring diagram included- Designed for 24VDC applications
IMPORTANT:
- Internal wiring must be completed by the buyer.- PLC controller is NOT included.- 24VDC power supply is NOT included.- Programming cable and software are NOT included.- External PLC connection wires are NOT included.- This product is a PLC training interface, not a PLC or PLC expansion module.- Check the sourcing or sinking configuration of your PLC inputs and outputs before wiring.- The emergency-stop style push button is for training input simulation only. It is NOT a safety-rated emergency power isolation device.- Do not connect AC mains voltage directly to this panel.- Wiring should be completed by a person with appropriate electrical knowledge.
PACKAGE INCLUDES:
- 1 x PLC I/O training panel with mounted components- 1 x Red hookup wire- Mounting screws- 1 x Wiring diagram
Item location: China
