Product Overview

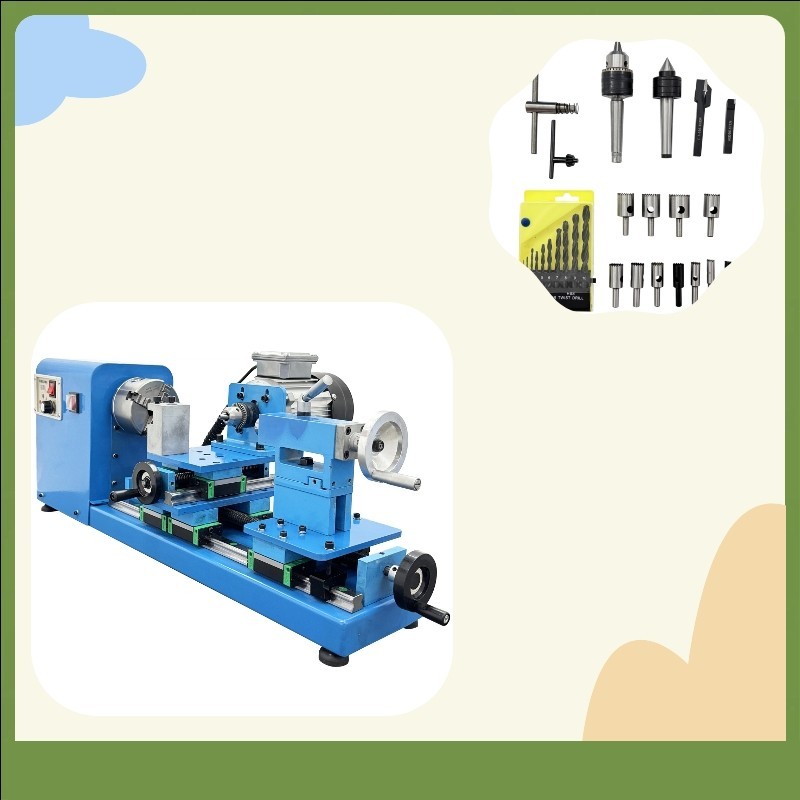

This 750W+450W Dual Motor Wood Bead Lathe is a professional-grade multifunctional woodworking machine designed for precision turning of beads, bowls, spindles, and other small wooden crafts. Featuring a powerful dual-brushless-motor configuration, the main 750W motor drives a 100mm 4-jaw chuck with infinitely variable speed from 0 to 1600 RPM, while the independent 450W auxiliary motor powers a chuck-mounted tool for specialized bead-forming and drilling operations.
The machine is built on a robust blue-painted cast iron bed with precision linear guideways, offering exceptional rigidity and smooth feed motion. With a maximum workpiece diameter of 60mm, 250mm effective processing length, and MT2 tailstock taper, this lathe is ideal for hobbyists, craft workshops, and small-scale woodworking businesses producing prayer beads, ornamental bowls, pens, and custom wood turnings.
750W Main + 450W Aux Brushless Motors 100mm 4-Jaw Chuck MT2 Tailstock 0-1600 RPM Technical Specifications Electrical & Motor Specifications Power Supply AC 220V/60Hz Single Phase Main Motor Power 750W Brushless Motor Auxiliary Motor Power 450W Brushless Motor Main Motor Speed 0-1600 r/min (Stepless) Auxiliary Motor Speed 2800 r/min Chuck & Workpiece Specifications Chuck Type 100mm (4\") 4-Jaw Self-Centering Chuck Max. Chuck Capacity 100mm (3.94\") Spindle Bore 32mm (1.26\") Max. Turning Diameter 60mm (2.36\") Chuck to Tailstock Distance 300mm (11.81\") Effective Processing Length 250mm (9.84\") Chuck to Tool Max Distance 230mm (9.06\") Tailstock & Guide Specifications Tailstock Stroke 60mm (2.36\") Tailstock Taper MT2 (Morse Taper No.2) Guide Rail Linear Guideway (HG20 Type) Dimensions & Weight Machine Dimensions 87 × 44 × 33 cm (34.2\" × 17.3\" × 13.0\") Package Dimensions 88 × 31 × 43 cm (34.6\" × 12.2\" × 16.9\") Net / Gross Weight 43 kg (94.8 lb) / 52 kg (114.6 lb) Product Features & Advantages Dual Brushless Motor Design
Features a 750W main brushless motor driving the spindle chuck and an independent 450W auxiliary brushless motor for the tool chuck, enabling simultaneous turning and specialized operations. Brushless motors provide higher torque, longer service life, quieter operation, and more precise speed control compared to traditional brushed motors.
100mm 4-Jaw Self-Centering Chuck
The precision-machined K12-100 4-jaw chuck grips workpieces up to 100mm in diameter with excellent concentricity. Four independent jaws allow versatile clamping of round, square, and irregular stock. Rated for 3500 r/min, well above the machine\'s maximum speed, ensuring safe and secure operation.
Digital RPM Display & Stepless Speed Control
The front control panel features a bright 4-digit digital display showing real-time spindle RPM from 0 to 1600. A large rotary knob provides stepless speed adjustment. Forward/reverse switching and a dedicated emergency stop button are conveniently located for safe, intuitive operation.
Precision Linear Guideways
Both the longitudinal slide and cross slide ride on Hg20-type hardened steel linear guideways with sealed ball-bearing slide blocks. Provides ultra-smooth, low-friction motion with zero play, ensuring precise handwheel-controlled positioning. Green-sealed bearing blocks are protected from wood dust and chips.
Multi-Position Cross Slide
Features multiple pre-drilled mounting holes for flexible tool and accessory positioning. Accommodates the auxiliary motor/tool post, rest supports, and various jigs. Moves smoothly on dual linear rails with handwheel-controlled lead screw feed, enabling complex operations including bead-forming, drilling, grooving, and parting-off.
Precision Tailstock with MT2 Taper
Cast-aluminum tailstock features 60mm travel spindle with Morse Taper No.2 (MT2) bore, accepting standard lathe centers, drill chucks, and MT2-shank accessories. Large handwheel with graduated scale provides precise infeed control, while locking lever secures tailstock at any position along the bed.
Keyless Drill Chuck on Auxiliary Motor
The 450W auxiliary motor is fitted with a precision 1.5-13mm keyless drill chuck, allowing quick tool changes without a chuck key. This secondary spindle can hold drill bits, bead-forming cutters, and small grinding tools for drilling, shaping, and finishing operations.
Heavy-Duty Cast Iron Bed & Frame
Built on a thick-walled cast iron bed painted in a durable blue finish. Cast iron provides superior vibration damping compared to steel or aluminum, resulting in smoother surface finishes and extended tool life. Four adjustable rubber feet provide stable mounting on any workbench surface.
Complete Accessory Kit Included
Ships with comprehensive accessory set: 11-piece bead-forming cutter set (various sizes for round bead profiles), 10-piece HSS twist drill set, MT2 drill chuck arbor, MT2 live center, keyless drill chuck, 4-jaw chuck keys, turning tool bits, and necessary wrenches.
[Dual Motors] 750W main + 450W auxiliary brushless motors for versatile operations.
[4-Jaw Chuck] K12-100 chuck handles round, square, and irregular stock up to 100mm.
[MT2 Tailstock] Standard Morse taper accepts common lathe accessories.
[250mm Length] Effective turning length for beads, bowls, spindles, and pens.
[60mm Diameter] Maximum turning capacity for small to medium workpieces.
[Full Kit] 11 bead cutters, 10 drills, chucks, centers, and tools included.
[Brushless] Longer motor life, quieter operation, better speed control.
Operation Method
1. Setup: Place the lathe on a flat, stable workbench. Connect to AC 220V/60Hz power. Install the 4-jaw chuck onto the main spindle and mount your workpiece. Adjust the tailstock position to support the free end of the workpiece with the live center. Tighten all locking levers before starting.
2. Speed Selection: Turn the speed control knob to set the desired RPM. For rough turning of large stock, use lower speeds (300-600 RPM). For fine finishing and small-diameter work, use higher speeds (800-1600 RPM). The digital display shows the current RPM.
3. Turning Operation: Mount a turning tool in the tool post. Use the cross slide handwheel to advance the tool toward the workpiece. Use the longitudinal slide handwheel to move the tool along the workpiece axis. Take light passes for best surface finish. Always move the tool from larger to smaller diameter.
4. Bead Forming: Install the appropriate bead-forming cutter into the auxiliary motor chuck. Position the cross slide so the cutter aligns with the desired location on the rotating workpiece. Turn on the auxiliary motor and slowly advance the cutter to create the bead profile. Use progressively smaller cutters for detailed profiles.
5. Drilling: Install a drill bit in the auxiliary motor chuck. Position the tailstock or workpiece so the drill aligns with the center point. Start the auxiliary motor and advance the drill slowly. Use cutting fluid for hardwoods. Clear chips frequently to prevent burning.
6. Shutdown: Reduce speed to zero before turning off the power. Wait for the chuck to stop completely before removing the workpiece. Clean chips from the bed and slides after each use. Cover the machine when not in use.
Safety Precautions ⚠ WARNING: Read all safety instructions before use
Rotating machinery can cause severe injury. Always follow safety guidelines.
Personal Protection: Always wear safety goggles, dust mask, and close-fitting clothing. Remove jewelry, ties, and loose items. Long hair must be tied back and secured.
Guarding: Never operate without the tool rest in place. Keep hands away from chuck, cutting tools, and rotating workpiece. Use provided rest supports to steady tools.
Chuck Safety: Ensure workpiece is securely clamped before starting. Check chuck jaws are tight and workpiece cannot slip. Use tailstock center to support long workpieces.
Speed Limits: Do not exceed 1600 RPM. For large or out-of-round workpieces, use lower speeds to prevent vibration and ejection. Always start at lowest speed and increase gradually.
Tool Handling: Keep cutting tools sharp. Dull tools require more force and are more likely to catch or kick back. Hold tools firmly against the rest and advance slowly.
Power Safety: Connect to properly grounded 220V/60Hz circuit. Disconnect power before changing chucks, tools, or performing maintenance. Never leave running unattended.
Work Area: Maintain adequate lighting and clean, uncluttered work area. Remove wood chips regularly. Keep flammable materials away from motor and electrical components.
Emergency Stop: Know location of emergency stop button. Press immediately if any abnormal situation occurs. Do not attempt to stop a rotating chuck by hand.
Maintenance: Lubricate lead screws and slideways regularly. Check belt tension and chuck condition before each use. Replace worn or damaged parts immediately.
Training: This machine is for trained adults only. Do not allow children or untrained persons to operate. Read entire manual before first use.
Package Contents Item Part No. Wood Bead Lathe Main Unit 028382 100mm 4-Jaw Chuck K12-100 Keyless Drill Chuck 1.5-13mm MT2 Live Center Standard MT2 Drill Chuck Arbor Standard Turning Tool Bits 2 Pieces Bead-Forming Cutters 11 Pieces (Various Sizes) HSS Twist Drill Set 10 Pieces Chuck Keys 2 Pieces User Manual English Version
