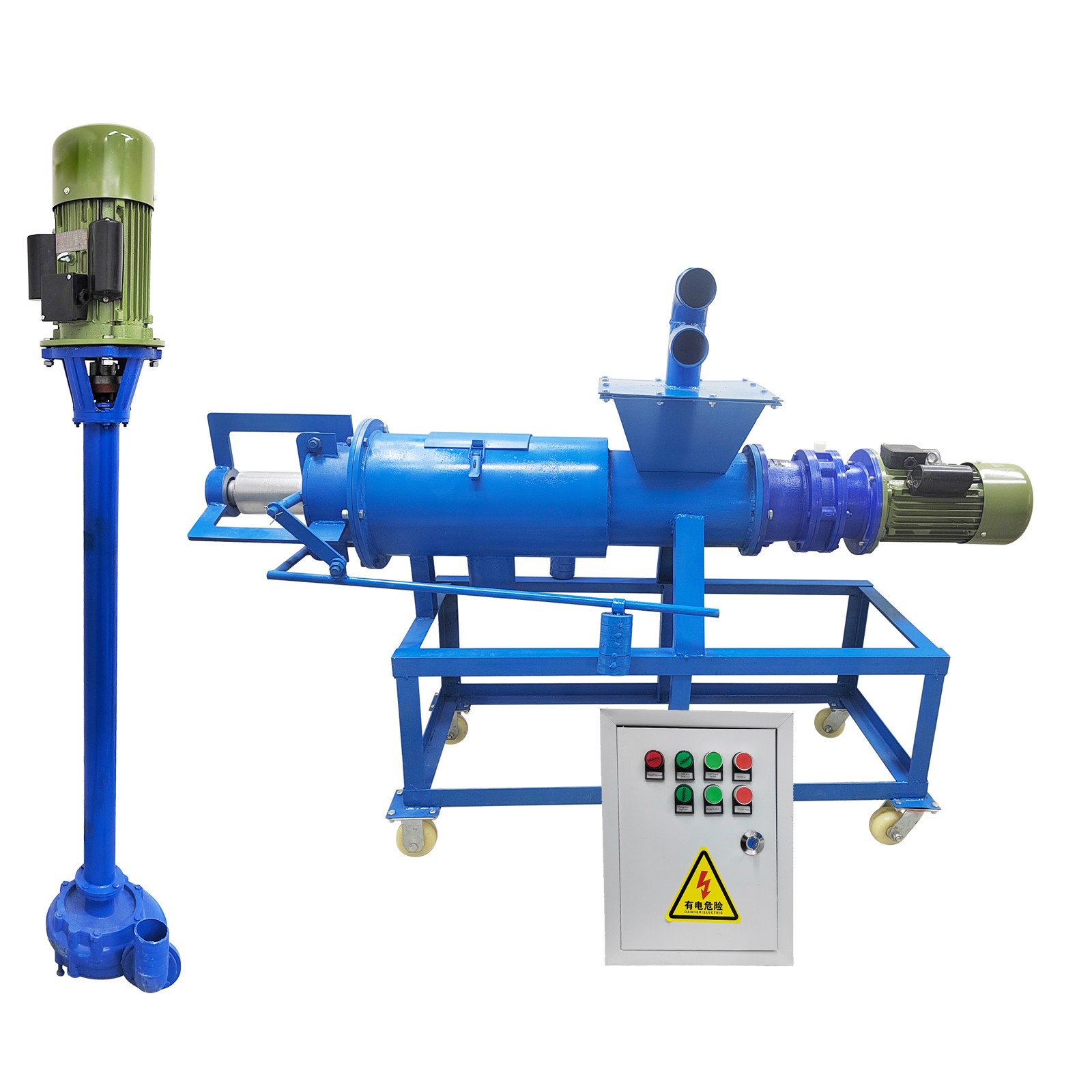

Livestock Farm Organic Fertilizer Solid-Liquid Separator Manure Dewatering Machine 220V
The solid-liquid separator, also known as a solid-liquid separating machine or manure dewatering machine or manure disposal machine, is an integrated device designed for dewatering livestock and poultry manure. It can separate livestock and poultry manure-water mixtures, such as pig manure, duck manure, cow manure and chicken manure, into liquid organic fertilizer and solid organic fertilizer. The liquid organic fertilizer can be directly applied to crop absorption, while the solid organic fertilizer can be transported to fertilizer-deficient areas for application, also improves soil structure and can be further processed into organic compound fertilizer through fermentation.
Product Parameters
Power supply 220V Single-phase Power of main machine 4KW Power of pump 3KW Disposal flow 10-12m3/h External diameter of feeding inlet 76mm (3in) External diameter of sewage outlet 108mm (4.2in) Filter net 0.75mm (0.03in) Net weight 274kg (604LBs)
Details
Electric Control Box
The electric control box has the functions of safety protection, leakage protection and grounding protection, effectively ensuring the personal safety and well achieving precision control over start and stop of the unit and pump.
Motor
The copper motor has high quality and performance, achieves quick heat dissipation and stable operation, provides the stable driving force for the main unit and greatly improves the manure processing efficiency.
Filter Net
The filter net is of a stainless steel wedged mesh structure, the wedge-shaped strip filter net is good in filtering effect and high in efficiency, is not prone to clogging, and is easy to rinse and resistant to corrosion.
Discharging Outlet
The press rod type discharging outlet is designed for smooth and flexible discharge, the discharged manure is drier and cleaner, adjustment is flexible and convenient, and the discharging effect is better.
Moving Wheels
The moving wheels are adopted to allow the machine to move to different working environments, effectively saving time and labor and improving the movement convenience and environmental adaptability.
Delivery Pump
The manure delivery pump adopts the large-flow vortex impeller design, can easily deliver manure, effectively avoids blockage, is resistant to corrosion and wear and achieves reliable and continuous operation.
Product Features
1. High processing capacity: The working efficiency of the screw extrusion type solid-liquid separator is correlated with the storage time of livestock manure and liquid manure, the content of liquid and solid substances, the viscosity of manure and so on. Depending on the material type, it can handle 10-12 cubic meters of liquid materials per hour, and 2-3 cubic meters of high-viscosity water-containing solid materials per hour.
2. Low moisture content of processed solids: Reference value of approximately 40% (varies with the viscosity, the particle size and the physical state).
3. High-quality materials: the high-strength screw shaft, the corrosion-resistant alloy double-screw blade, the mesh screen is made of stainless steel, the screw blade is subjected to alloy treatment, and the outer shell box body adopts 10mm seamless steel pipes formed at one time, and is made of high-strength thickened steel materials.
4. The solid-liquid separator is a novel high-efficiency solid-liquid separation and squeezing dewatering mechanical product. The screw separation and extrusion dewatering are completed by the same machine. It has the advantages of low power consumption, high efficiency, low operating cost and purchase cost, small occupied area, simple operation and easy maintenance, is free of vulnerable parts, ensures fast investment payback, and does not need to add any flocculants.
Operation Method
1. Installation
The installation position can be selected according to the actual site conditions of the breeding farm. It is advisable to choose the relatively flat terrain that facilitates the conveyance of liquid manure and the discharge of separated liquid. The discharge pipes should avoid sharp bends and right angles to reduce the flow resistance of the discharged liquid. If the machine is installed outdoors, a simple rain shelter can be constructed. The main machine motor and the motor of the matched dedicated non-clogging auger pump shall be connected to the main control distribution panel of the entire equipment set.
2. Connection of Conveying Pipe and Drainage Pipe
The machine is equipped with a conveying pipe for connecting the pump and the main machine. Sleeve the conveying pipe to the pump outlet and the feeding inlet of the separator correspondingly, and fasten it with clamp hoops. Then connect the overflow pipe to the overflow discharging outlet, and place the other end into the manure pit.
3. Trial Running
Turn on the main machine motor, start it, confirm that the screw shaft rotates in the correct direction, then shut it down. Lift the connecting rod to the highest position, open the discharging outlet flap, twist waste newspapers or used woven bags into balls, stuff them into the residue outlet, and put down the connecting rod. Install the counter weight and press it by hand. Then start the pump, and then turn on the main machine motor. Wait until liquid stops flowing out of the residue outlet, and then slowly release your hand. The connecting rod will push outward again. Remove the newspapers or woven bags stuffed in the residue outlet, and then the separated solid residue will be continuously extruded out.
4. Cleaning and Maintenance
The machine shall be cleaned once every 15 days to ensure the filtration effect of the filter net and the low moisture content of the extruded solids. If the liquid discharged from the liquid outlet decreases or the discharged solids are found to have high moisture content during operation, you may perform stop and start cycles independently for several times.
Precaution
1. Ensure that the manure has good flowability and is free of long fibers and hard objects, such as convenient bags, iron wires, stone and nails.
2. Do not use the separated waste water as raw manure diluent to be reused.
3. Let a professional electrician conduct wiring operation, and ensure reliable grounding.
（The machine is not equipped with a power cord; please prepare one according to your needs.）
4. During operation, do not open the machine cover, do not touch the rotating parts, and do not clean the feeding inlet with hand or tool.
5. The separated solid manure residue can be used as a raw material for organic fertilizer, while the liquid portion should be directed to a sedimentation tank for treatment before being applied to farmland. Direct discharge of untreated effluent is strictly prohibited to prevent environmental pollution.
Item Included (148136): 1 x Manure Dewatering Machine 220V
You can make order with no worry.
Any concern just feel free to let us know, we\'ll reply in 24 hours in normal condition.
Handling Time: Shipping is usually made in 1-3 business days after payments cleared. Orders are processed from Monday-Friday; Not on the weekends & public holidays.
Warranty: 6 months\' warranty for the machines, not for the consumables.
We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or technical support from us with low cost.
