20A 240W DC 18V 20V 24V 36V 48V to 12V Step Down Voltage Converter with Fuse For Sale

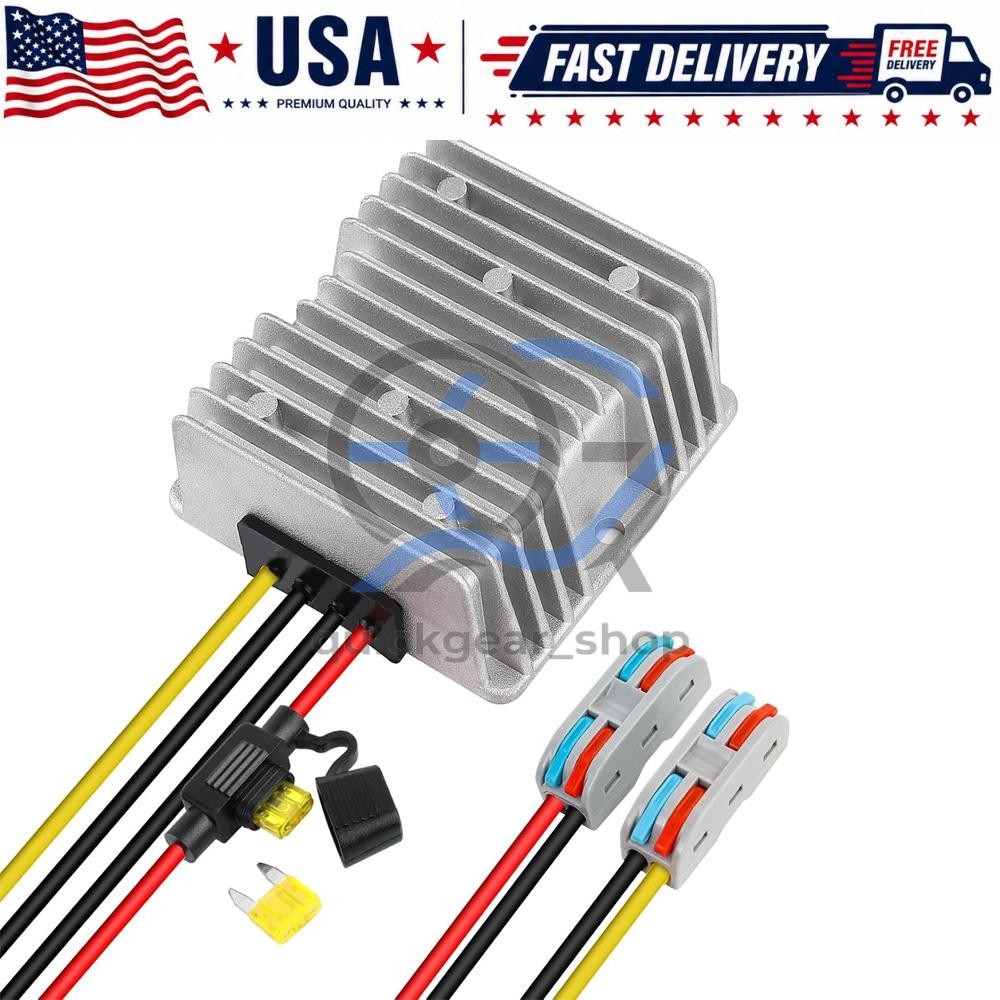

20A 240W DC 18V 20V 24V 36V 48V to 12V Step Down Voltage Converter with Fuse

• Input Voltage Range: 18V to 60V(Rated Voltage: 18V/20V/24V/36V/48V) ; Output: DC 12V 20A 240W
• Adopt Synchronous Rectification Technology to improve conversion efficiency, Maximum Efficiency:≥95%; Ripple Wave: 50Mv; Starting delay time:≤2S
• Assembled with smart chip, features Over-current /Over-load /Low-load /Short-circuit /Over-heat intelligent protection
• Compact aluminium shell with epoxy potting, 100% waterproof, anti-dust, anti-shock protection and better heat dissipation
• These voltage converters are excellent power transformers, can work safely and reliable in -40°C~80°C range. And all converters are offered 1 year replacement assurance.


•


  This DC 18V/20V/24V/36V/48V(18V-60V) to 12V 20A 240W voltage reducer converters are high reliability power transformers. They feature wide input voltage, low power consumption, high efficiency, high reliability, with anti-reverse fuse holder.

  We provide different power voltage converters for all kinds of application devices.

  Intelligent Protection

  Assembled with smart chip--has features of Over-current /Over-load /Low-load /Short-circuit /Over-heat intelligent/anti-reverse connection protection

  2 Quick Connect Termina

  Quick connect terminals help you connect your devices better.

  Synchronous Rectification Technology

  The synchronous rectifier circuit use MOSFET instead of rectifier diode to greatly reduce the loss of the rectifier and improve the converter efficiency

  IP68 Waterproof ModuleBetter Heat Dissipation

  Strict glue pouring process is waterproof, moisture-proof, seismic and adapt to a variety of harsh environment.

  Aluminium shell improve better heat dissipation effect and sturdiness to extend service life.

  FR-4 multilayer lines, resistors, capacitors and switch MOS tube are SMD components with high integration, high reliability, high stability.

  Notes: It's normal that the case is hot when converter inside temp is over 113℉, converter will protect itself when inside temp is over 185℉.

  Features
  • Input Voltage: 24V/36V/48V nominal; Input range:18V to 60V
  • Input Current: 10A (max) ; No-load input current: ≤10mA
  • Output Voltage: DC 12V ±2% ; Output Current: 20A
  • Ripple Wave: 50Mv
  • Starting Delay time: ≤ 2S
  • Efficiency: ≥95%
  • Operating Temperature:-40 ~ 80℃
  • Package Include: 1x Voltage Reducer 18V-60V to 12V 20A
