2000 lb Trailer Axle 70\" Hub Face with 5 x 4.5 Idler Hubs, 25.25\" Springs and U-Bolt Kit
SKU: 2000-70-5LUG-2525

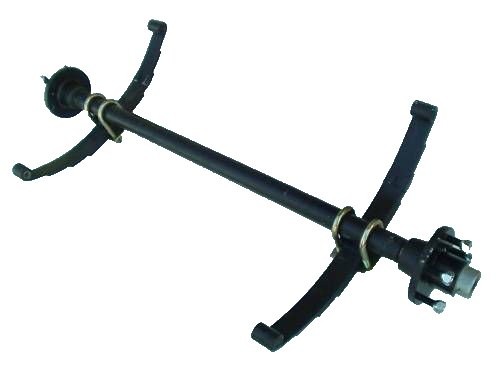

Complete 2000 lb rated trailer axle assembly measuring 70 inches from hub face to hub face. This setup includes standard 5 x 4.5 idler hubs along with 25.25 inch leaf springs and a matching U-bolt mounting kit.
The axle uses common 1-1/16 inch trailer bearings that are widely available through most auto parts or farm supply stores. Spring seats are shipped loose unless spring center spacing and perch orientation are specified during ordering.
- 70 inch hub face axle beam
- 5 x 4.5 idler hubs included
- 25.25 inch leaf springs with nylon bushings
- Standard U-bolt mounting kit included
- Common 1-1/16 inch trailer bearings
R&P Knowledge HubTrailer axles support the trailer frame while allowing the hubs and wheels to rotate on tapered bearings mounted on each spindle. Hub face width determines wheel spacing relative to the frame while spring center spacing determines suspension mounting position. Loose spring pads allow installers to weld mounts at the correct spacing for the trailer frame. Bearing sizes, hub pattern, and suspension measurements should always be verified before lb
Hub Face Width
70 inches
Hub Bolt Pattern
5 x 4.5
Leaf Spring Length
25.25 inches eye to eye
Spring Seats
Shipped loose unless specified
Included Components
Idler hubs, bearings, seals, dust caps, lug nuts, springs, U-bolt kit
Verify specifications before installation.
