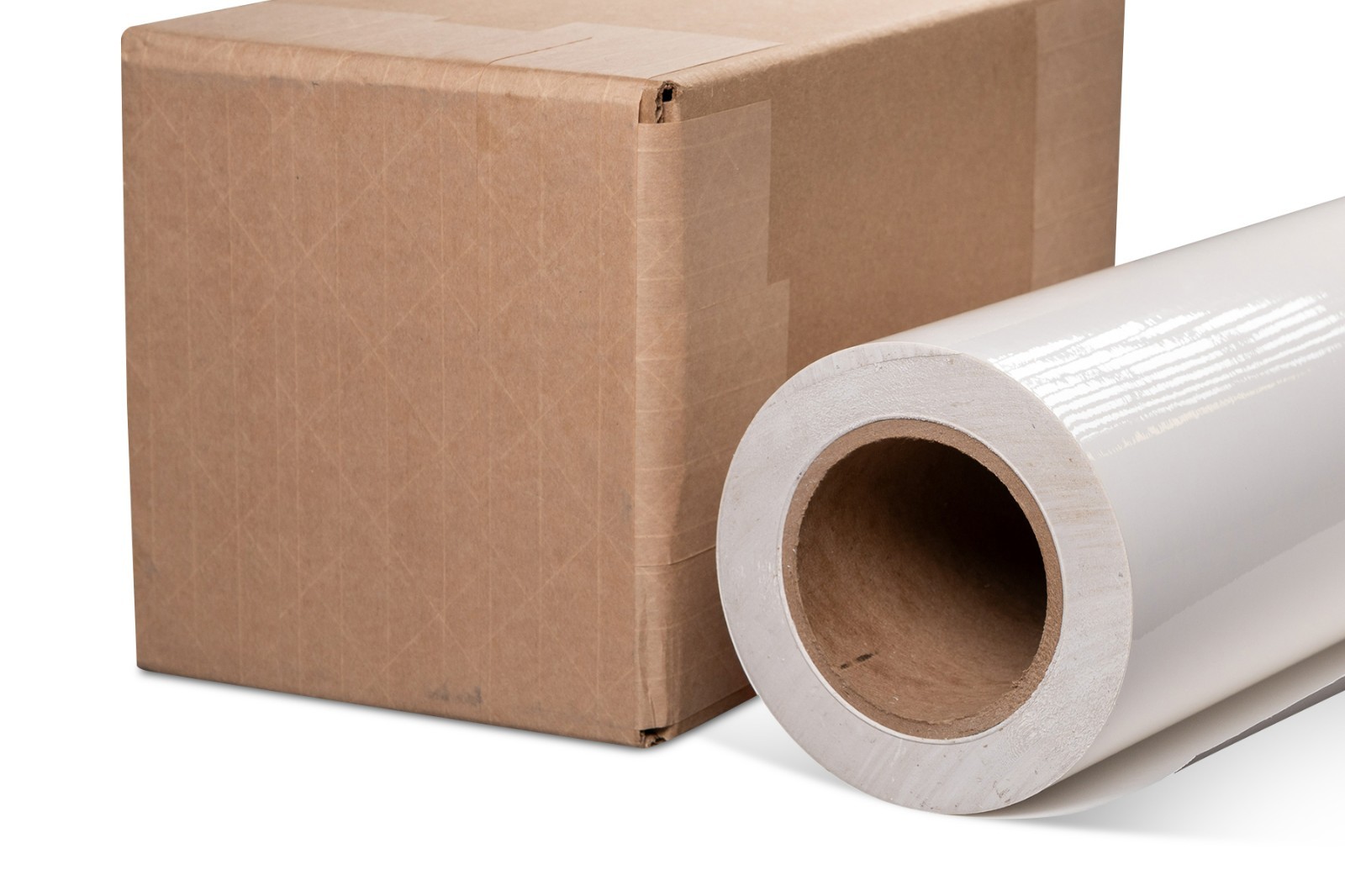

Gloss Clear Laminate Cast Vinyl (PG-138) (matte finish details below)
PG-LAM138 Clear Laminate is a 2.0 mil High Gloss Cast film with clear solvent adhesive on a 74# liner. This conformable laminate provides graphic protection from UV exposure, moisture, and abrasion. PG cast laminates are specifically engineered for full vehicle wraps, partial wraps, fleet graphics as well as long-term applications where a high-quality cast laminate is required.
THIS LAMINATE FILM IS COMPARABLE TO THE FOLLOWING BRANDS:
- 3M 8518, 8520
- Catalina/Mojave LM2GL, LM2MC
- Arlon 3220G, 3220M
- Avery DOL 1060z, 1080z
- Oracal Oraguard 290G, 290M
- Mactac RAZor 3638, 3648
- General Formulations AutoMark 831, 840
FILM
Film Type Cast Clear Vinyl Film Thickness (mils/μm) 2.0 / 50 (+/- 10%) Film Weight (gsm) 65 Gloss (60°) >90 Opacity (%) N/A Elongation (%) MD > 200 Dimensional Stability (FTM 14) MD ≤ 0.40 mm
ADHESIVE Adhesive Type Solvent Acrylic Adhesive Thickness (mils/μm) 0.9-1.2 / 23-31 Adhesive Color Clear Peel Strength on Stainless Steel (lbs/in) / (N/25mm) 15 min 2.5 / 11 Peel Strength on Stainless Steel (lbs/in) / (N/25mm) 24 hrs 3.5 / 15
Matte Clear Laminate Cast Vinyl (PG-048)
PG-LAM048 Clear Laminate is a 2.0 mil Matte Cast film with clear solvent adhesive on a 74# liner. This conformable laminate provides graphic protection from UV exposure, moisture, and abrasion. PG cast laminates are specifically engineered for full vehicle wraps, partial wraps, fleet graphics as well as long-term applications where a high-quality cast laminate is required.
FILM Film Type Cast Clear Vinyl Film Thickness (mils/μm) 2.0 / 50 (+/- 10%) Film Weight (gsm) 65 Gloss (60°) >30 Opacity (%) N/A Elongation (%) MD > 200 Dimensional Stability (FTM 14) MD ≤ 0.40 mm
ADHESIVE Adhesive Type Solvent Acrylic Adhesive Thickness (mils/μm) 0.9-1.2 / 23-31 Adhesive Color Clear Peel Strength on Stainless Steel (lbs/in) / (N/25mm) 15 min 2.5 / 11 Peel Strength on Stainless Steel (lbs/in) / (N/25mm) 24 hrs 3.5 / 15
LINER Liner Weight (#/gsm) 74 / 120 (+/- 10%) Liner Type White Clay-Coated Kraft Liner Thickness (mils/μm) 4.6 / 118 Release Force @ 300” / min (g/2”) 20-40
PERFORMANCE GUIDANCE Application Temperature > +50 °F Service Temperature -40 °F to 180 °F Shelf Life 2 years Storage Temp / Rel. Humidity 70 °F / 50% Outdoor Durability 8 years (vertical application - see zone 1)
