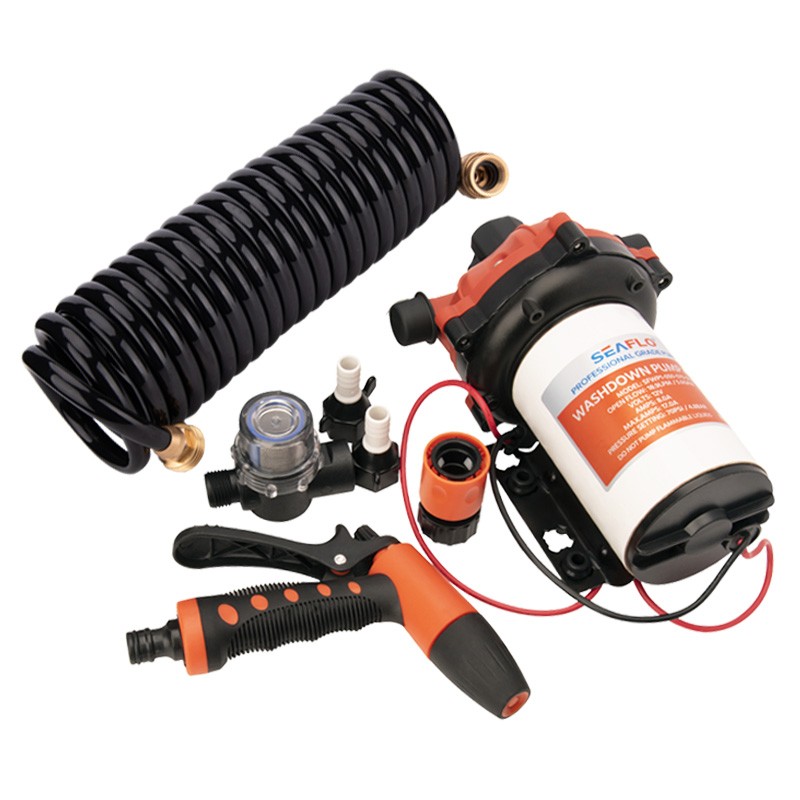

12V SEAFLO 70PSI Boat Washdown Pump Kit Self-Priming Caravan RV Wash Pump 5GPM For Sale

PUMPType5 Chamber positive displacement diaphragm pump, self priming, capable of being run dryControl TypePressure switchMax Recommended Temperature60° C（140° F）Priming Capabilities6 feet (1.8 m) suction liftRe-start Pressure

Shut-off Pressure 70 PSI ：56 PSI ±5 PSI(±0.3 bar)

Inlet/Outlet Ports1/2\"-14 MNPTWeight8.2 lbs (3.7 kg)MOTORLeads14 AWG, 13\" (33cm) long with 2-Pin connector/LeadsDuty CycleContinuousMax.Amp Draw18.0 AFuse27.0 A

STANDARD PUMP CONFIGURATIONSModelVoltageOpen Flow
(GPM/LPM)

Control Type

Max Draw

Shut-off Pressure

Wire Connections

SFWP1-050-070-5112V5.0 / 18.9switch18.0A70 / 4.8EPDMSantoprene1/2\"-14 MNPT2-Pin/LeadsINCLUDED:-(1) Heavy Duty Washdown Pump-(1) Trigger Spray Nozzle with quick connect-(1) 25\' Coiled Hose (UV Protected, 1/2\")-(2) 1/2\" Barbed Hose Adapters-(1) Quick Hose Disconnect Fitting-(1) 50 Mesh Inlet StrainerProduct Details:This product is 100% brand newPowerful automatic high-pressure pumpSelf-priming 12v pump with automatic pressure switch control- Automatically turns on and off as you turn nozzle on and off5.0 Gallons Per Minute (19.0 LPM) capacity flow, and 70 PSI pressureProfessional Grade Pump- Ideal for cleaning boats, fish boxes, anchor wells, dinghies, RV\'s, campers and caravansExtremely efficient, very low current draw and offer high capacity outputSelf-primingSmooth, silent operationCan run dry without damageThermal overload and ignition protectionBuilt-in Check ValveEasy connecting systemLow power drawSoft rubber mountsBeware of inferior non-genuine products on the market that claim to be just as goodSpecificationsVOLTAGE: 12 VDCPUMP DIMENSIONS: 8.25\" X 5.30\" X 6.0\"INLET/ OUTLET: 1/2\" Threaded NPT (1/2\" Barbed Hose Adapters Also Included)FLOW RATE: 5.0 GPM/ 19.0 LPMAMPS: 17.0 (20.0 Max. Amps)SHUT-OFF PRESSURE: 70 PSI/ 4.8 BARAPPROVALS: CEQUIET PERFORMANCESELF PRIMINGEASY INSTALLATIONRUNS DRY WITHOUT DAMAGEBUILT-IN CHECK VALVEFITTINGS INCLUDED FOR 1/2 HOSEApplicationsIdeal for cleaning boats, fish boxes, anchor wells, dinghiesMarine, Yacht, Boat, and RV, Camper, Caravan wash-down applicationsSuitable use with fresh AND salt water
