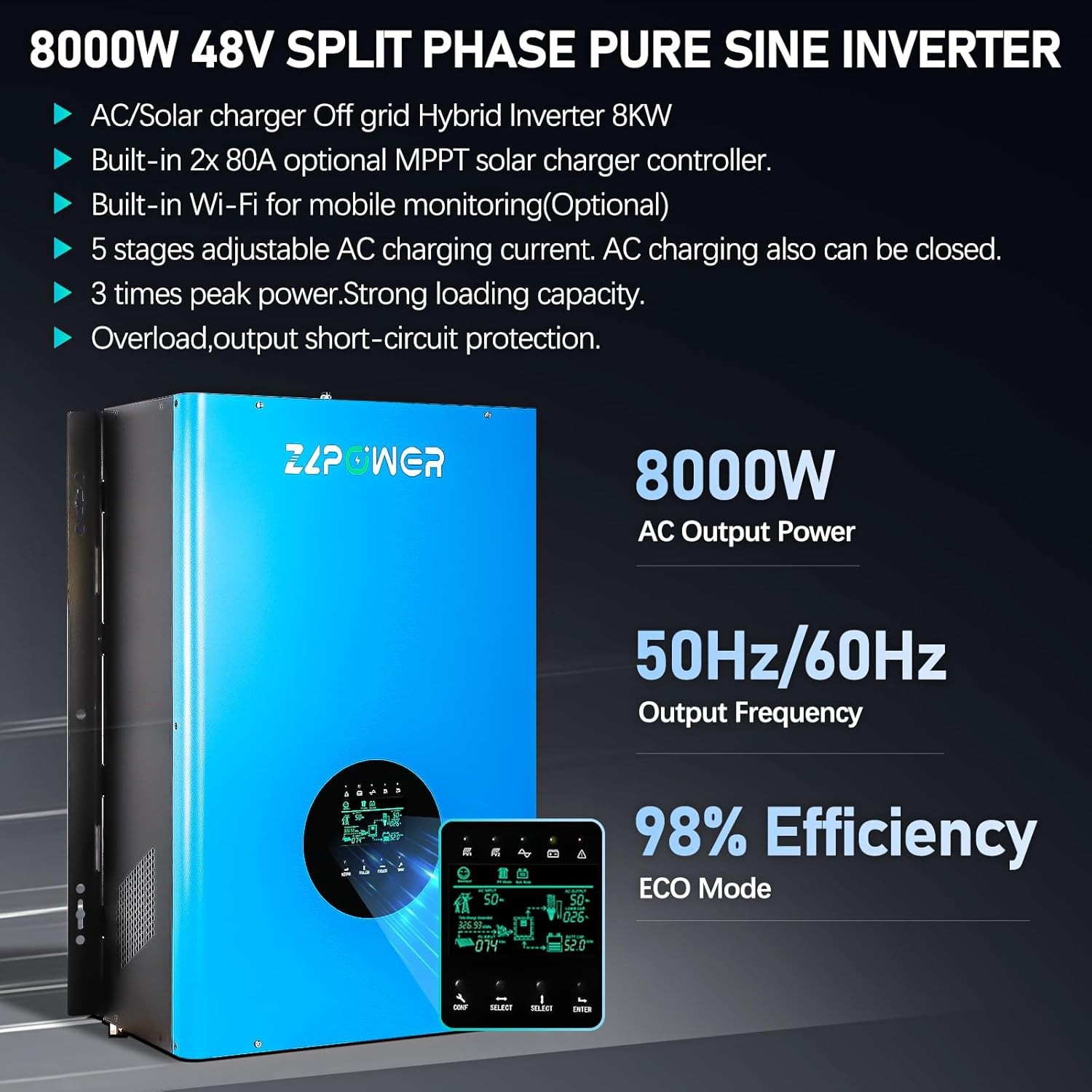

12KW 10KW 8KW 48V Solar Inverter Hybird 110V/220V Split Phase w/ 200A Controller For Sale

About ZLPOWER

GS Series Inverter
Important Safety Warning
• Automatic Generator Starting (AGS)when low voltage or no utility.
• Support 2x80A MPPT Solar Charger Controller.
• Support for 8 kinds of battery voltage selection ( lithium LiFePO4, gel, AGM and lead Acid batteries）.
• 5 stages adjustable AC charging current. AC charging also can be closed.
• Powerful Charge Rate Up to 240Amp, Selectable From 0%-100%.
• Built-in transfer switch and support for battery charge, backup or off grid power solutions.
• AC/support for Battery Priority Mode, Designates the Inverter-Preferred UPS Configuration.
• 4-step Intelligent support for Battery Charging, PFC for Charger.
• Smart fan adjustment(The fan automatically adjusts the wind speed according to the ambient temperature).

2. Wireless Router Connection

2.1 Download APP.Scan the Code and download the APP

2.2 Connect Wi-Fi Datalogger

2.3 Network Setting
3. Create Account And Add Datalogger

3.1 Create Account

3.2 Add Datalogger
Earthing(ABYC standard)
• Inverter mode: the neutral and the earth joined
• Line mode: the neutral and the earth separated
• Use a Relay to realize the function.

LCD OPERATION

• LCD Panel and Configuration Switch

Smart fan Adjustment

• The fan automatically adjusts the wind speed according to the ambient temperature

Low Frequency Split Phase

• 48 VDC input, 240V input VAC to 120/240V AC split phase output This low frequency unit is a combination of an DC to AC power inverter, support for battery charger and AC auto transfer switch into one complete system

Inverter Output Specifications

• Continuous Output Power: 12000 Watts
• Surge Rating: 36000 Watts
• Output Wave Form: Pure Sine Wave
• Output Voltage: 120/240Vac
• Nominal Efficiency: 90% (Peak)
• Line Mode Efficiency: >99%
• Output Frequency: 50Hz / 60Hz ± 0.3Hz
• Typical Transfer Time: 10ms

Inverter Input Specifications

• Nominal DC Input Voltage: 48.0Vdc
• Support for Low Battery Alarm: 42.0Vdc-44.0Vdc
• Support for Low battery Trip: 40.0Vdc-42.0Vdc
• High Voltage Shut-down: 64.0Vdc
• Support for Low battery Shut-down Recovery:44.0 ± 0.8Vdc
• Support for High battery Shut-down Recovery:62.0 ± 0.8Vdc
• Idle Consumption: 23 Watts
• Nominal Input Frequency:50Hz / 60Hz (Auto detection)

Charger Specifications

• Output Voltage: Based on the AC output voltage gear you set
• Support for Battery Initial Voltage for Start Up: 40-62.8V
• 12VDC model: Max 90A
• 24VDC model: Max 70A
• 48VDC model: Max 80A
• Bat. V ≥15.5Vdc, Fault, Buzzer alarm for 12Vdc
• Bat. V ≥31.0Vdc, Fault, Buzzer alarm for 24Vdc
• Bat. V ≥61.0Vdc, Fault, Buzzer alarm for 48Vdc
