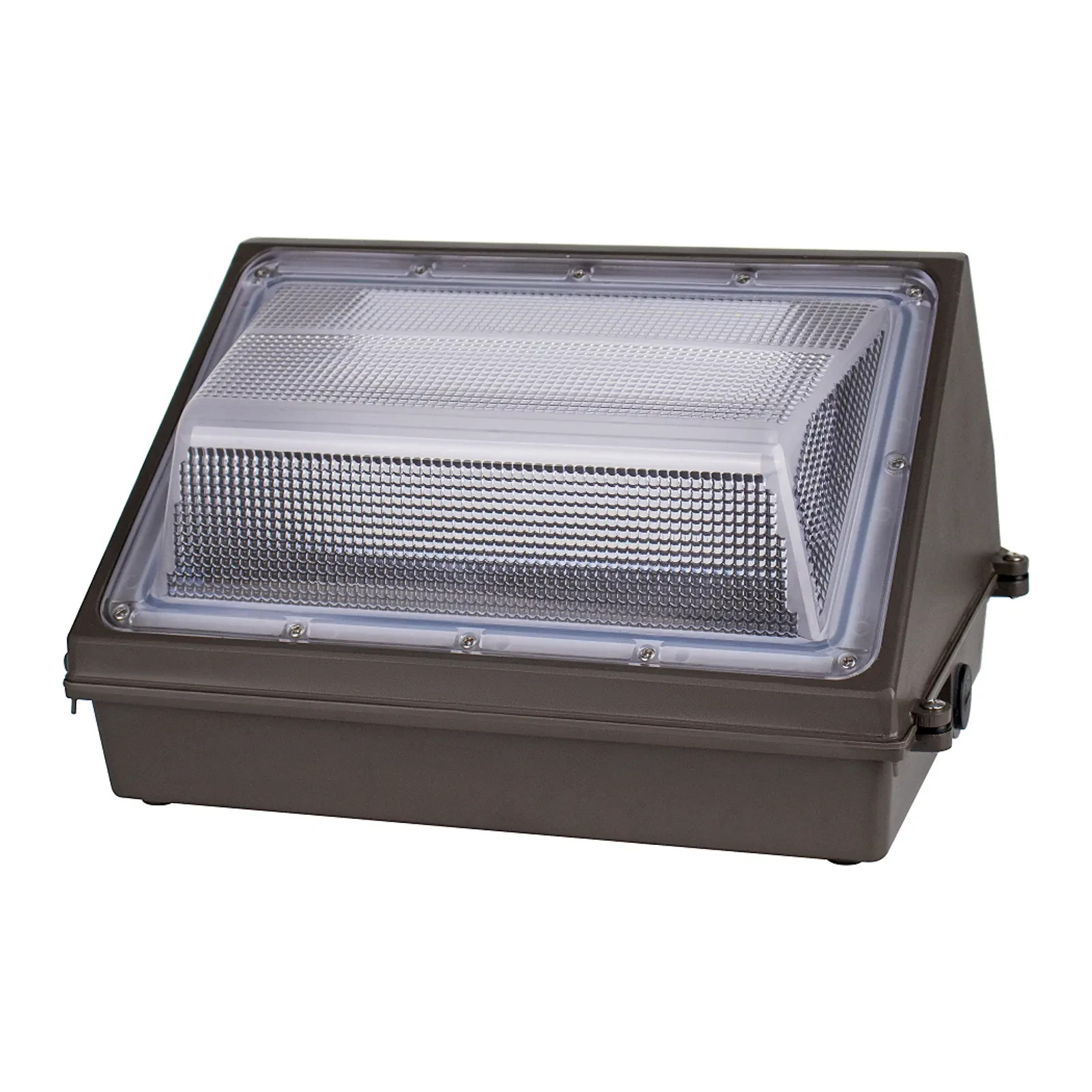

120W LED Wall Pack: Bronze Semi Cut-Off Security Lighting
LED wall packdelivers 12000 lumens at 120 LM/W, projecting crisp 5000K illumination through a 90° × 140° semi cut-off optic that brightens parking lots, walkways, loading docks, and storefronts while minimizing upward light spill. The bronze die-cast housing, IP65 sealing, and AC120-277V driver platform ensure long-term reliability for commercial environments requiring safety, visibility, and energy efficiency.
- 120W SMD 3030 LED array outputs 12000 lumens with high energy savings
- 90° × 140° Type IV distribution ideal for building perimeters and pathways
- 5000K daylight spectrum improves camera clarity and object recognition
- Bronze semi cut-off housing reduces glare and complements architectural exteriors
- High-quality drivers (Sosen / Zhihe / Weipeng) support AC120-277V input
- IP65-rated aluminum body and UV-stable polycarbonate lens resist rain and dust
- Wall-mount backplate with knockout pattern simplifies retrofit installation
Optical Performance
ThisLED wall packutilizes a precision prismatic lens to produce a uniform 90° × 140° spread, removing dark areas around loading bays while its semi cut-off profile shields pedestrians from direct glare.
Electrical Stability
Universal AC120-277V input, power factor ≥0.9, and low THD ensure theLED wall packintegrates seamlessly with commercial mains, supporting standardized SKUs across campuses, retail sites, and municipal upgrades.
Mechanical Durability
The die-cast aluminum body with bronze powder coating protects theLED wall packfrom corrosion, while the sealed wiring compartment and silicone gaskets maintain IP65 protection against dust, rain, and outdoor exposure.
Technical SpecificationsProduct TypeBasic LED Wall PackPower120WLuminous Flux12000 lmEfficacy120 lm/WCCT5000KBeam Distribution90° × 140° semi cut-offCRI≥80Input VoltageAC120-277VDriver BrandSosenLED TypeSMD 3030FinishBronzeLensUV-stabilized polycarbonateIngress ProtectionIP65Operating Temperature-40°F to 113°FDimensions14.57 × 9.45 × 7.90 inNet Weight7.95 lbCarton Size16.15 × 11.42 × 9.90 inShipping Weight9.26 lbMountingSurface wall mount with backplatePerfect Applications
Gas Stations:TheLED wall packbrightens fuel-adjacent areas and enhances customer safety.
Walkways:Broad optics protect foot traffic near schools, hospitals, and offices.
Parking Lots:Improves visibility around retail façades and strengthens camera performance.
Shopping Centers:Bronze finish blends with commercial exterior design.
Warehouses:Provides reliable illumination for dock doors and staging zones.
Schools:Enhances nighttime safety along building exits and corridors.
Transit Hubs:Weatherproof structure withstands long-term outdoor exposure.
Installation Guide
Step 1 – Power Isolation:Disconnect power, verify voltage, and inspect theLED wall pack.
Step 2 – Mounting Prep:Position the backplate, mark anchor points, and run conduit through knockouts.
Step 3 – Wiring:Connect L, N, and ground leads following NEC/IEC standards; seal penetrations with gaskets.
Step 4 – Final Checks:Secure the housing, energize the circuit, and verify beam coverage.
Step 5 – Maintenance:Clean lens and check hardware every 6–12 months.
Frequently Asked Questions
Q: Does it include a photocell?
A: ThisLED wall packdoes not include a photocell, but a knockout is provided for optional sensors.
Q: Can it replace 175W metal halide?
A: Yes. The 12000-lumen output replaces typical 400W MH units with ~65% energy savings.
Q: Is a junction box required?
A: It can mount directly to conduit-fed boxes or masonry anchors; wiring is enclosed inside the sealed compartment.
Q: Can the LED board be serviced?
A: Yes. The LED module is field-serviceable by removing the front lens assembly.
Q: Is the bronze finish UV-resistant?
A: The bronze powder coat and PC lens resist fading and yellowing under direct sunlight.
Why Choose This LED Wall Pack
TheLED wall packcombines 120 LM/W performance, 5000K clarity, semi cut-off optics, and IP65 durability, providing a dependable upgrade for commercial exterior lighting.
