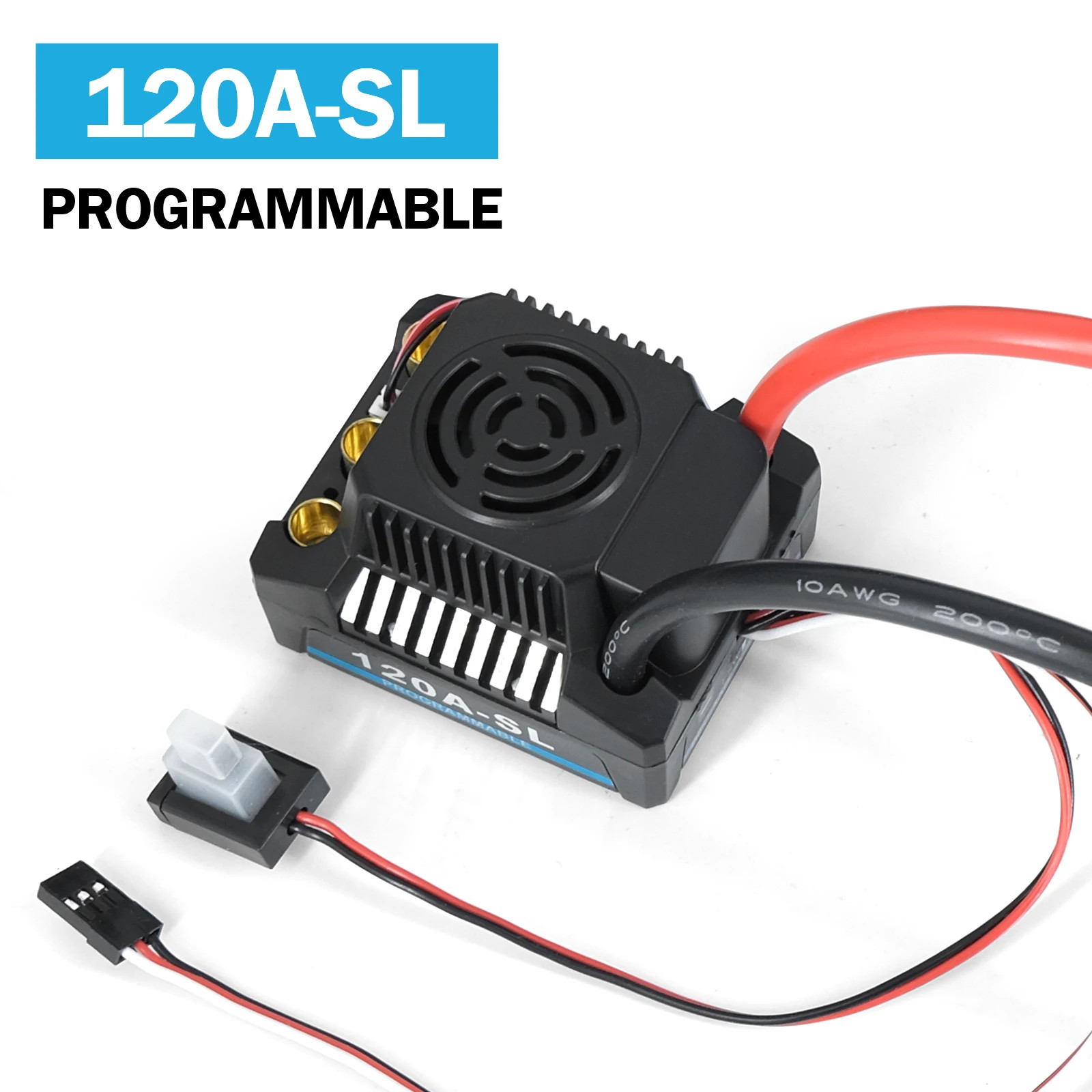

Platinum 120A 150A 2-4S Waterproof Burshless ESC with 5.8V-6.1V/3A BEC for 1/10 1/12 1/14 RC Car Truck Model Toys
This is Electronic Speed Controller(ESC)for car.Hiah power svstem for RC model is verv dangerous. so please read this
manual carefully. Since we can’t control over the correct use,installation,application,or maintenance of our products, we\'ve no liability shall be assumed nor accepted for any damages,losses or costs resulting from the use of the product.Any claims arising from the operating,failure of malfunctioningetc.will be denied.We assume no liability for personal injury, consequential damages resulting from our product or our workmanship. FEATURES
1.Water-proof and dust-proof for all-weather races;(Note:please uninstall the coolina fan before usina this ESC in waters
Clean and dry it soon after the use for avoiding the connectors get rusty.)
2.Specially designed for RC car with excellent start-upacceleration and linearity features.
3.Compatible with sensorless brushless motor.
4.The strong resistant current capability,excellent heat dissipation
5.Multiple protection features:Low voltage cut-off protection for lithium or nickel battery/Over-heat protection/Throttle
signalloss protection/Motor blocked protection/
6.Easily programmed and compatible with pocket-sized program card CONNECTIONS
Connet to Battery Connet to motor
Connet to Receiver Switch
Specifications
Model 120A 150A
Burst Current Cont.Current 120A/600A 150A/720A
Sensorless Brushless Moto Sensorless Brushless Motor
For 4S Lipo or 12 cells NiMH: For 4S Lipo or 12 cells NiMH
1.on-road:40XX-size or smaller motor with the KV<3000 1.on-road:42XX-size or smaller motor withtheKV<3000
Motor Type with the KV<2500
For 6S Lipo or 18 cells NiMH: For 6S Lipo or 18 cells NiMH
1.On-road:40XX-size or smaller motor with the KV<2500 1.On-road:42XX-size or smaller motor with theKV<2500
2. Off-road/Buggy/Monster:40XX-size or smaller motor 2.Off-road/Buggy/Monster:42XX-size or smaller moto
with the KV<2000. with the KV<2000
Suitable Car 1/8 car 1/8car
Resistance 0.00035ohm 0.00030ohm
BEC Output 5.8V-6.1V/3A
Weight:108G
Size:60*50*38MM
