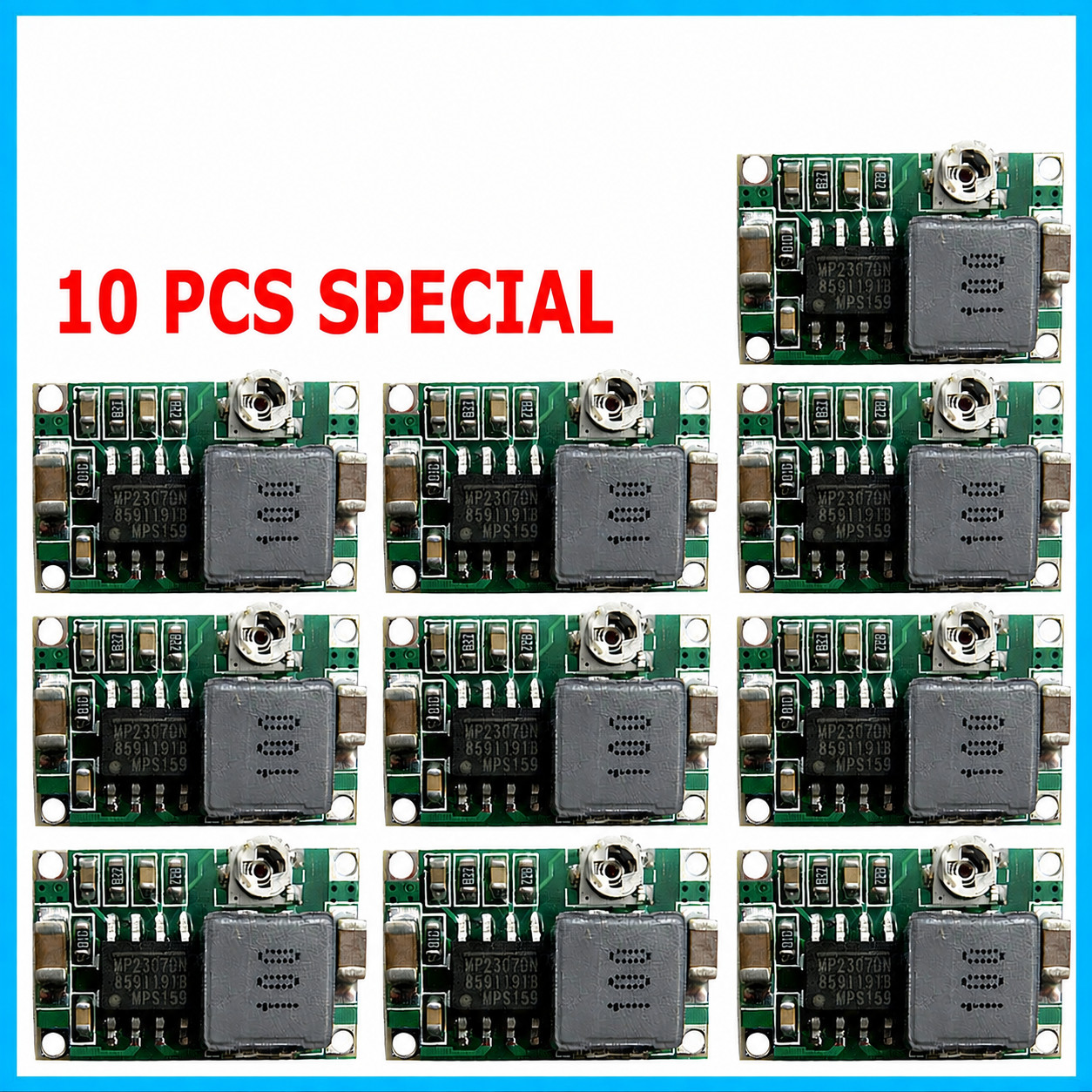

10X Mini360 3A DC Voltage Step Down Power ConverterBuck Module 3.3V 5V 9V 12V
Key Features
- Ultra-Compact Design: Only 17 × 11 × 3.8 mm, perfect for tight spaces.
- Wide Input Voltage: 4.75V–23V DC
- Adjustable Output Voltage: 1.0V–17V DC
- High Output Current: Up to 3A peak, with approximately 1.8A continuous under suitable cooling conditions.
- High Efficiency: Up to 96% maximum conversion efficiency.
- Synchronous Rectification: Provides improved efficiency and reduced power loss.
- Switching Frequency: 340KHz
- Low Output Ripple: Approximately 30mV at no load.
- Adjustable Output: Output voltage can be fine-tuned using the onboard adjustment potentiometer.
- Compact Power Inductor: Integrated molded power inductor helps save space and improve efficiency.
- Wide Operating Temperature: -40°C to +85°C.
Specifications
- Model: Mini-360
- Type: DC-DC Step-Down (Buck) Converter
- Module Type: Non-Isolated Buck
- Rectification: Synchronous Rectification
- Input Voltage: 4.75V–23V DC
- Output Voltage: 1.0V–17V DC Adjustable
- Maximum Output Current: 3A
- Recommended Continuous Current: Approx. 1.8A
- Maximum Efficiency: 96%
- Switching Frequency: 340KHz
- Output Ripple: Approx. 30mV (No Load)
- Load Regulation: ±0.5%
- Voltage Regulation: ±2.5%
- Operating Temperature: -40°C to +85°C
- Dimensions: 17 × 11 × 3.8 mm (L × W × H)
Applications
Ideal for DIY electronics, Arduino projects, microcontrollers, LED power applications, battery-powered devices, embedded systems, robotics, small electronic equipment, and other DC voltage conversion projects.
Package Includes:
Mini-360 DC-DC Adjustable Buck Converter Module(s) as selected.
