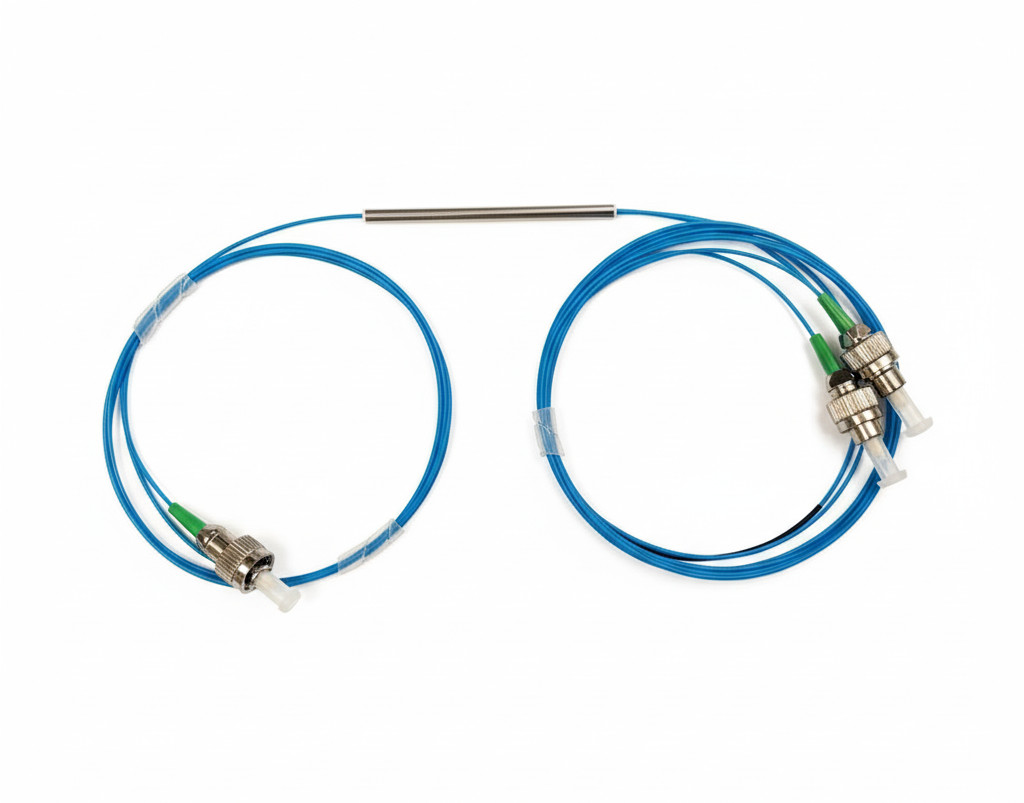

1060nm Polarization Maintaining (PM) 1X2 Fiber Coupler/Splitter/Tap:
$295.00
All our fiber couplers are manufactured in USA.
Key Features
- ■ 1060nm PM 1x2 Fiber Optic Couplers
- ■ 50:50, 60:40, 70:30, 80:20, 90:10 or 99:1 Split Ratios Available (contact us for custom ratio)
- ■ Polarization Extinction Ratios (PER) ≥23.0 dB
- ■ 2.0 mm Narrow Key FC Connectors
- ■ ROHS Compliant
Specifications Parameter Specification Wavelength 1060nm Bandwidth ± 15nm PER > 20 dB (with Connectors) Coupling Ratio Tolerance ± 0.6% to 2%, dependence on coupling ratio Excess Loss < 0.5 dB Fiber Type PM980-XP (Panda) Fiber Jacket 900 µm Hytrel Loose Tubing Fiber Termination FC/APC or FC/PC or No Connectors Operating Temperature Range 0 to 75°C Storage Temperature Range -40 to 85°C
