Badgerpipe can offer 12-2 or 14-2 underground wire with ground, installed inside the corrugated tile, should you wish to add it to the order. Badgerpipe can add extra footage to fill your needs. Please contact us after sale for fulfillmentto add the wire.
Direct-burialunderground cable is a type of electrical wiring that is specificallyengineered to withstand the harsh conditions of being buried underground. Toprovide added protection, the cable is encased in thermoplastic, which createsa moisture-proof barrier between the wiring and the surrounding undergroundenvironment. Therefore, the wire is safe if water shouldhappen to come in contact with the wire for any reason.

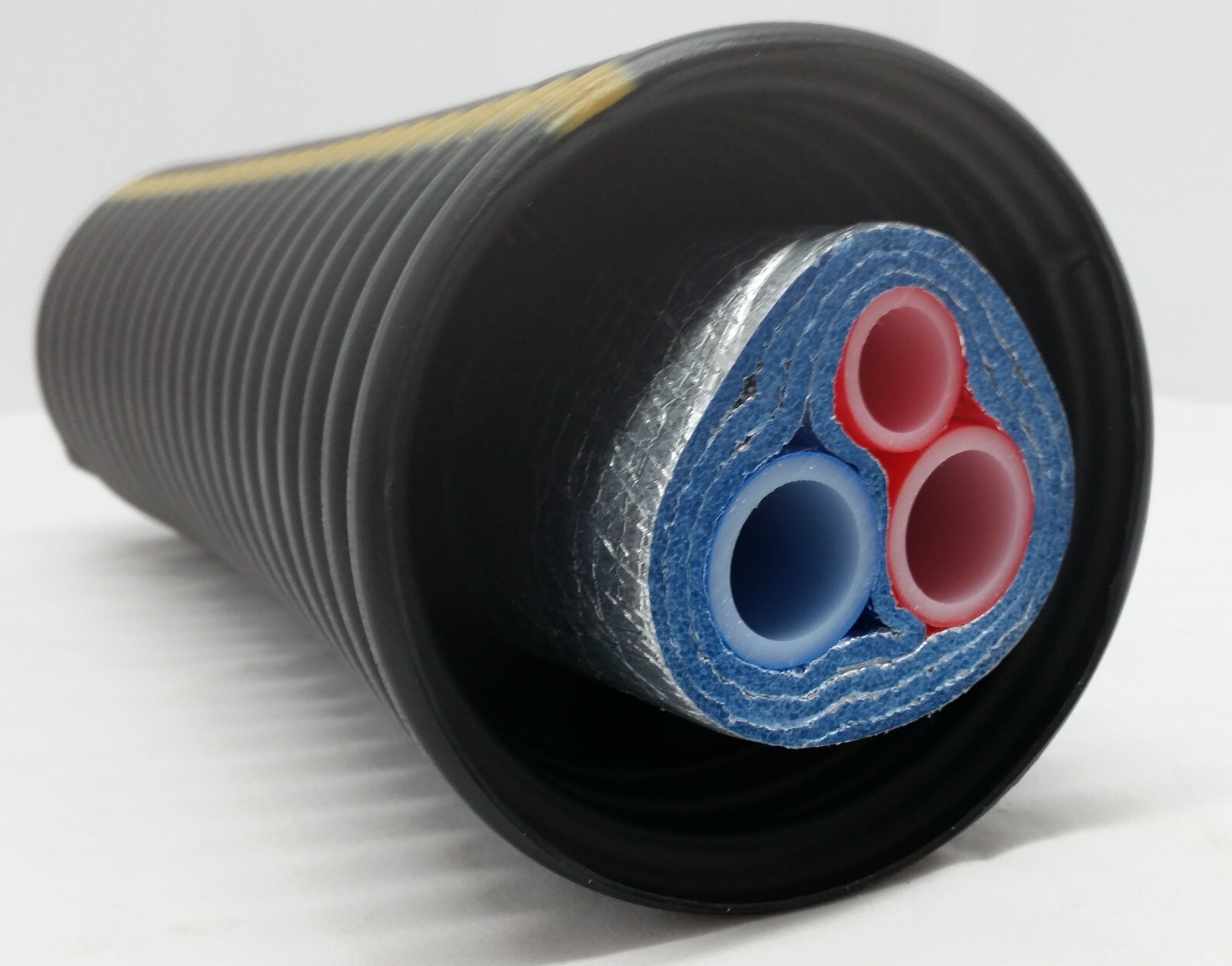

This listing is for Insulated Pipe used for Outdoor Wood Furnaces/Boilers,Geo Thermal, Solar Heatingor anywhere you need to transfer heated or chilled fluids.
This product contains:
- 3Wraps of Commercial Grade EPE Insulation
- 4\" Commercial Grade Corrugated Tile
- 1Red Pex Line
- 1Blue Pex Line
- 1 Red or Blue Pex Lines
- 2End Caps
- String
There are companies selling 5 wrap tubing that put it into a 4\" tile. All of Badgerpipe\'s is in a 5 inch tile because there is too much insulation to fit into a 4\" tile. Also, there are companies that only install the reflective barrier on one side of the insulation. And to make matters worse, they put it on the side away from the tubing which reduces the effectiveness of the reflective qualities.
Yes, we have seen others claiming there tubing tests better than Badgerpipe\'s. Badgerpipe would advise taking these results with a grain of salt, because we have seen inconsistencies in the claimed results.
Test results for BHS Easy Lay Insulated Pipe test 12-30-2010
Part #
Description
Length of Run
GPM
Total Temp Loss
Temp Loss per 100 ft
Temp loss per ft
Btu loss per Ft
Btu loss per 100 ft
ez13
BHS Easy-Lay 1\" NOB Insulated Pipe with 3 wraps ofEPE Insulation.
500 ft
5
6.2
1.24
0.012
31.06
3106.2
ez15
BHS Easy-Lay 1\" NOB Insulated Pipe with 5 wraps ofEPE Insulation.
500 ft
5
3.1
0.62
0.006
15.53
1553.1
For Comparison purposes, some companies only tell you the heat loss for a single line. This equates to .62 degrees per 100 ft on our 3 wrap products and .31 degrees per 100 feet on our 5 wrap products.
Q:How deep should this be buried?
A:Only 18 to 24 inches is necessary unless it will be driven over. If it will be driven over it should be buried 3 or more feet or placed within a PVC tube or culvert.
Q:What is the string for?
A: The string which is included with every roll of insulated pipe can be used to pull an electrical, thermostat, tracing wire or whatever through the corrugated tile.
Q:What is the outside diameter of the tile?
A: The 4\" tile has an outside diameter of 4.7\" and the 5\" tile has an outside diameter of 5.7\"
Q:What does \"Commercial Grade Corrugated Tile\" mean?
A: Our corrugated tile is DOT approved for commercial applications which means that it is thicker/stronger than other tile available to the general public.
Q:How should the trench for the insulated pipe be prepared?
A: The trench should be free of any rocks or debris. If available the corrugated tile should be surrounded by sand.
Q:What is the difference between \"Non Barrier\" pex tubing and \"Oxygen Barrier\" pex tubing?
A:Non Barrierpex tubing is used for \"open\" systems. Systems that arenon pressurized. Those being ones that water will need to be added to periodically and that alsorequire a type of water treatment.Oxygen Barrierpex tubing has a coating applied to the exterior of the tubing to prevent oxygen from penetrating the tubing. Oxygen Barrier pex is used for \"Closed\" systems. Systems that arepressurizedand once filled do not require additional water to be added nor do they require a water treatment product.
Q:How is this product delivered?
A: Most likely the shipment will be delivered via semi truck. Badgerpipe usually use Freight Priority Service for our freight shipments. For residential deliveries, the semi MUST be able to access your location easily to deliver your order. If your location is not easily accessible by semi you will need to make other arrangements (e.g. business with loading dock or meet the truck) to receive your order. Freight will contact you via phone number that must be provided (usually 1 day prior to delivery) to ensure that they can deliver to your location and that someone will be available to unload and sign for the delivery. It is always best is the order can be delivered to a commercial location.
Q:How long before the order is shipped?
A: Badgerpipe always ship within 24 hBadgerpipe\'s from when your order is placed and quite often the same day.
***Badgerpipe will ship to Alaska call for shipping of larger items are freight truck. Smaller items are shipped UPS or Speedee. If your purchase is for insulated pipe, be sure we receive a phone number for the freight company.If item is shipped freight though not absolutely required, it is best if shipped to a commercial address.
PLEASE NOTE:If additional services are needed from the freight company, the buyer is responsible for those charges. Example: Lift gate, re-delivery charge. If you are not available for your appointment, or if the phone number provided is incorrect, you are responsible for the re-delivery fee.
PLEASE PROVIDE A VALID PHONE NUMBER FOR THE FREIGHT COMPANY!!
