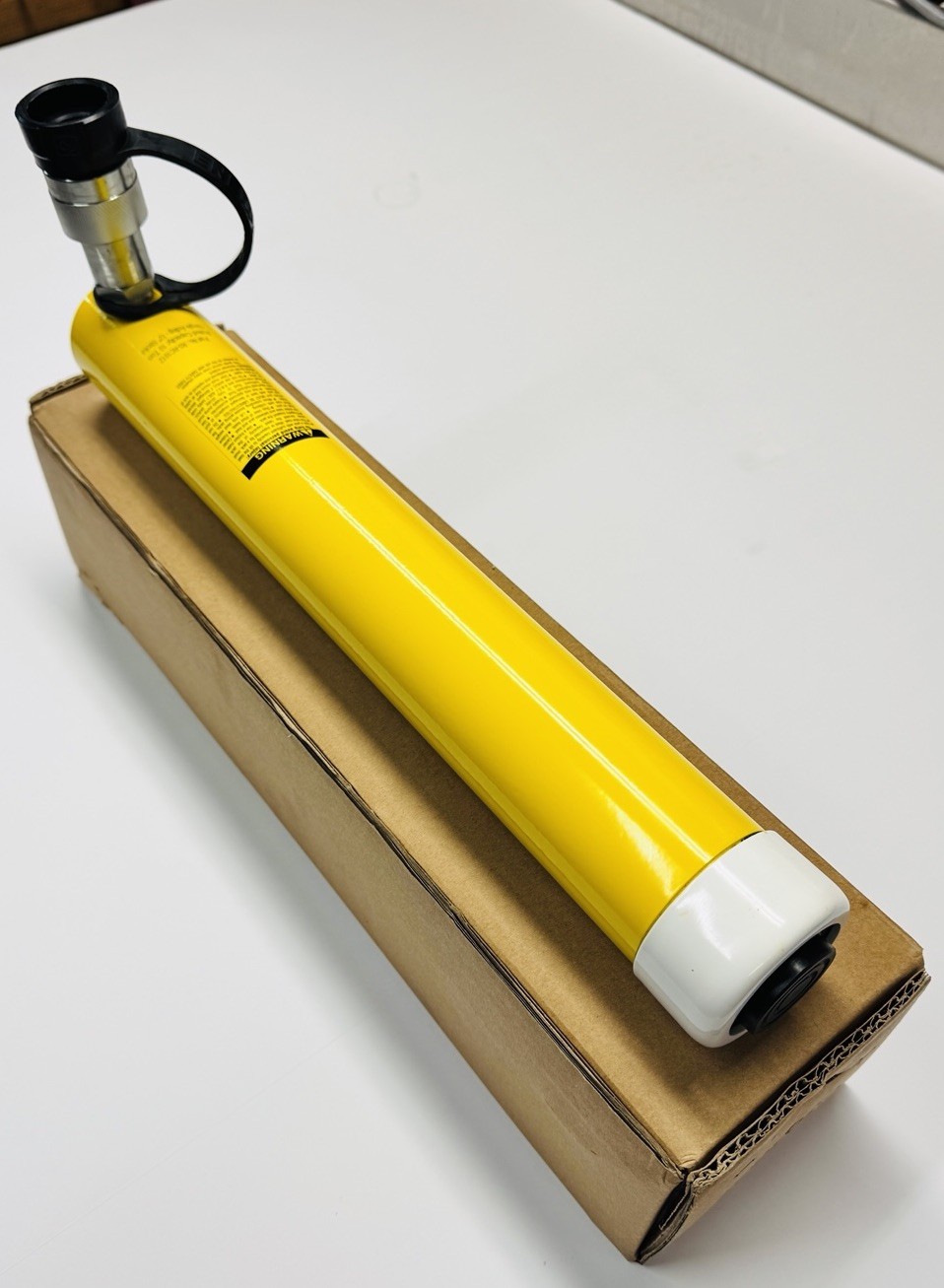

Plunger: Hard chrome-plated
Cylinder housing: steel
Finish: Durable baked enamel yellow coating for corrosion protection
• Features: Spring-return for fast retraction, plunger wiper, CR-400 quick coupler + dust cap included
Product Specifications:
Stroke: 12.00″
Cylinder Effective Area: 2.24″
Oil Capacity: 26.84″
Collapsed Height: 15.75″
Extended Height: 27.75″
Outside Diameter: 2.25″
Cylinder Bore Diameter: 1.69″
Plunger Diameter: 1.50″
Saddle Diameter: 1.38″
Saddle Protrusion From Plunger: .25″
Plunger Internal Thread: 1″-8
Plunger Thread Length: .75″
Bolt Circle Diameter: 1.56″
Thread Size: 5/16″-18
Thread Depth: .50″
Collar Thread: 2 1/4″-14
Collar Thread Length: 1.06″
Weight: 15 lbs.
We offer complimentary and expedited shipping services. Consequently, these cylinders will be repackaged into a USPS-provided Priority Mail box and dispatched. Generally, they arrive within a three-day timeframe.
Keep your cylinder performing like new!
Get the matching seal kit: RokSolid 10 Ton Hydraulic Cylinder Seal Kit (Item 267623617320) — fits 6, 8, 10, 12, 14, 16 inch stroke models for easy maintenance and repairs.
