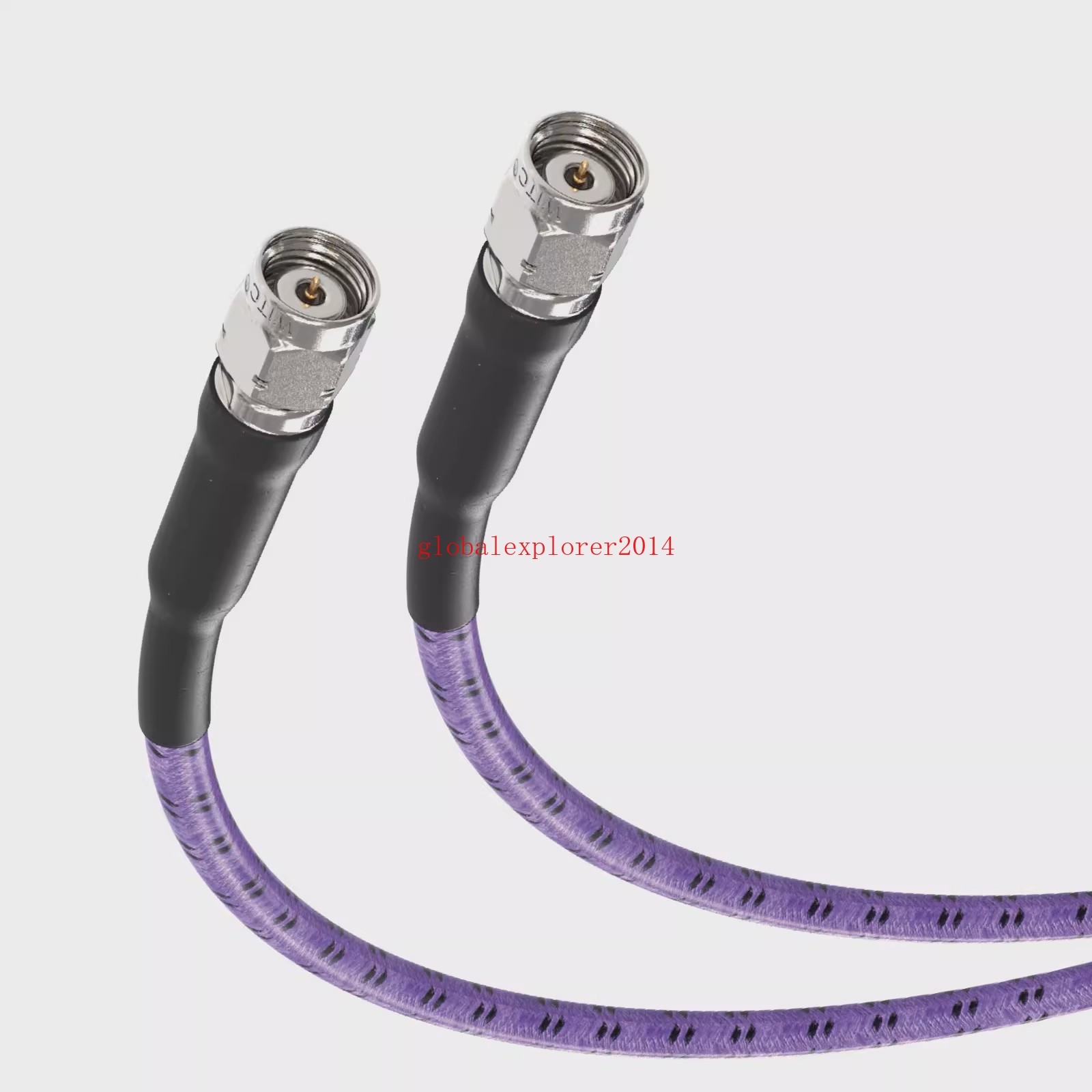

67 GHz Low LossSteel ArmoredVNA Test Port Cable Assembly
1.85mmMale/ 1.85mmMaleStraight0.5 Meter
Product Configuration:
Connector 1 : 1.85mm
Connector 2 : 1.85mm
Impedance (Ohm): 50
Body Style: Straight
Electrical Specifications:
Frequency: DC-67GHz
Insertion Loss: ≤ 4dB Cable length: 0.5 meter (customizable)
OD : 4.7mm Mechanical Data:
Connector 1 Body Material: Stainless Steel
Connector 1 Body Plating: Passivated
Connector 2 Body Material: Stainless Steel
Connector 2 Body Plating: Passivated
Mating Cycles, Min: ≥1000 Environmental Specifications:
Operating Temperature Range: -40℃to +85 ºC
RoHS Compliant: Yes
