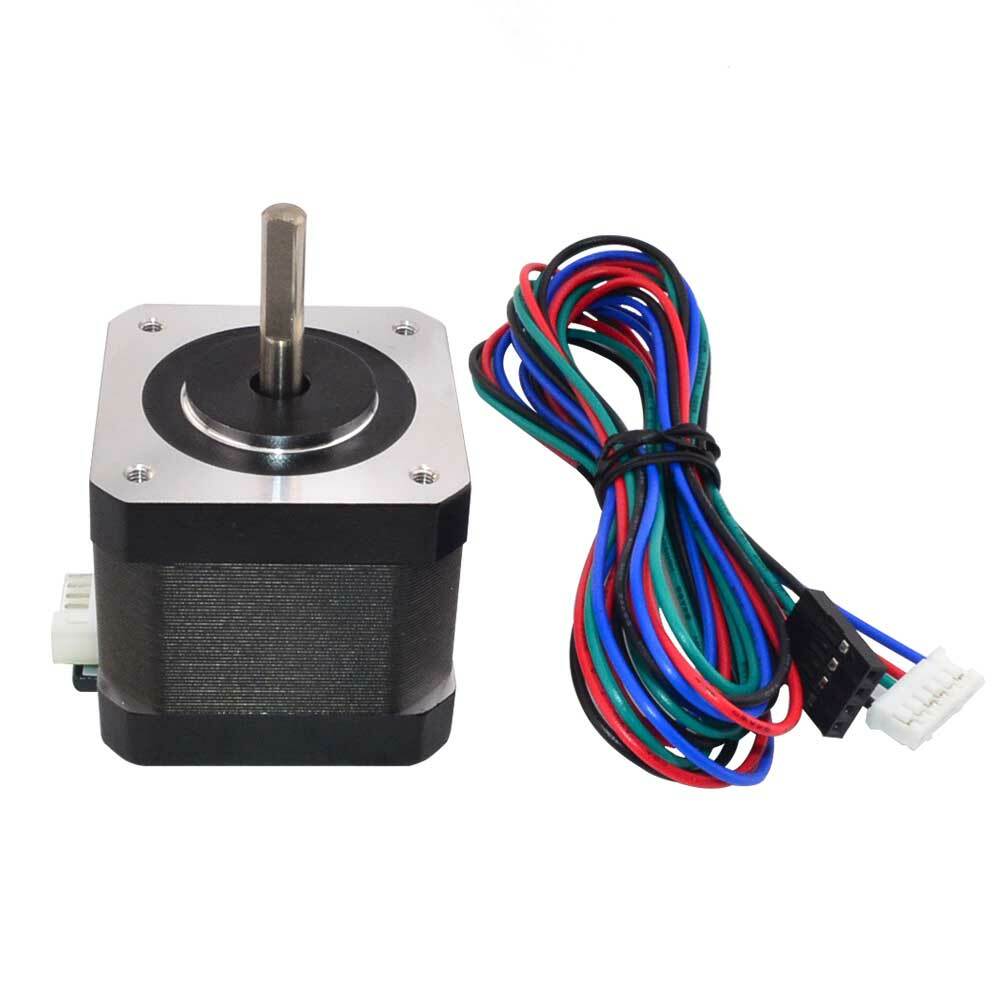

1-5PCS Nema 17 Stepper Motor 64oz.in 39mm 1.5A (17HS4401s) 4-wire for 3D Printer:
$12.99
This bipolar Nema 17 stepper motor with step angle 1.8deg and size 42x42x39mm. It has 4 wires, each phase draws current 1.5A, with holding torque 45Ncm (63.74oz.in).
Electrical Specification
- Manufacturer Part Number: 17HS15-1504S-X1
- Motor Type: Bipolar Stepper
- Step Angle: 1.8 deg
- Holding Torque: 45Ncm(63.74oz.in)
- Rated Current/phase: 1.50A
- Phase Resistance: 2.3ohms
- Inductance: 4.4mH ± 20%(1KHz)
Physical Specification
- Frame Size: 42 x 42mm
- Body Length: 39mm
- Shaft Diameter: 5mm
- Shaft Length: 24mm
- D-cut Length: 15mm
- Number of Leads: 4
- Lead Length: 1000mm
- Weight:
