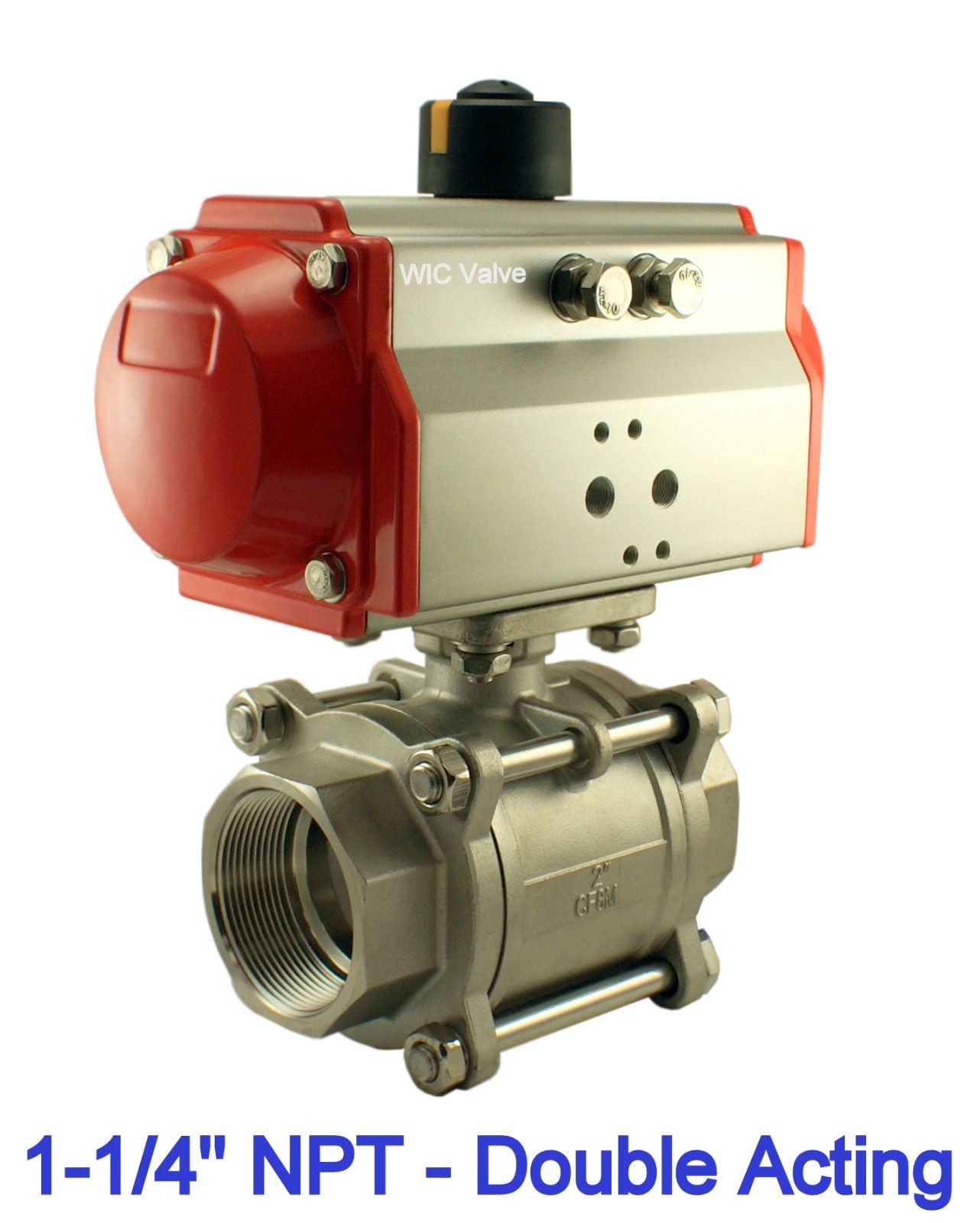

1.25" Inch Pneumatic Stainless Steel Industrial Air Actuated Ball ValveDouble Acting (Air Return)
WIC Valve PVD series 1-1/4" NPT pneumatic air actuated valve equipped with a stainless steel 3-piece ball valve, it allows a easy installation. PVD series double acting air actuated valve use pressurizedair to open and close the ball valve. The characteristic of the air actuated ball valve is that it has high flow rate, the full port straight through ball valve allows the service media such as air, gas, liquid, steam and water flow through directly without reducing the flow speed. The 316 stainless steel ball valve comes with Teflon seal which can be used at a high operating temperature and pressure applications. Ideal for the hazardous environments.
PVD Series Pneumatic Air Actuator Ball ValveSpecifications:
Model Number: PVD-1 1/4-T
Valve Type: 2 Way
Service Media: Air, Gas, Liquid, Water, Steam
Operation Model: Air Actuated Double Acting (Air Return)
Actuator Operating Pressure: 100 PSI Standard
Body Material: 316 Stainless Steel / CF8M
Seal Material:Teflon (PTFE)
Operating Pressure: 0 to 1000 PSI at 100 °F
Media Temperature: -51 to 230 °C (-60 to 450 °F)
Ambient Temperature: -20 to 80 °C (-4 to 176 °F)
Port Size: 1-1/4" NPT Female Port
Installation Hardware:2 Pieces Tube OD 1/4" X Thread 1/8" Male Straight Connector Fittings Air Actuator Specifications:Pneumatic Actuator SpecificationsActuator StandardISO 5211, NAMUR, DIN3337Operating Pressure RangeMin: 45 PSI - Max:120 PSIOperatingMediaPressurized Filter AirOperating Temperature–20 to 80°C
3 Pieces Stainless Ball Valve Specification:
Ball Valve Material: S316 Stainless Steel
Operating Pressure: 3/8" to 2" : 1000 PSI @ 100°F WOG
Operating Temperature: -60 to 450°F
Port Style: Full Port
Port Connection: FNPT
Mounting Standard: ISO 5211, DIN 3203-M3
Ball Valve Parts and MaterialsPart NameMaterialQuantityBallSS 3161BodyConnectorSS 316 / CF8M1Body Connector BoltSS 3044Body Connector NutSS 3044Body Connector WasherSS 3044CAPSS 3161Gland NutSS 3041Joint GasketPTFE1SeatPTFE2StemSS 3161Stem NutSS 3041Stem PackingPTFE1Stem WasherSS 3041Thrust Valve PVD Series Double Actinv Air Actuator Internal Structure:
