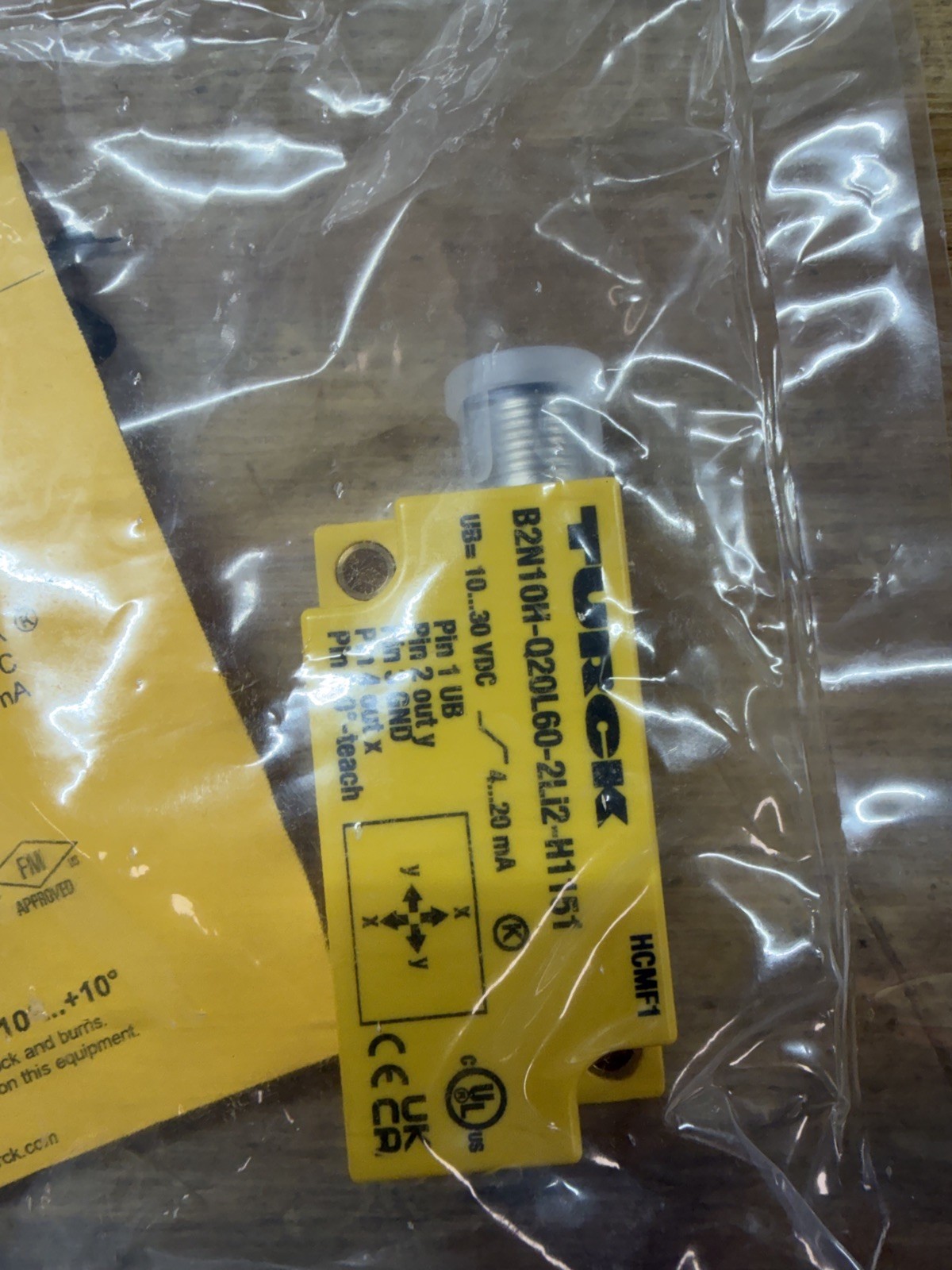

TURCK’s new dual axis inclinometer sensor for angular tilt detection features compact
rectangular housings, and will sense ±10, ±45, ±60 and ±85 degrees of angular displacement.
Inclinometer sensors may be used in a wide variety of industries to solve unique response
requirements.
At the heart of the TURCK inclinometer is a MEMS (micro-electro-mechanical system) device
that incorporates a micro-electro-mechanical capacitive element into the sensor that utilizes
two parallel plate electrodes, one stationary and one attached to a spring-mass system.
Movement produces deflection in the non-stationary electrode. This results in a measurable
change in the capacitance between the two plates that is proportional to the angle of
deflection. These signals are conditioned to provide two voltage outputs (0.1-4.9 VDC) or two
current outputs (4-20 mA).
The inclinometer is IP 67 rated, with a
temperature range of -22 to 158°F that
permits its use in many applications, including:
• Industrial equipment: levers, pedals, flaps,
mixing machines, hydraulic jacks, dancers and
rotary tables
• Mobile vehicles: cranes, fire trucks, bucket
trucks and construction vehicles
• Vertical and horizontal
drills used in tunnel and
road construction and immersion equipment
• Offshore plants: platforms, cranes
• Conveyors
Inclinometer specifications:
Operational voltage: 10-30 VDC
Output voltage (2LU3 only): 0.1-4.9 V
Output current (2Li2 only): 4-20 mA
No-load current I/O: < 20 mA
Rated insulation voltage: < 0.5 kV
Wire-break protection /
Reverse polarity protect.: yes
Output function: 4-wire, analog output
Repeatability: < 0.2 % of measuring range [A to B]
< 0.1 %, after 0.5 h warm-up time
Output recovery time: < 12 ms
0.05-0.1 s (time for the output signal
to achieve 90% full scale, if the angle
Response time:
changes from the beginning to the end
of the measuring range)
Housing: rectangular, Q20L60
Dimensions: 60 x 30 x 20 mm
Housing material: plastic, PBT-GF20-V0
Connection: connector, M12 x 1
Vibration resistant: 55 Hz (1 mm)
Shock resistance: 30 g (11 ms)
Ambient temperature (std): -30 to +70°C (-22 to +158°F)
Extended temperature: -40 to +70°C (-40 to +158°F)
with /S97 option only
Degree of protection: IP 67
