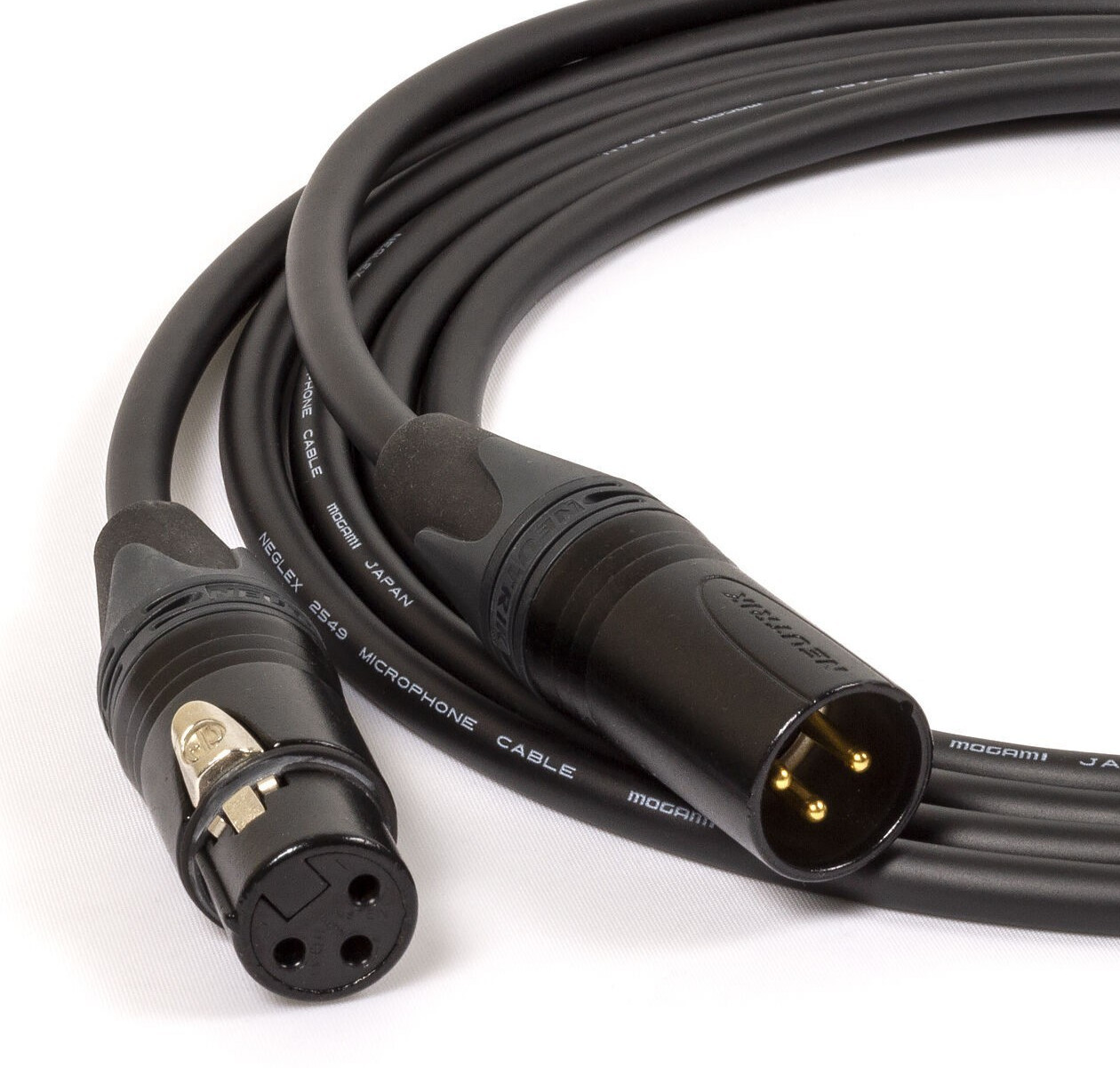

x\'FT Mogami 2549 Neutrik Gold XLR-M male to XLR-F Female balance Star Quad Cable For Sale

Black 2 Conductor 22awg Long Run Neglex-Type Balanced Microphone Cable

W2549 has been designed using our famous Neglex OFC to provide the highest quality audio reproduction in any recording application. It features #22AWG conductors and extremely low capacitance. The 100% coverage served shield and twisted pair construction is excellent at preventing noise caused by electromagnetic interference. This cable is recommended when extended high frequencies are important or where long cable runs may be needed.

• No. of Conductor: 2
• Conductor Details: 30/0.12 OFC
• Conductor Size(mm²): 0.339mm² (#22 AWG)
• Insulation Ov. Dia.(mm): 1.9Ø (0.075\")
• Insulation Material: XLPE (Cross-Linked Polyethylene)
• Insulation Colors: Blue / Clear
• Shield: Served Approx. 64/0.18A
• Jacket Ov. Dia.(mm): 6.0Ø (0.236\")
• Jacket Material: Flexible PVC

• ELECTRICAL & MECHANICAL CHARACTERISTICS
• Part No.: W2549
• DC Resistance at 20°C: Inner Cond.: 0.058Ω/m(0.018Ω/Ft)
• DC Resistance at 20°CShield: 0.013Ω/m(0.004Ω/Ft)
• Capacitance at 1kHz, 20°C (Partial C. Value)*: K0: 76pF/m(23pF/Ft)
• Capacitance at 1kHz, 20°C (Partial C. Value)*: K1: 11pF/m(3.4pF/Ft)
• Inductance between conductors at 1kHz. 20°C: 0.8µH/m(0.24µH/Ft)
• Electrostatic Noise**: 50mV Max.
• Electromagnetic Noise**: 0.15mV Max.
• Microphonics at 50KΩ Load**: 30m V Max.
• Voltage Breakdown: Must withstand at DC 125V/15sec.
• Insulation Resistance: 100000 M Ω x m Min. at DC 125V, 20°C
• Flex Life**: 14,500 cycles
• Tensile Strength: 657N
• Emigration: Non-emigrant to ABS
• Applicable Temperature: -20°C- +70°C(-4°F- +158°F)
• ** Using standard testing methods of Mogami Wire & Cable Corp.

• Manufacturer: Mogami
• MPN: W2549-00
• Model Number: W2549 Black
