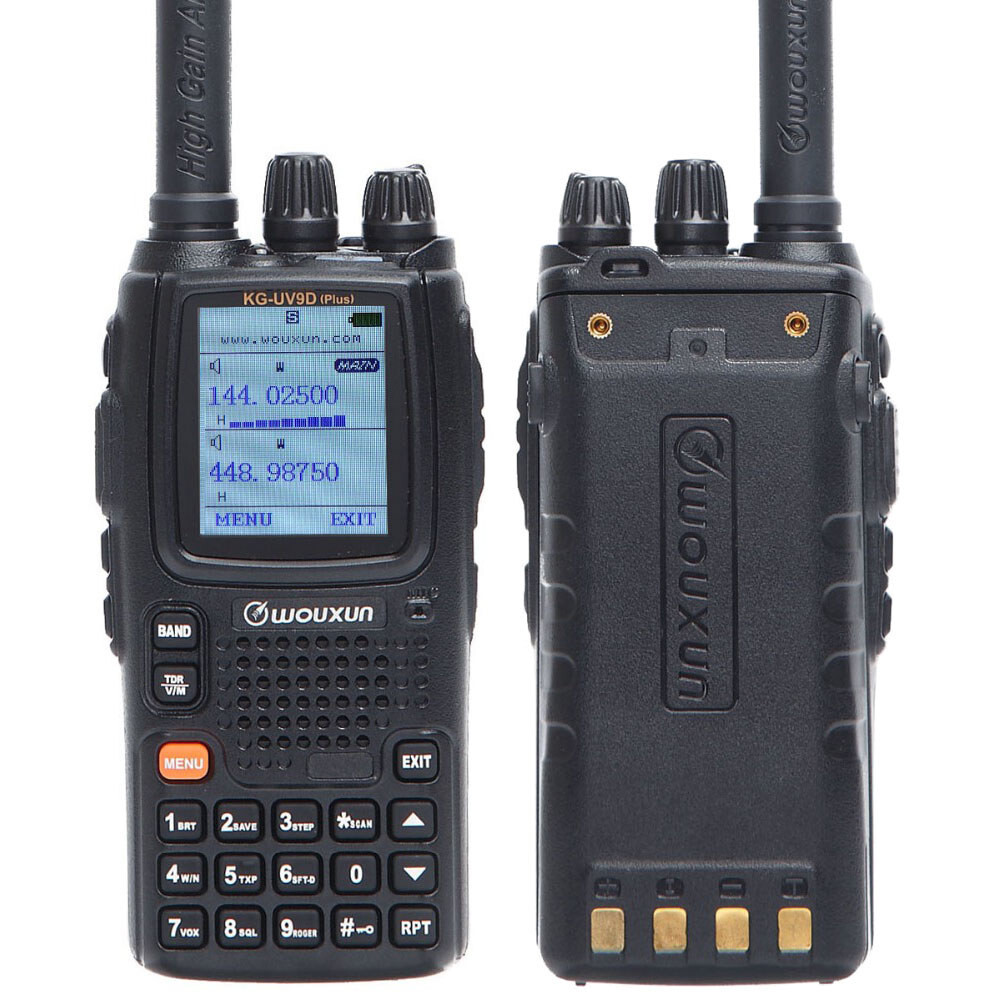

Wouxun KG-UV9D Plus Walkie Talkie 7-Band FM Radio DTMF 999CH VOX Two Way Radios
Detail
Upgrade Functions:
1. UHF/VHF or VHF/UHF Cross-Band Repeater
2. Completely turn off display screen background light
3. Completely trun off flickering indicator light
Basic Functions:
1. Duplex Work Mode
2. Duplex Work on A&B Areas (TX on one area while RX on the other area simultaneously)
3. Dual Receiving
4. RX on the same/different bands of A&B areas simultaneously
5. Large Colorful Screen
6. Simultaneously Scanning on Twin Band, Scanning on Limiting Frequency (Frequency Mode, Self-definition Scanned Frequency Range), Channel Groups Scanning
7. Memory Channels 999
8. Output Power VHF H: 5W, M: 2W, L:1W UHF H: 4W, M: 2W, L: 1W
9. QT/DQT Encoding/Decoding, QT/DQT Scan
10. Non-Standard CTCSS can be set arbitrarily
11. VOX
12. Multi Definition for Side keys
13. Amplitude-frequency PTT settings
14. Incoming Message Display Caller ID display
15. DTMF Encoding&Decoding
16. Channel groups scanning
17. All Calls,Group Calls And Selective Calls
18. SOS Function
19. Priority Scan Function
20. Remote Alarm
21. Wide/Narrow Bandwidth Selection (25KHZ/12.5KHz)
22. Voice Guide:English
23. English Screen Display
24. English Channel Name Edit
25. Bright Flashlight illumination
26. Single-Tone Pulse Frequency: 2100Hz/1750Hz/1000Hz/1450Hz (signalling for activating repeater)
27. Reverse Frequency
28. Stopwatch
Wide
Narrow
Type of Modulation
16K F3E
11K F3E
Adjacent Channel Power
≥70dB
≥60dB
Spurious Response
≥60dB
≥60dB
Audio Response
+1~-3dB(0.3~3KHz)
+1~-3dB(0.3~3KHz)
Max Frequency Deviation
±5KHz
±2.5KHz
Frequency Stability
±2.5ppm
Audio Distortion
≤5%
Output Power
VHF H:5W, M:2W, L:1W
UHF H:4W, M:2W, L:1W
Receiver
Wide
Narrow
Adjacent Channel Selectivity
≤70dB
≤60dB
Inter Modulation
≤65dB
≤60dB
Spurious Response
≤70dB
≤70dB
Audio Response
+1~-3dB(0.3~3KHz)
+1~-3dB(0.3~3KHz)
Signal to Noise Ratio
≥45dB
≥40dB
Audio Distortion
≤5%
Audio Power
≤500mW
Sensitivity
108-136MHz(AM) -106.0dbm SN 13dB
144-146MHz -119.0dbm SINAD 13dB
230-250MHz -116.0dbm SINAD 13dB
350-400MHz -119.0dbm SINAD 13dB
430-440MHz -119.0dbm SINAD 13dB
700-986MHz -96.0dbm SINAD 12dB
Integral Part
Frequency Range
Suitable for different countries or areas
1 TX:US:144-148MHZ(FM) 430-450MHZ(FM)
EU:144-146MHZ(FM) 430-440MHZ(FM)
2 RX: 76-108MHZ(FM)
108-136MHZ(Air ground)
144-146MHZ(FM)
230-250MHZ(FM)
350-400MHZ(FM)
430-440MHZ(FM)
700-985MHZ(FM)
Step
25KHz/50KHz/100KHz
Channel Number
999
Work Mode
F2D/F3E
Operating Temperature
-20~+40
Voltage
7.4VDC
Antenna Impedance
50Ω
Weight
490 g
Size
124.5X61.5X33.9 (mm)
Package Contents:
1 x WouXun KG-UV9D Plus Radio Body
1 x 2000mAh Li-ion Battery
1 x Car Charger Cable
1x Desktop Charger
1x AC Adapter
1 x Belt Clip
2 x SMA-Male Antenna
1 x Handstrap
1 x User\'s Manual
