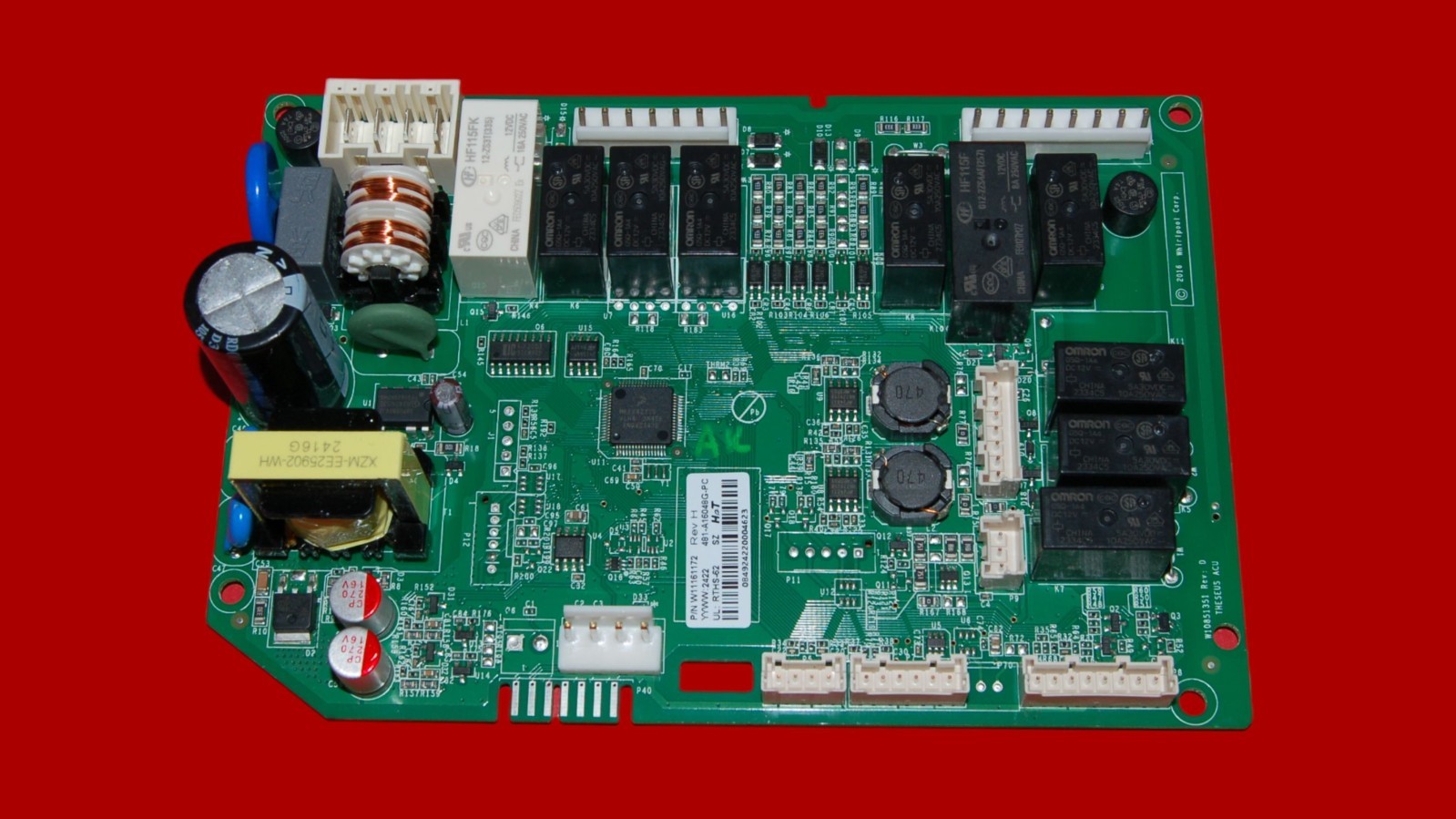

Kitchen-Aid, Maytag, Whirlpool Refrigerator Control Board – Part Number W11161172 | W11224256 (Pre-Owned/Used Tested)
This is a genuine factory original pre-owned refrigerator control board, expertly tested, cleaned, and fully inspected to ensure proper operation.
Only units that meet our performance standards are offered for sale.
Cross-Reference Part and Model Number Information:
Compatible Control Board Part #: W11224256 replaces AP6329805, 4844701, PS12349512, W11161172.
Compatible Model Numbers:
KRFF507HBL00
KRFF507HBS00
KRFF507HBS02
KRFF507HBS03
KRFF507HBS04
KRFF507HPS00
KRFF507HPS01
KRFF507HPS02
KRFF507HPS03
KRFF507HPS04
KRFF507HWH00
KRFF507HWH02
KRFF507HWH03
KRFF577KBS01
KRFF577KBS02
KRFF577KPS01
KRFF577KPS02
MFT2772HEZ00
MFT2772HEZ01
MFT2772HEZ02
MFT2772HEZ03
MFT2772HEZ04
WRF757SDHV00
WRF757SDHV02
WRF757SDHV03
WRF757SDHV04
WRF757SDHZ00
WRF757SDHZ01
WRF757SDHZ02
WRF757SDHZ03
WRF757SDHZ04
WRF767SDHV00
WRF767SDHV02
WRF767SDHV03
WRF767SDHV04
WRF767SDHZ00
WRF767SDHZ01
WRF767SDHZ02
WRF767SDHZ03
WRF767SDHZ04
Important Fitment Information
⚠️ Match the part number on your original control board exactly to W11161172 | W11224256 before ordering — many refrigerator control boards look identical but are NOT interchangeable, and model numbers alone don’t guarantee compatibility.
What’s Included
1 × Refrigerator Control Board – W11161172 | W11224256
No additional hardware or accessories included.
Common Reasons for Failure
- Power surges or electrical spikes can damage the refrigerator’s control circuitry.
- Failed relays affecting compressor, evaporator fan, or defrost heater operation.
- Moisture intrusion or condensation causes corrosion on connectors or components.
- Worn or cracked solder joints from repeated cooling cycles and vibration.
- Failed internal components are impacting temperature regulation or defrost timing.
Common Symptoms This Part May Fix
- Refrigerator not cooling or cooling inconsistently.
- The freezer is too warm or too cold.
- No response from the control panel or intermittent display issues.
- Frost buildup due to a failed defrost cycle.
- Error codes or intermittent operation.
(Symptoms vary by model and application)
BEFORE YOU BUY – VERIFY:
- Check your appliance’s model number – from the list of compatible Model Numbers provided.
- Compare our Part Number EXACTLY to your failed board – must match 100% – removal of your control board is required to find part number sticker.
- Verify board appearance matches our photos front AND back – wiring ports can differ even when the front looks identical – check both sides.
- Not sure? Message us your model # before purchasing – we’ll confirm compatibility.
Shipping Options
Fast and free shipping options are available at checkout.
Warranty And Assurance
6-Month Warranty included for peace of mind.
Specializing in appliance control boards since 2014.
All orders are carefully packaged for safe delivery.
A+ Accredited Business with the BBB.
