Description

All modifications must be installed by licensed mechanics and in compliance with your local modification style=\"margin-left:0px; margin-right:0px\">Feature:

• Provide better handing and comfort ride for you.
• Design for comfort suspension
• Heavy duty double convoluted Universal Rear Weld-On Triangulated 4 Link Suspension Kit with Two 2500 Air spring Bags & Rear Air spring Bag Mounts;
  for Ford F150/F250, for GMC Sierra；
  for Chevrolet Silverado;
  for Dodge Ram 1500 2500 3500, etc;
  for Most Pickup Trucks, Hotrod, Ratrod or Classic Car with 2.75\" Axle Tube.

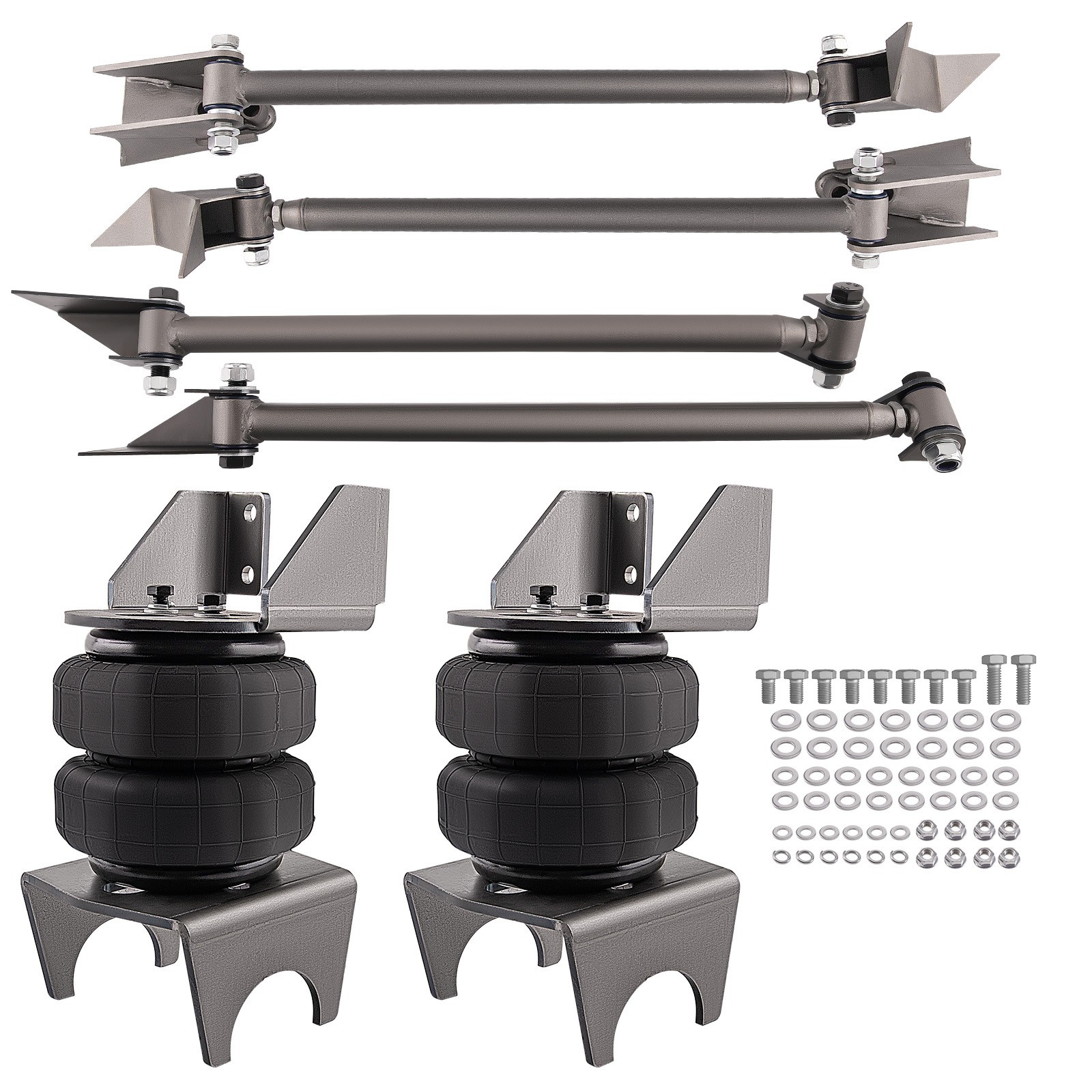

  Package Includes:

  4 xHeavy Duty Steel Bars
  4 x Rod Ends W/ Urethane Bushings
  2 x Weld-On Triangulated Frame Mounts
  2 x Weld-On Lower Axle Tube Mounts
  4 x Weld-On Center Link Axle Mounts
  2 x Weld-On Side Frame Mounts
  8 xButton Head Bolts with Nyloc Nuts
  2 xWeld-On LowerAxle Bag Mount
  2 xWeld-On Upper Frame Bag Mount
  2xStandard 2500 Single 1/2\"npt Port Air Spring Bags

  4 Link Bar Dimensions:
  Tubing Outside Diameter: 1.25\"
  Tubing Thick Wall: 0.197\"
  All Four Bars: 24.00\"
  (Center To Center Adjusted All The Way In)

  Specs of bag:
  2500 LBS
  Diameter: 6\"
  Extended: 8\"
  Closed: 2.75\"
  Hex Head Bolt A: M16*1.5*75-40
  Hex Head Bolt B: M16*1.5*90-40
  Two Top Mounting Holes: Approx 1-3/4\" from Eye to Eye
  Bottom has One Mounting Hole in Center
  All mounting holes are 3/8\"-16 UNC

  Note: The rod is available in silver and black, please refer to the actual product received.

  Notice:

  Please feel free to contact for whatever we can help!
  Instructions are Included
  We Recommend Professional Installation
