Standard Packing:1x Tuf-2000B Host2x Steel Belts1x TS-2 Ultrasonic Transducers(20-100mm)1x TM-1 Ultrasonic Transducers(50-700mm)1x 10 Meters Flow Signal Cable1 Set Of Connection Georgia And Screwdriver1x User Manual

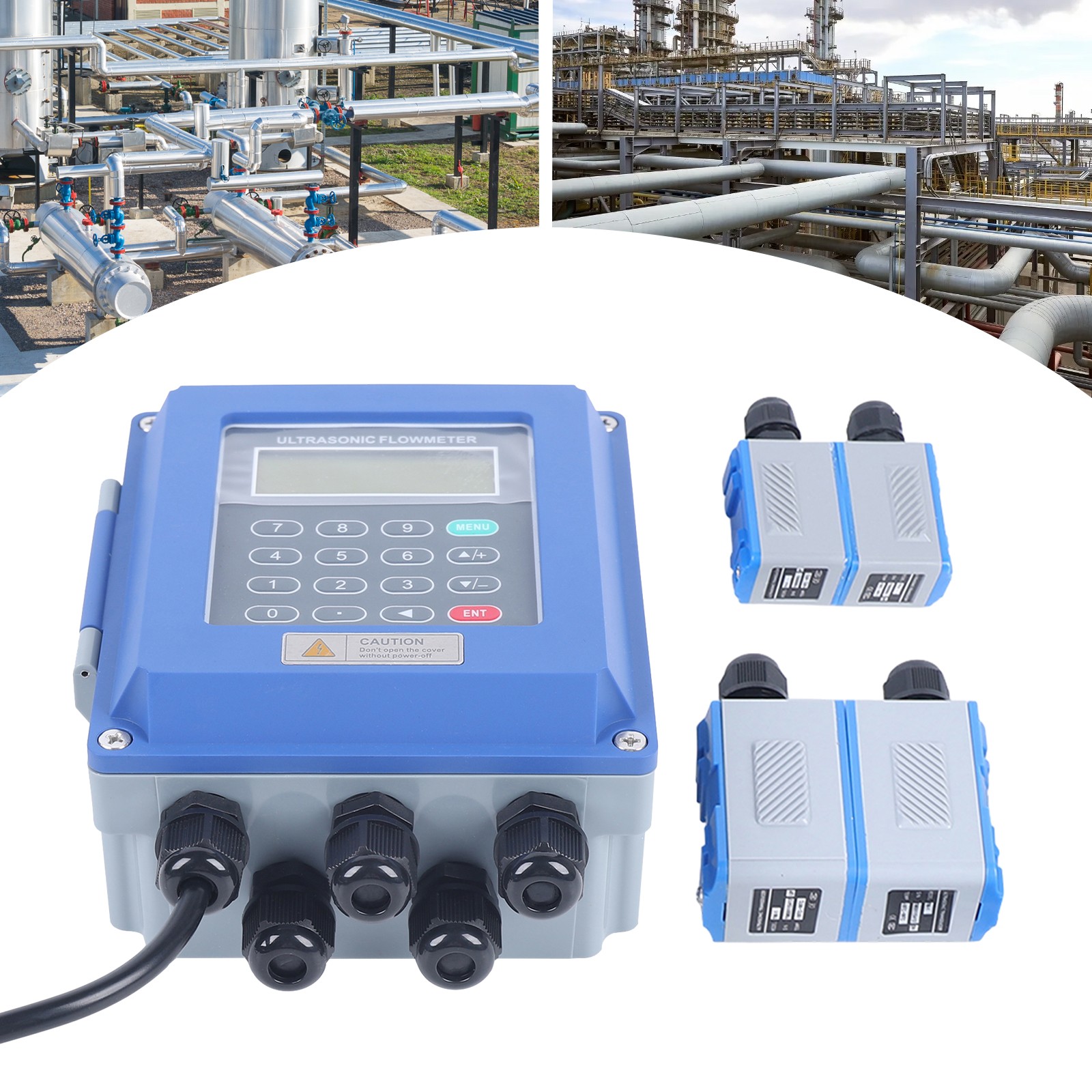

Wall Mounted Digital Ultrasonic Flowmeter Water Flow Meter & TM-1 TS-2 Ultrasonic Flow Meter TUF-2000B DN20-700mm & TM-1 TS-2 SENSOR IP67 ProtectionFeatures:Working Environment
Main Unit
Transducer
Protection Level
IP67
IP68
Humidity
≤85%RH
Temperature
-20~60°C
-30~90°C
Basic Parameters
Main Unit Protection Level: IP67
Transducer Protection Level:IP68
Main Unit Working Environment: -20~60°C
Transducer Working Environment: -30~90°C
Humidity: ≤85%Rh
Accuracy:≤1%
Velocity Range: 0~±10m/s, Bi-Directional Measurement
Suitable Pipe Diameter
TS-2 Ultrasonic Transducers20-100mm
TM-1 Ultrasonic Transducers50-700mm
Temperature: -30~90°C
Type Of Liquid:Single Liquid Can Transmit Ultrasound, Such As Water, Sea Water, Sewage, Oil, Alcohol, Etc.
Pipe Material:Steel, Stainless Steel, Cast Iron, Copper, PVC, Aluminum, Glass Steel, Etc. Liner Is Allowed.
Signal Output:1 Way 4-20ma Output, 1 Way Oct Pulse Output, 1 Way Relay Output
Signal Input: 3 Way 4-20ma Input, Achieve To Heat Measurement By Connecting Pt100 Platinum Resistor.
Interface: Rs485, Support Modbus
Data Storage: SD Card Regularly Store The Pre-Set Results(Without SG Card )
Power Supply: DC8~36V Or AC85~264V
Multiple Installation Methods: Installation Methods:Wall Mounting And Two Ways Of Din-Rail Mounting
Host Size: About 2kg
Standard Packing:
1x Tuf-2000B Host
2x Steel Belts
1x TS-2 Ultrasonic Transducers(20-100mm)
1x TM-1 Ultrasonic Transducers(50-700mm)
1x 10 Meters Flow Signal Cable
1 Set Of Connection Terminal And Screwdriver
1x Silicone Sealants
1x User Manual
On Sep 1, 2026 at 02:35:57 PDT, seller added the following information:
