WAVLINK Outdoor WiFi 6 Series – Find Your Perfect Model

Quick Product Comparison — Core Specs

ModelWiFi StandardMax SpeedFrequencyAntennasEthernet PortWN573HX1WiFi 6AX18002.4G / 5G4×8dBi Omni (Fiberglass)1×GigabitWN573HX3WiFi 6AX30002.4G / 5G4×8dBi Omni (Fiberglass)1×GigabitWN588HX3WiFi 6AX30002.4G / 5G6×7dBi Omni1×Gigabit

Quick Product Comparison — Features & Coverage

ModelIP RatingPoE SupportMax DevicesMesh SupportKey FeatureWN573HX1IP67Active + Passive128✔ YesBudget WiFi 6, AX1800WN573HX3IP67Active + Passive128✔ YesAX3000, fiberglass antennasWN588HX3IP67Active + Passive256✔ Yes6 antennas, Fat/Fit AP modes

Purchase Recommendations & Best Use Cases

💰 For Budget‑Conscious Outdoor WiFi 6: Choose WN573HX1 (AX1800 4×8) — solid WiFi 6 performance, IP67 waterproof, and active/passive PoE. Perfect for home backyards, small patios, and light commercial outdoor use.

🌳 For Wider Coverage & More Devices: Choose WN573HX3 (AX3000 4×8) — higher throughput (3000Mbps) and fiberglass omni antennas provide extended range and stable connections for community streets, factories, and parks.

🏆 For High‑Density & Large‑Area Deployments: Choose WN588HX3 (AX3000 6×7) — six high‑gain omni antennas deliver 360° coverage, supporting up to 256 devices. Ideal for stadiums, festivals, large campuses, and enterprise networks with Fat/Fit AP flexibility.

💡 All Models Feature: IP67 weatherproof enclosures, 15kV ESD & 6kV lightning protection, flexible Active/Passive PoE, multiple operation modes (Mesh/AP/Router/Repeater), and seamless Mesh roaming. Backed by WAVLINK's worry‑free warranty and life‑long technical support.

WN573HX1 – AX1800 WiFi 6 · 4 x 8dBi Omnidirectional Antennas

WAVLINK Professional Outdoor Router/AP/Repeater, Enjoy Super‑Speed WiFi6 Anytime & Anywhere

Features:

• 【⭐Designed for Harsh Outdoor Conditions】 Equipped with IP67 waterproof enclosure, 15kV ESD protection and 6kV lightning protection, it can work normally in rain/snow/wind/thunder and other bad weather. The fiberglass tube high‑gain antennas can not only withstand strong wind and corrosion, but also boost the WiFi coverage, making it more suitable for outdoor use.
• 【⭐Enjoy True WiFi 6 Speed】 The next generation of WiFi, complies with IEEE 802.11 ax/ac/a/b/g/n standards. Supports dual‑band maximum speed up to 5GHz 1201Mbps and 2.4GHz 574Mbps, avoiding wireless interference & congestion and offering lightning‑fast Internet speed. With WAVLINK WN573HX1, you can enjoy HD videos, smooth gaming, etc. even outdoors.
• 【⭐Optional PoE Power Supply】 Supports 802.3AF/AT active PoE and passive PoE, transferring data and charging the product with a single Ethernet cable, so you can install the product outdoors where power outlet is not available. Note: The PoE converter is not waterproof. Please use CAT5E or above cable and the length should not exceed 100m/328ft.
• 【⭐Seamless WiFi Roaming】 The 4x8dBi omnidirectional antennas and two built‑in high‑power amplifiers provide extreme WiFi coverage and penetration. Also supports Mesh technology, one‑click brings more device connections, greatly expanding the WiFi coverage, and eliminating every network dead zone.
• 【⭐Multiple Modes, Flexible Use】 Supports Mesh, AP, Router, Repeater, AP+Repeater and other modes to meet your different needs and apply to more outdoor connection scenarios. Router/AP Mode is ideal for converting wired connections into wireless networks, while under Mesh Mode you can enjoy seamless WiFi with a single network name and password.

WAVLINK Professional Outdoor Router/AP/Repeater, Enjoy Super‑Speed WiFi6 Anytime & Anywhere

WN573HX1 is a high‑performance outdoor router/AP/repeater specially designed for outdoor use: Robust weatherproof case and 15kV ESD protection ensure continuous operation and stable connection under harsh outdoor conditions; The 4 x 8dBi omnidirectional fiberglass tube antennas feature high strength and high precision, a long service life and excellent wireless performance; Supports IEEE 802.11 ax/ac/a/n/g/b standards, and provides blazing‑fast Internet speeds of 1800Mbps (2.4GHz 574Mbps+5GHz 1201Mbps); Supports MU‑MIMO and Beamforming technology, allowing up to 128 devices to be connected simultaneously in a wider range.

Fiberglass Tube High Gain Antennas

4 x 8dBi omnidirectional antennas are covered by strong fiberglass tube, expanding signal coverage and withstanding harsh conditions, providing superior WiFi performance and longer service life.

IP67 Waterproof Enclosure

Equipped with an IP67 enclosure with excellent dustproof and waterproof capabilities, this product can operate normally in rainy days, snowy days, thunderstorms, sandstorms and other severe weather.

PoE Power Supply

Both active and passive PoE are supported. You can install the corresponding PoE converter according to your needs. Passive PoE converter included.

574Mbps on 2.4G & 1201Mbps on 5G

Dual band AX1800 provides smoother online surfing experience and stronger anti‑interference capability. 2.4G band is commendable for web browsing and social media use, while 5G band is ideal for video streaming or gaming.

High Power Amplifiers

Dual integrated signal boosters efficiently strengthen the wireless performance. The PA (power amplifier) increases the power output while the LNA (low‑noise amplifier) minimizes additional noises and increases the wireless signal.

Advanced WiFi Safeguard

WPA2‑PSK & WPA2/WPA3‑MIX wireless security protocols are supported, fully protecting your private information and keeping your WiFi connection secure at all times.

Specification

• Model: WL‑WN573HX1
• Product Size (without antennas): 24x24x7cm / 9.4x9.4x2.8in
• PoE Converter Size: 4.4x3.7x2.2cm / 1.7x1.5x0.9in
• Antennas Length: 40cm / 15.7in; Ethernet Cable: 100cm / 39.4in; Power Adapter Cable: 130cm / 51.2in
• Product Weight (without antennas): 1109g / 39.1oz
• Standard: IEEE 802.11 ax/ac/a/n/g/b
• Frequency Band/Speed: 2.4GHz(574Mbps) + 5GHz(1201Mbps)
• Wireless Security: WPA2‑PSK, WPA2/WPA3‑MIX
• Antennas: 4 x 8dBi Omnidirectional Antennas
• PAIR/RESET LED: Blue
• PoE Converter Status LED: Green

Features

• Robust weatherproof case, IP67 waterproof rating and built‑in lightning arrester (15kV ESD) withstands harsh outdoor conditions.
• Supports 802.3 AT/AF active PoE and passive PoE to supply power.
• Fiberglass tube antennas for high precision, corrosion resistance, long life, strong wind resistance.
• 4x8dBi detachable omnidirectional external antennas provide excellent wireless performance.
• Supports dual band (2.4G 574Mbps+5G 1201Mbps) with combined speeds of up to 1800Mbps.
• Mesh technology makes you enjoy seamless roaming throughout the house with a single network name and password.
• Complies with IEEE 802.11 ax/ac/a/n/g/b standards.
• Supports Mesh/AP/Router/Repeater/AP+Repeater modes.
• Encryption type: WPA2‑PSK, WPA3/WPA2‑MIX.

Warm Tips

• ① The PoE converter is not waterproof, please install it indoors.
• ② Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
• ③ Please install the product 2‑3 meters above the ground for better performance.
• ④ Under the mesh mode, WN573HX1 ONLY supports interconnection with WN531AX2, WN583AX1 and WN573HX1.

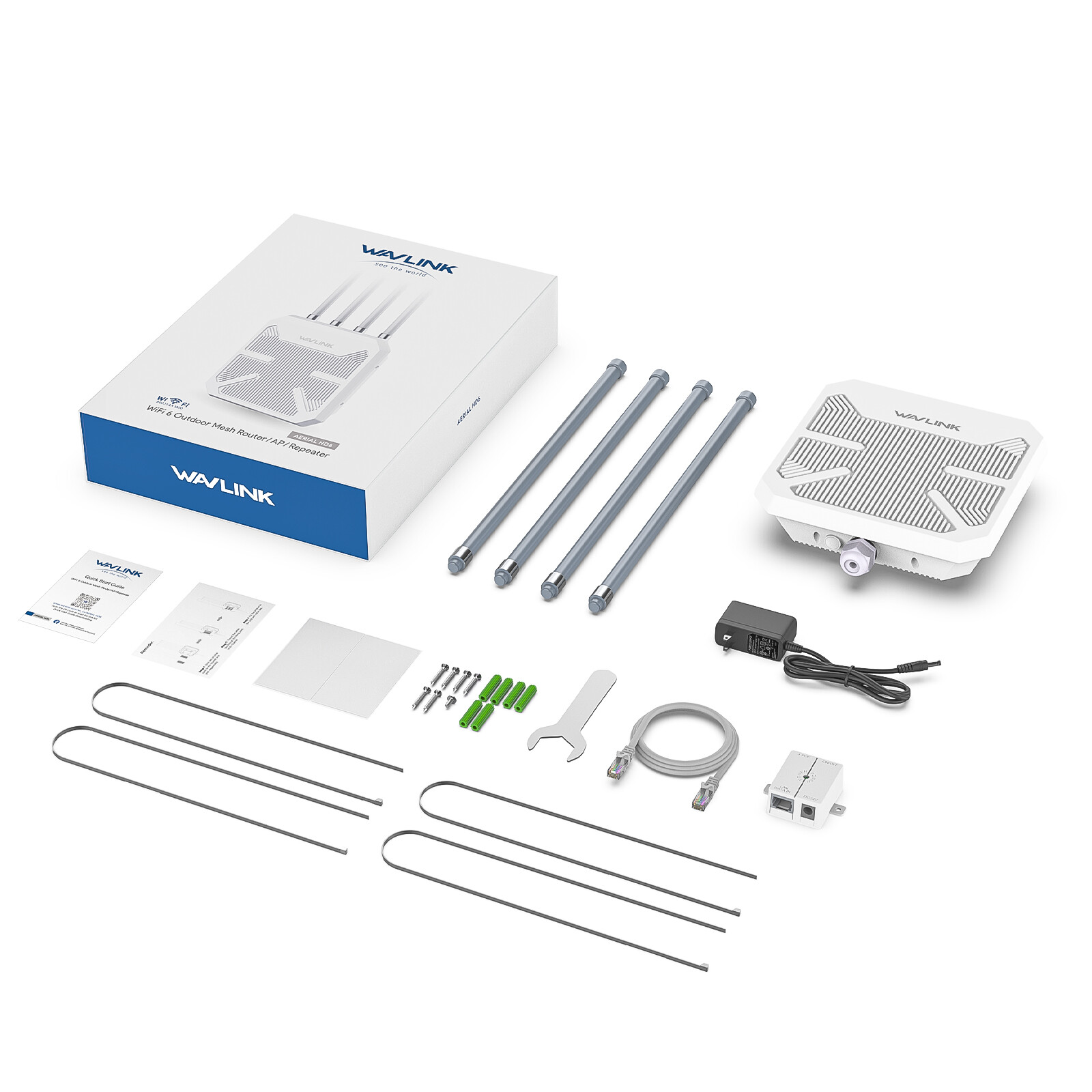

In the Box

• 1 x Wi‑Fi6 Outdoor Mesh Router/AP/Repeater
• 4 x Omni Antennas
• 4 x Cable Ties
• 1 x Ethernet Cable Connectors
• 1 x Quick Installation
• 1 x Wrench
• 2 x Silicone Pads
• Several Screws
• Passive PoE (Optional):
• 1 x 54V Power Adapter
• 1 x PoE Converter
• 1 x Ethernet Cable

WN573HX3 – AX3000 WiFi 6 · 4 x 8dBi Omnidirectional Antennas

WAVLINK Professional Outdoor Access Point, Enjoy Super‑Speed WiFi6 Anytime & Anywhere

Features:

• 【⭐Designed for Harsh Outdoor Conditions】 Equipped with IP67 waterproof enclosure, 15kV ESD protection and 6kV lightning protection, it can work normally in rain/snow/wind/thunder and other bad weather. The fiberglass tube high‑gain antennas can not only withstand strong wind and corrosion, but also boost the WiFi coverage, making it more suitable for outdoor use.
• 【⭐Enjoy True WiFi 6 Speed】 The next generation of WiFi, complies with IEEE 802.11 ax/ac/a/b/g/n standards. Supports dual‑band maximum speed up to 5GHz 2402Mbps and 2.4GHz 573Mbps, avoiding wireless interference & congestion and offering lightning‑fast Internet speed. With WAVLINK WN573HX3, you can enjoy HD videos, smooth gaming, etc. even outdoors.
• 【⭐Optional PoE Power Supply】 Supports 802.3AF/AT active PoE and passive PoE, transferring data and charging the product with a single Ethernet cable, so you can install the product outdoors where power outlet is not available. Note: The PoE converter is not waterproof. Please use CAT5E or above cable and the length should not exceed 100m/328ft.
• 【⭐Seamless WiFi Roaming】 The 4x8dBi omnidirectional antennas and two built‑in high‑power amplifiers provide extreme WiFi coverage and penetration. Also supports Mesh technology, one‑click brings more device connections, greatly expanding the WiFi coverage, and eliminating every network dead zone.
• 【⭐Multiple Modes, Flexible Use】 Supports Mesh, AP, Router, Repeater, AP+Repeater and other modes to meet your different needs and apply to more outdoor connection scenarios. Router/AP Mode is ideal for converting wired connections into wireless networks, while under Mesh mode you can enjoy seamless WiFi with a single network name and password.

Fiberglass Tube High Gain Antennas

4 x 8dBi omnidirectional antennas are covered by strong fiberglass tube, expanding signal coverage and withstanding harsh conditions, providing superior WiFi performance and longer service life.

IP67 Waterproof Enclosure

Equipped with an IP67 enclosure with excellent dustproof and waterproof capabilities, this product can operate normally in rainy days, snowy days, thunderstorms, sandstorms and other severe weather.

PoE Power Supply

Both active and passive PoE are supported. You can install the corresponding PoE converter according to your needs. Passive PoE converter included.

573Mbps on 2.4G & 2402Mbps on 5G

Dual band AX3000 provides smoother online surfing experience and stronger anti‑interference capability. 2.4G band is commendable for web browsing and social media use, while 5G band is ideal for video streaming or gaming.

High Power Amplifiers

Dual integrated signal boosters efficiently strengthen the wireless performance. The PA (power amplifier) increases the power output while the LNA (low‑noise amplifier) minimizes additional noises and increases the wireless signal.

Advanced WiFi Safeguard

WPA2‑PSK & WPA2/WPA3‑MIX wireless security protocols are supported, fully protecting your private information and keeping your WiFi connection secure at all times.

Specification

• Model: WL‑WN573HX3
• Product Size (without antennas): 24x24x7cm / 9.4x9.4x2.8in
• PoE Converter Size: 4.4x3.7x2.2cm / 1.7x1.5x0.9in
• Antennas Length: 40cm / 15.7in; Ethernet Cable: 100cm / 39.4in; Power Adapter Cable: 130cm / 51.2in
• Product Weight (without antennas): 1109g / 39.1oz
• Standard: IEEE 802.11 ax/ac/a/n/g/b
• Frequency Band/Speed: 2.4GHz(573Mbps) + 5GHz(2402Mbps)
• Wireless Security: WPA2‑PSK, WPA2/WPA3‑MIX
• Antennas: 4 x 8dBi Omnidirectional Antennas
• PAIR/RESET LED: Blue
• PoE Converter Status LED: Green

Features

• Supports for dual band (2.4G 573Mbps+ 5G 2402Mbps) with the aggregated speeds up to 3000Mbps.
• Supports one WAN/LAN Ethernet Gigabit port.
• Complies with IEEE 802.1 ax/ac/n/g/a/b standards.
• Supports AP/Range Extender/Mesh Router/Mesh Extender mode.
• Encryption type: OPEN, WPA2‑PSK, WPA3/WPA2 MIX.
• 2x8dBi 5GHz and 2x8dBi 2.4GHz detachable omni‑directional external antennas provide excellent wireless performance.
• Glass tube antenna for high precision, corrosion resistance. long life, strong wind resistance.
• Seamless and stable WiFi Mesh makes you enjoy seamless roaming throughout the house with a single network name and password.
• Robust weatherproof case and IP67 waterproof grade withstand harsh outdoor conditions.
• Supports 802.3 AT/AF Active PoE and Passive PoE to supply power.

Warm Tips

• ① The PoE converter is not waterproof, please install it indoors.
• ② Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
• ③ Please install the product 2‑3 meters above the ground for better performance.
• ④ Under the mesh mode, WN573HX3 supports interconnection with WN586X3, WN572HP3(*Latest firmware required) and WN573HX3.

In the Box

• 1 x AX3000 WiFi 6 Outdoor Access Point
• 4 x Omni Antennas
• 4 x Cable Ties
• 1 x Ethernet Cable Connectors
• 1 x Quick Installation
• 1 x Wrench
• 2 x Silicone Pads
• Several Screws
• Passive PoE:
• 1 x 54V Power Adapter
• 1 x PoE Converter
• 1 x Ethernet Cable

WN588HX3 – AX3000 WiFi 6 · 6 x 7dBi Omni Antennas

WAVLINK WiFi6 Outdoor Access Point, Dual Band 2.4G+5G AX3000 Long Range Outdoor WiFi Mesh Extender with PoE/6x7dBi High‑gain Antennas/IP67 Weatherproof Enclosure/Signal Booster Amplifier

Features:

• 【🌐Enjoy True WiFi 6 Speed】 The next generation of WiFi, complies with IEEE 802.11 ax/ac/a/b/g/n standards. Supports dual‑band maximum speed up to 5GHz 2402Mbps and 2.4GHz 573Mbps, avoiding wireless interference & congestion and offering lightning‑fast Internet speed. With WAVLINK WN588HX3, you can enjoy HD videos, smooth gaming, etc. even outdoors.
• 【🌐Seamless WiFi Roaming】 The 6x7dBi omni‑directional antennas and high‑power amplifiers provide extreme WiFi coverage and penetration. Also supports Everything Mesh technology, one‑click brings more device connections, greatly expanding the WiFi coverage, and eliminating every network dead zone.
• 【🌐Multiple Modes, Flexible Use】 Supports Mesh, AP, Router, Repeater, AP+Repeater and other modes to meet your different needs and apply to more outdoor connection scenarios. Router/AP mode is ideal for converting wired connections into wireless networks, while under Mesh mode you can enjoy seamless WiFi with a single network name and password.
• 【🌐Powered by PoE and Flexible Installation】 Supporting 802.3af/802.3at/48V PoE Power over Ethernet with the included PoE adapter, this device offers flexible deployment and convenient installation with its mounting bracket design. It can be easily mounted on poles or walls.

Specification

• Model: WL‑WN588HX3
• Product Size: 17x17.3x5.1cm / 6.7x6.8x2in
• PoE Converter Size: 4.4x3.7x2.2cm / 1.7x1.5x0.9in
• Ethernet Cable: 100cm / 39.4in; Power Adapter Cable: 130cm / 51.2in
• Product Weight: 552g / 19.5oz
• Standard: IEEE 802.11 ax/ac/a/n/g/b
• Frequency Band/Speed: 2.4GHz(573Mbps) + 5GHz(2402Mbps)
• Wireless Security: WPA2‑PSK, WPA2/WPA3‑MIX
• Antennas: 6 x 7dBi Directional Antennas
• PAIR/RESET LED: Blue
• PoE Converter Status LED: Green

Features

• Supports for dual band (2.4G 573Mbps+ 5G 2402Mbps) with the aggregated speeds up to 3000Mbps.
• Supports one WAN/LAN Ethernet Gigabit port.
• Complies with IEEE 802.1 ax/ac/n/g/a/b standards.
• 3x7dBi 5GHz, 3x7dBi 2.4GHz detachable omni‑directional external antennas provide excellent wireless performance.
• Supports Router/AP/Range Extender/Mesh Router/Mesh Extender mode.
• Encryption type: OPEN, WPA2‑PSK, WPA3/WPA2 MIX.
• Seamless and stable WiFi Mesh makes you enjoy seamless roaming throughout the house with a single network name and password.
• Robust weatherproof case and IP67 waterproof grade withstand harsh outdoor conditions.
• Supports 802.3 AT/AF Active PoE and Passive PoE to supply power.
• Supports Fat AP Mode.
• Supports Fit AP Mode with WAVLINK AC controller.

Warm Tips

• ① The PoE converter is not waterproof, please install it indoors.
• ② Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
• ③ Under the mesh mode, WN588HX3 supports interconnection with WN586X3, WN583AX3 and WN573HX3.
• ④ The real performance of the product may vary in accordance with different environmental conditions.

In the Box

• 1 × AX3000 WiFi 6 Outdoor Access Point
• 4 × Plastic Cable Ties
• 1 × Main Body Holder
• 6 x 7dBi Antennas
• 1 × Wrench
• 1 × 54V Power Adapter
• 1 × PoE Converter
• 1 × Ethernet Cable
• 1 × PWM M3×5×6MM Screw
• 6 × KA M3×20×5.2MM Screws
• 6 × Φ6.5x25MM Screw Plugs
• 1 × Quick Start Guide

• 3 Powerful WiFi 6 Models – From AX1800 to AX3000, choose the right speed and antenna configuration for your outdoor needs.
• IP67 Weatherproof – Built to withstand extreme temperatures, rain, snow, and lightning with 15kV ESD protection.
• Flexible PoE Power – Active & passive PoE support for installation anywhere, even without power outlets.
• Seamless Mesh Roaming – Enjoy uninterrupted connectivity across multiple Wavlink devices with a single network name.
• Multiple Operating Modes – Mesh, AP, Router, Repeater, AP+Repeater for any deployment scenario.
• Fat/Fit AP Flexibility – WN588HX3 supports both standalone and controller‑managed modes for enterprise scalability.
