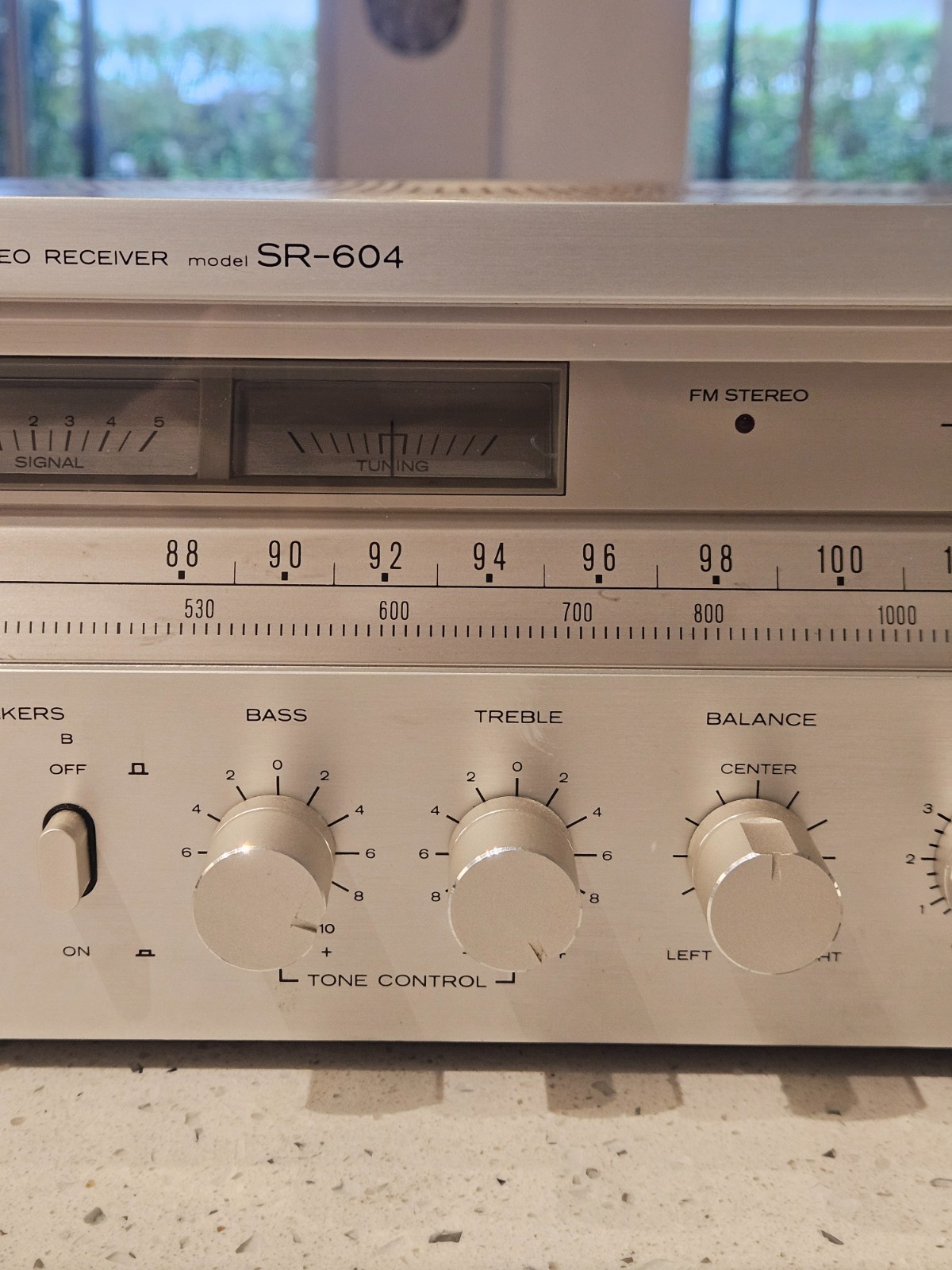

Vintage Hitachi SR-604 Class G AM/FM Stereo Receiver – 1979 JapanBeautiful original Hitachi SR-604 stereo receiver from 1979–1980. This classic features Hitachi’s innovative Class G (Dynaharmony) amplification that delivers a clean 35 watts per channel RMS into 8 ohms, with power doubling to approximately 70 watts on musical peaks for excellent dynamic range and low distortion (0.05% THD).Key Features:
- AM/FM stereo tuner with illuminated signal and tuning meters
- Large easy-to-read frequency dial with flywheel tuning
- LED power level indicators
- Bass, Treble, Balance, and Volume controls
- Loudness, Subsonic Filter, and FM Muting switches
- Tape monitor with dubbing capability
- Phono (MM) input plus auxiliary/tape inputs
- A/B speaker switching (two pairs)
- Wood-grain top cabinet with silver faceplate – classic late-1970s look
Specifications
Tuning range: FM, MW
Power output: 35 watts per channel into 8Ω (stereo)
Frequency response: 10Hz to 30kHz
Total harmonic distortion: 0.05%
Damping factor: 40
Input sensitivity: 3mV (MM), 150mV (line)
Signal to noise ratio: 70dB (MM), 90dB (line)
Dimensions: 435 x 144 x 350mm
Weight: 8kg
Year: 1979
Due to the age of this receiver this is AS IS and NO RETURNS. Good Luck & Happy offerding!
