Vintage Western Electric / Bell System LC11B Tie Trunk PBX Circuit Card – Circa 1982

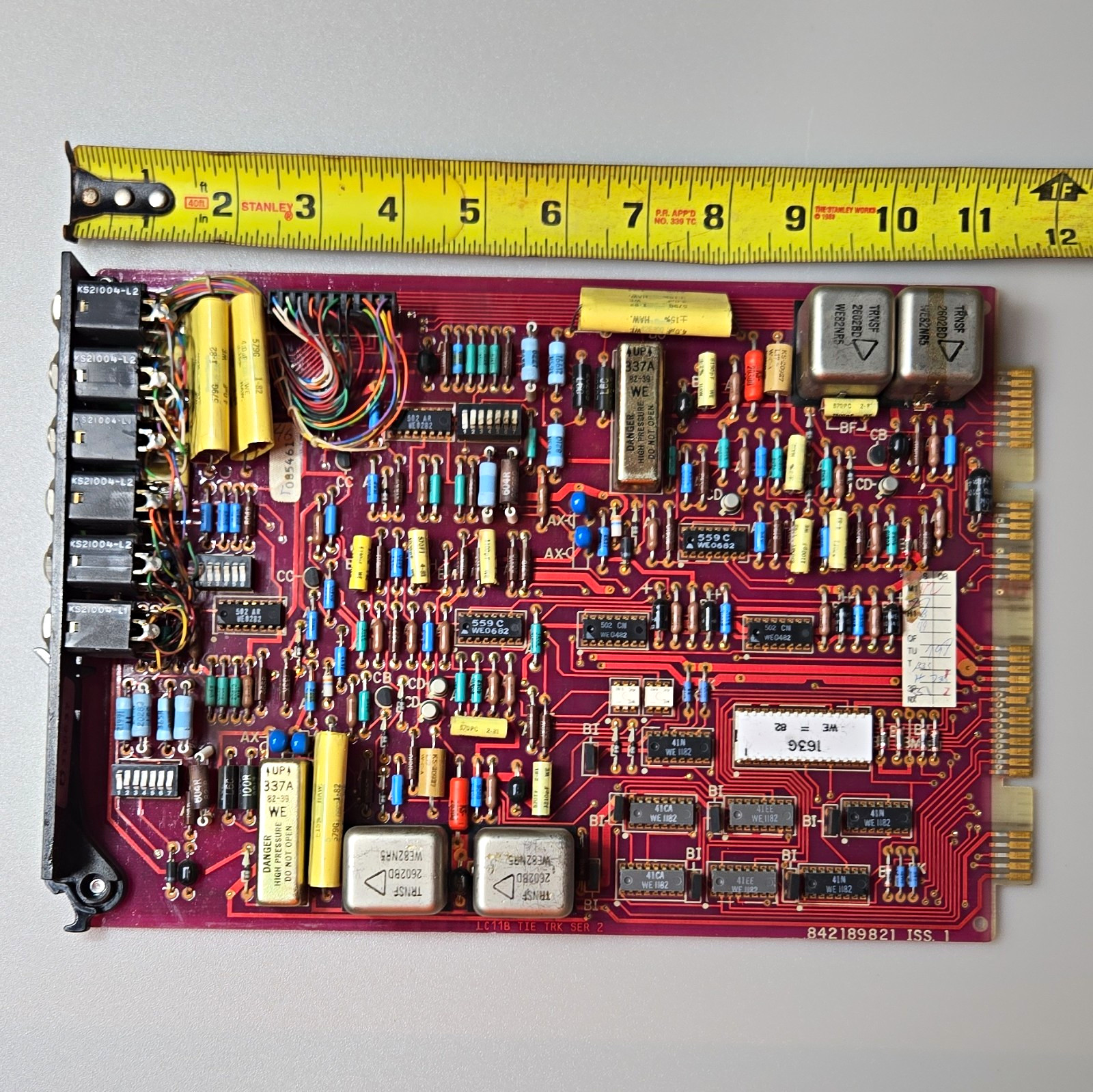

Original vintage Western Electric / Bell System telecommunications circuit pack from the early 1980s.This is an unusually component-dense Western Electric PBX card with numerous original Western Electric integrated circuits, metal-can components, transformers, discrete components and gold-plated card-edge contacts.
Identification / markings:
• LC11B TIE TRK SER 2
• 842189821 ISS. 1
• Function marking: TIE TRK (Tie Trunk)
• Numerous Western Electric components marked WE
• Large white Western Electric device marked 163G / WE / 82
Approximate date: 1982Please note- The green card has IC chips dated 1979 and the red cards have datencodes of 1982. Other than that they appear identical. If you want a particular card, please let me know when you place your order.Multiple original Western Electric ICs on this board carry 1982 markings/date codes, including examples marked WE1182, WE0282, WE0482 and WE0682. Based on the component markings, this circuit pack appears to date from approximately 1982.
This LC11B was designed as a Tie Trunk circuit card for vintage Western Electric/Bell System PBX telecommunications equipment. Tie trunks were used to provide trunk connections between PBX/telephone switching systems.Notable vintage components include:
Numerous Western Electric proprietary integrated circuits, including devices marked 41N, 41CA, 41EE, 502 AR, 502 CN, 559C and 163G, along with additional WE components.
The board also contains several large metal-can transformer/module assemblies, multiple high-voltage components marked “DANGER HIGH PRESSURE DO NOT OPEN,” banks of discrete resistors/capacitors/transistors, DIP switches, wiring assemblies, and a row of individual line/trunk interface modules along the front edge.
Precious-metal-bearing construction:
This board has numerous visibly gold-plated card-edge connector contacts along the backplane connection edge.
Many of the vintage Western Electric integrated circuits also have gold-colored/plated leads visible in the photographs. Semiconductor devices manufactured during this period commonly used precious-metal-bearing construction in certain packages, potentially including gold-plated connections and internal gold bonding wire. Exact internal construction and precious-metal quantity have not been independently tested or verified, so no specific recoverable gold quantity is represented or guaranteed.
The photographs show the actual vintage construction and extensive original component population of this card.
Size: approximately 11½ inches × 7½ inches, not including minor projections from the extraction handle/connector assembly.Condition:
This card came from vintage Bell/Western Electric telecommunications equipment and has not been electrically tested. Due to its age, it is being sold AS-IS / UNTESTED with no guarantee of functionality.It shows normal age/storage wear, including minor scratches, discoloration, oxidation and other cosmetic evidence of age. Please examine the photographs carefully for exact physical condition and component population.An excellent original example for a Western Electric/Bell System collection, vintage telephone/PBX collection, telecommunications history display, electronics collection, restoration project, or vintage electronic component collection.
