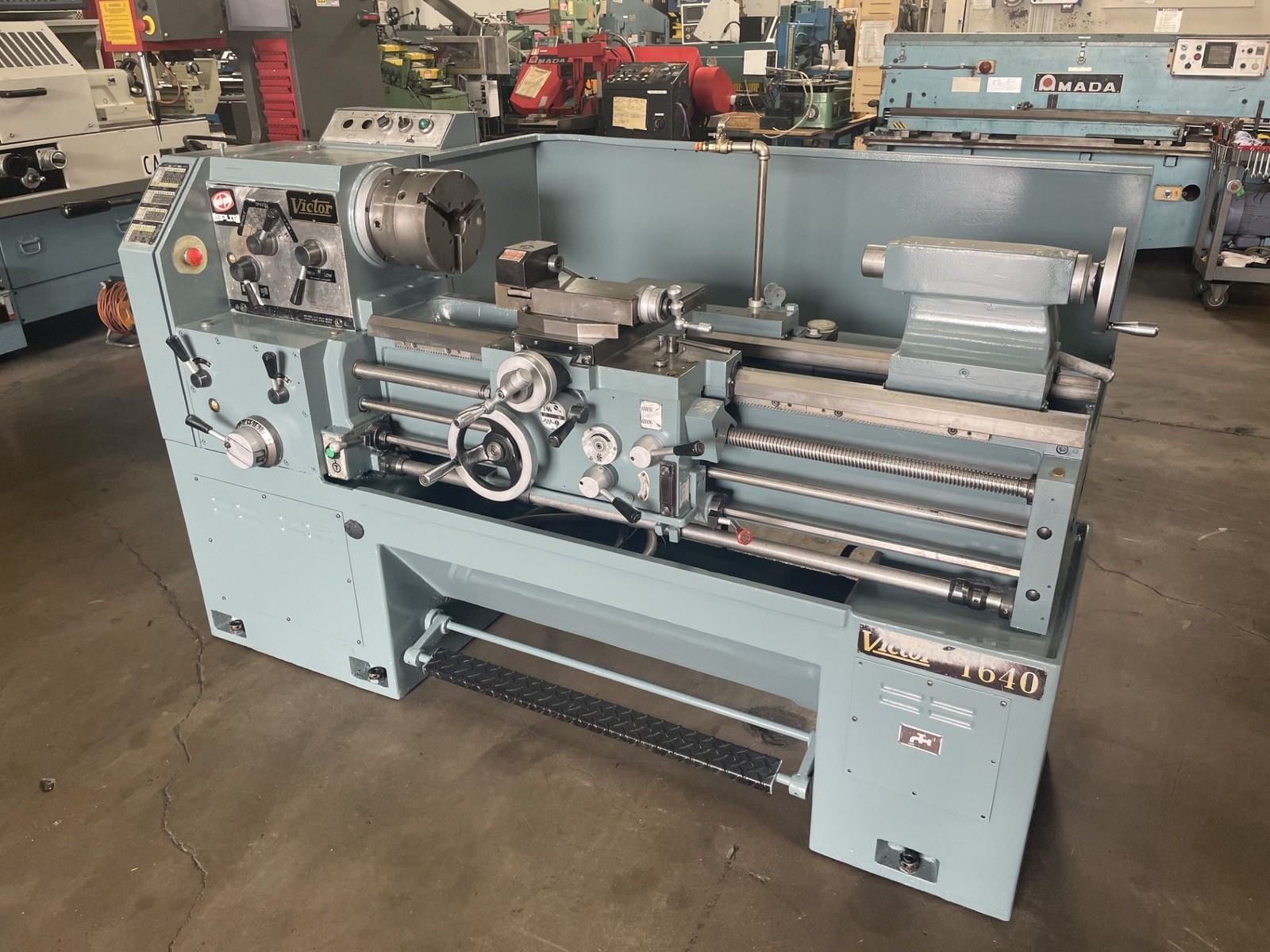

Victor 16\" x 40\" Model 1640 Gap Bed Engine Lathe #8332 #1 Victor 16\" x 40\" Model 1640 Engine Lathe, VICTOR 1640. Features 7.5 HP motor, 16\" swing over bed, 40\" distance between centers, and 2\" spindle hole. Spindle speeds (65-1,800 RPM) and inch/metric threads (4-56 TPI, 0.25-6 MM). Used condition. Overview:
Type:
LATHES, ENGINE
Brand:
VICTOR
Model:
1640
Stock #:
8332
specifications:
Swing
16\"
Centers
40\"
Spindle Bore
2\"
Power
5 hp
RPM
65 RPM
Swing Over Cross Slide
10\"
Spec Sheet:
Victor 16\" x 40\" Model 1640 Gap Bed Engine Lathe #8332 #1SPECIFICATIONS:7.5 HP main motor1/8 HP pump motorSwing Over Bed: 16\"Swing Over Cross Slide: 10\"Distance Between Centers: 40\"Spindle Speeds (8): 65- 1,800 RPMSpindle Nose: D1- 6Hole Thru Spindle: 2\"Threads: Inch (32): 4- 56 TPI Metric (25): 0.25- 6 MMFeeds (32): 0.0025\"- 0.0455\"Cross Slide Travel: 9 1/2\"Tailstock Quill Travel: 6\"Tailstock Quill Taper: #4 MT80\" L x 32\" W x 55\" H3,500 Pounds3 phase, 220 volt
