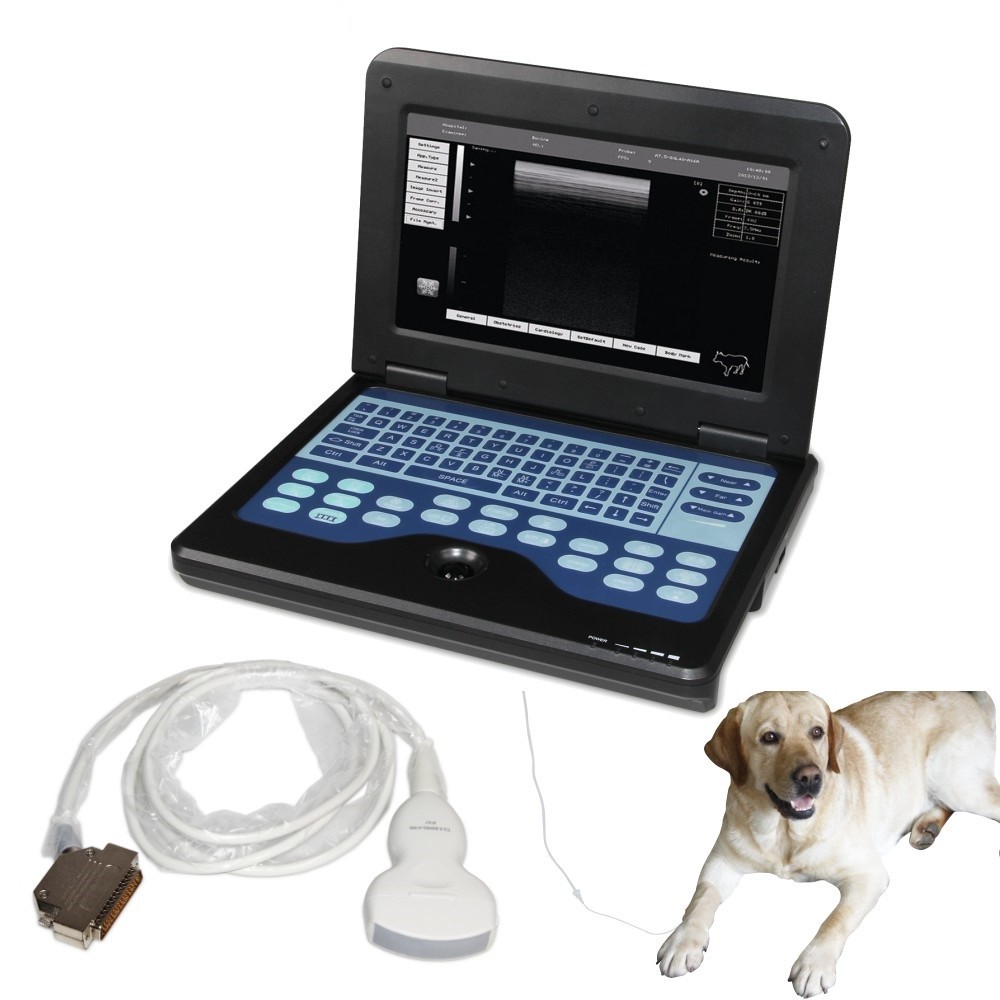

VETERINARY PORTABLE ULTRASOUND SCANNER WITH ONE PROBE IntroductionIt is a notebook veterinary B-ultrasound diagnostic system. Its embedded operation system greatly improves the product performance, achieving stronger data process ability and fast process speed. Pop-up menu and keyboard design bring more convenient to users. The device is applicable to the measurement and calculation of the obstetric for swine, bovine, sheep, equine, cat, dog and other animals.
Features1)Simple and easy image management function, reports can be printed and output.2)Near field, far field and total gain can be adjusted separately.3)External storage function.4)Software is updated through U-disk.5)Can be connected with video printer, ink-jet printer, laser printer.6)Realizing image real-time, freeze, memory, calling up and large capacity cine loop; possessing functions such as multi-level scanning depth, dynamic range, focus number, focus distance, focus position adjusting, etc.PerformanceDisplay mode: B, 2B, 4B, BM, M.Display depth: 240 mmFocus mode: focus number and focus position can be adjusted.Measurement and calculation: Distance, circumference, area, volume, angle, ratio and gestational age for swine, equine, bovine, sheep, dog and cat.Character display: date, time, animal name, animal type, hospital, serial number, frame rate, depth, total gain, dynamic range, frame correlation, probe frequency, magnification times and functional menu.Image processing: controllable frame correlation, gamma correction, histogram, up and down flip, left and right flip, positive and negative image conversion.SafetyType of protection against electric shock: class Ⅱ equipmentDegree of protection against electric shock: type BF applied partOperational voltage: DC15V, 4APower consumption: ≤45 VA
Accessories7.5MHZ Rectal probe 1User manual 1Power adapter 1Power cord 1Screwdriver 1Carrying bag 1
Physical characteristicDimension: 292 mm(L)×232 mm(W)×45 mm(H)Weight: about 2.3 kg (with probe)
