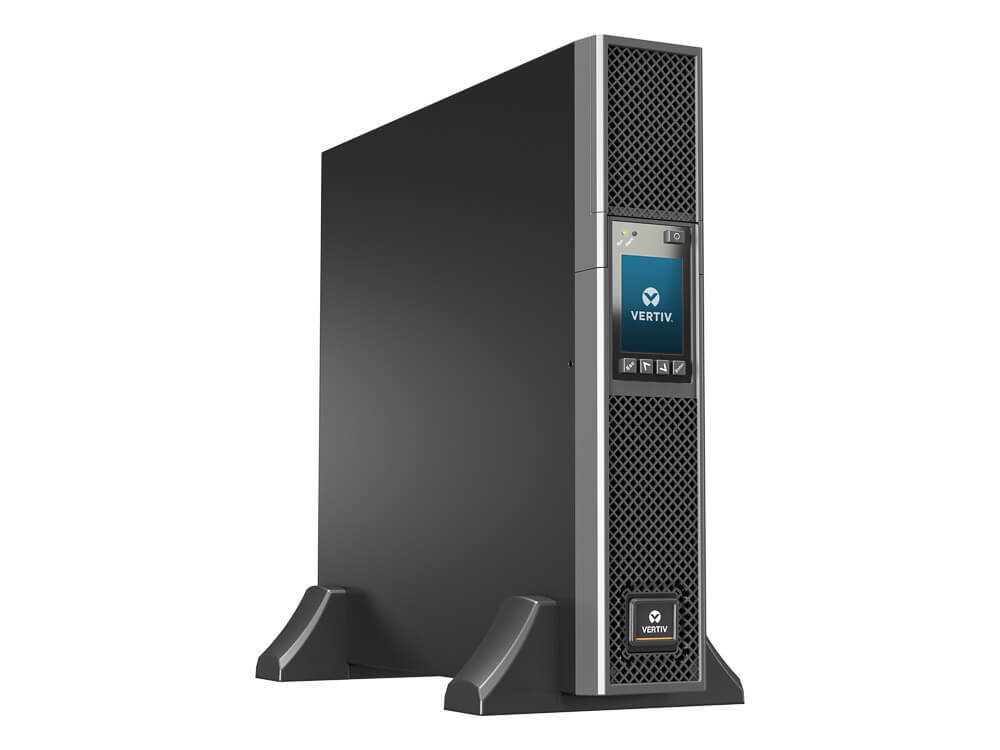

The Vertiv™ Liebert® GXT5 UPS, with a capacity of 1500VA/1350W, is a 2U compact and efficient UPS solution for ensuring the health and availability of IT infrastructure. With online, double conversion technology, the Vertiv Liebert GXT5 UPS protects critical equipment against outages and every type of power disturbance without drawing on battery power, extending battery life and minimizing replacements.KEY BENEFITS:
- Enhanced local and remote management capabilities enable users to understand the condition of the critical infrastructure space and take action when necessary
- High power factor operation up to unity provides the highest available power (watt) for use by connected IT equipment, allowing for more connected devices
- Integrated serial connection for advanced console server integration or direct terminal control of the UPS
- Energy Star® 2.0 certification with efficiency in online (95%) and Active ECO (98%) modes
- SNMP network communications with optional Liebert® RDU101 NIC and free Trellis™ Power Insight
- Gravity-sensing, color LCD for easy configuration and system diagnosis
- Scalable power with auto-detection of external battery cabinets
- Connected Equipment Protection Plan
Liebert GXT5-1500LVRT2UXL UPS Specifications
MechanicalHeight3.4\" (85 mm.)Width16.9\" (430 mm.)Depth18.5\" (470 mm.)Weight46.2 lb (21 kg)Rack Height2UColorBlackInput ACRangeTypical 120V
Range: 60-150VFrequency40-70Hz; Auto SensingInput Power Cord10 ft. attached w/ NEMA 5-15P A plugOutput ACOutput Receptacles6 x 5-15RVoltageTypical 120V
110/115/120VAC (user-configurable); ±3%WaveformSine waveUtility (AC) Mode Overload>200% for 250ms;
150- 200% for 2 seconds
125- 150% for 50 seconds;
105-125% for 60 secondsBatteryTypeValve-regulated, non-spillable, lead acidBackup Time6.7 Minutes (100% Load)
18.8 Minutes(50% Load)+1 External Battery Cabinet32.4 Minutes (100% Load)
79.7 Minutes(50% Load)EnvironmentalOperating Temperature32 to 104°F (0 to 40°C)Storage Temperature-4 to 140°F (-20 to 60°C)Relative Humidity0% to 95%, non-condensingOperating Elevation10,000 ft. (3,000m)Storage Elevation50,000 ft. (15,000m)Audible Noise< 46dBA max @ 3 ft. (1m) front and sides
< 43dBA, at 3 ft. (1m) rearAgencySurge ImmunityANSI C62.41 Category BTransportationISTA Procedure 1ASafetyUL 1778 4th Edition and CSA 22.2 No. 107.3EmissionsFCC Part 15 (Class A) - CISPR22 Class A (RFI)Warranty
3 year warranty (Opt. 2 year)
