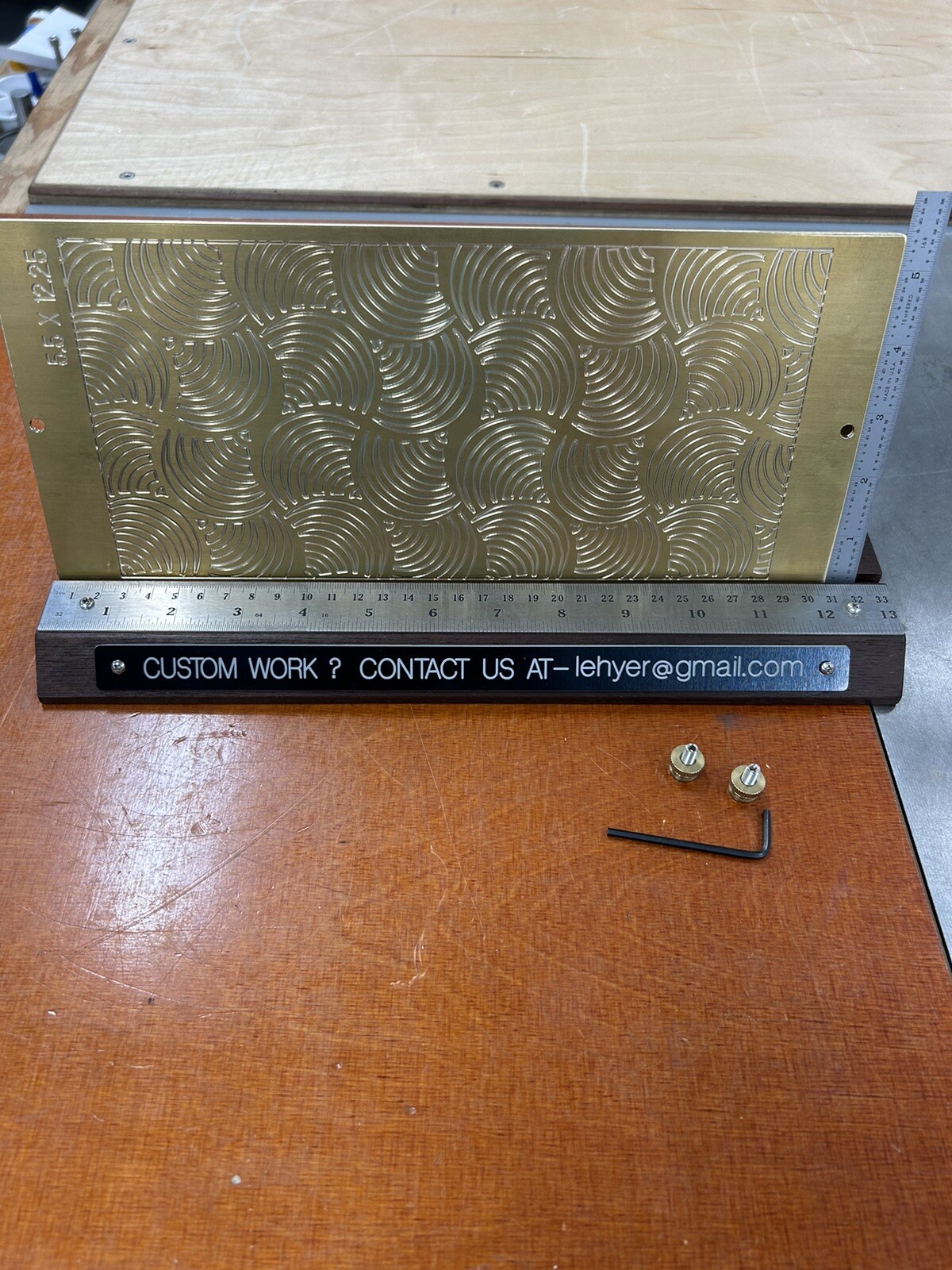

LARGE BRASS MASTER TEMPLATE FOR NEW HERMES ENGRAVING MACHINES
THIS IS A VERY LARGE TEMPLATE AND WILL ONLY WORK OR FIT ON ONE OF THE LARGE FORMAT MACHINES. BE CERTAIN THAT YOUR COPY TRAY WILLACCOMMODATEA PLATE THIS LARGE AND THAT YOURPANTOGRAPHARM HAS THE CAPABILITY OF TRACING A TEMPLATE OF THIS SIZE.
This is so large it will not slide into the copy tray. It is mounted to your copy stops using the included hardware package. This even includes the Allen wrench needed to tighten the setscrews to your copy tray. Please note that the part number is for id only and is not meant to be engraved.
You unscrew your brass thumbscrews and then insert the stainless steel set screws. Leave them loose and then place the template over the set screws which will automatically set the spacing. Then lightly tighten the set screws with the hex wrench.Then just add the brass thumb nuts and tighten it.
This will be folded up in cardboard to protect it and it will be mailed in a bubble envelope by first class mail so you will get it quick. If you pay by noon I will also mail the same day for faster service. Thank you for looking
PLEASE NOTE THAT THE HARDWARE KIT THAT IS SUPPLIED HAS FINE THREAD METRIC HARDWARE (5MM .8 PITCH). THIS FITS 99% OF THE MACHINES IN CIRCULATION. HOWEVER THERE ARE A FEW MACHINES OUT THERE THAT USE A (SAE) #10-24 UNC AMERICAN PITCH THREAD ON THE COPY STOPS. IF THIS IS YOU PLEASE REQUEST THE 10-24 HARDWARE KIT WITH YOUR PLATE OR THE METRIC VERSION WILL BE INCLUDED BY DEFAULT.
IF YOU ARE UNSURE OF WHICH THREAD YOU HAVE I HAVE INCLUDED A PICTURE FOR YOUR REFERENCE SHOWING THE DIFFERENCE IN THE THREAD PITCH. WE WANT TO BE SURE THAT THE HARDWARE IS CORRECT FOR THE MACHINE THAT YOU ARE USING SO THAT YOU MAY BEGIN USING IT THE DAY YOU RECEIVE IT. .
