Product description 21 circuit wiring harness kit

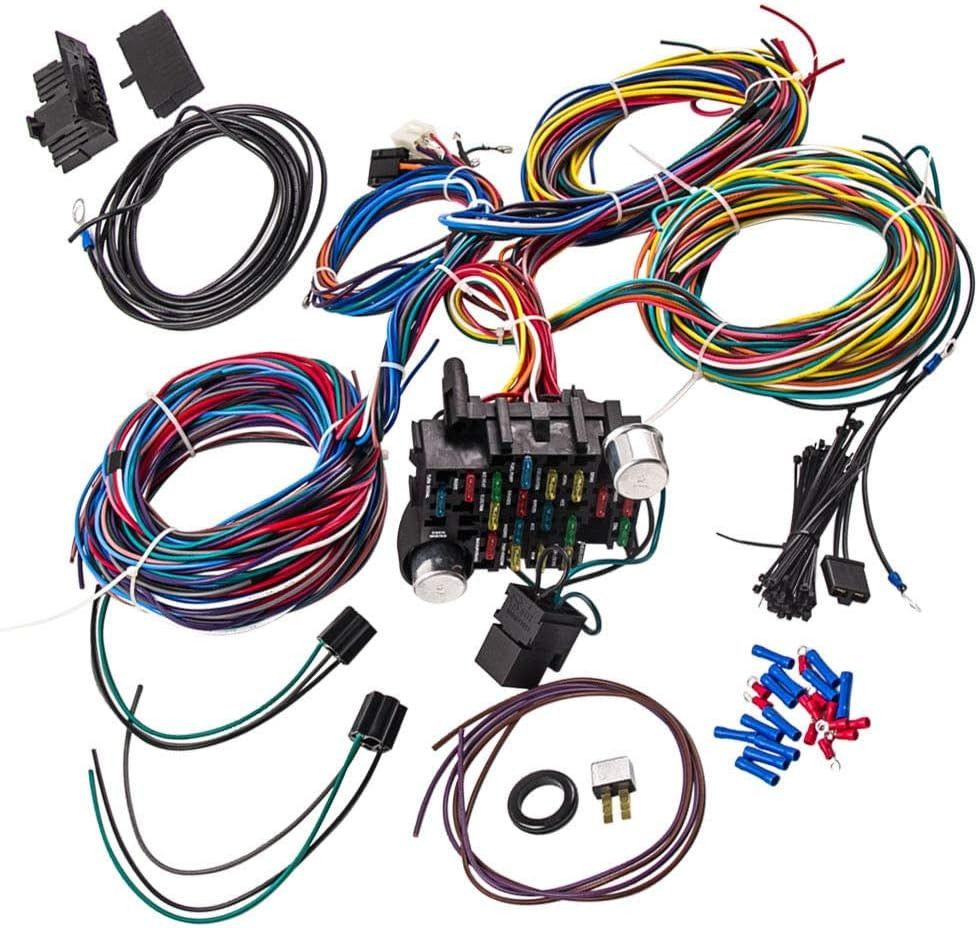

Auto Parts Prodigy This item is a 21 Circuit Automotive Wiring Harness. The circuits included: horn, fan, dome light, hazard, radio, cigarette lighter, door locks, brake, headlights, trunk light, gauges, back up and cruise, wipers, choke, coil, a/c, electric fuel pump, power windows and turn signals .The 12 circuits Wiring Harness also includes horn relay and connector, turn and hazard signals, dimmer switch connector, circuit breaker for headlights, 2 flashers, 1 alternator plug, 2 ignition switch connectors. Feature: 17 fuses and 21 circuits Long wires to fit on almost all vehicles All wires are labeled every 5 inches Wires are coded GM column connectors included Professional installation is highly recommended For Chevy ,Mopar Ford Hotrods universal This harness kit includes full instructions, still professional installation is highly recommended.
Our universal wiring harness is the perfect solution for vehicles with no reproduction harness options, custom builds, or the budget-minded DIY builder. This highly versatile wire harness works with nearly any 12-volt vehicle, engine, and transmission combination (carb or EFI, automatic or manual), including engine swaps. Whether you\'re building an option-loaded car, or just want to have extra circuits available for future updates, this 21-circuit wiring kit has you covered.
A compact fuse box mounts discreetly out of view, or choose an open installation for easy access. Any unused circuits can be bundled up and tucked away under the dash for future use. The harness includes extra length tail light leads for easy mounting in most vehicles, even full-size cars, trucks or vans.
A modern fuse block design gives easy service and fuse replacement. The fuse block arrives complete with modern ATO/ATC blade fuses and a common 2-prong style flasher. Goodbye Terrible glass fuses! Crimp connectors and terminals are included.
Our universal 21-circuit harness consists of conveniently bundled into 4 sections Front Section, Dash Section, Steering Column Section and Tail section
- Engine compartment feed wires (EFI engines will need an additional engine-specific harness)
- Instrument cluster feed wires (mechanical or electric Signal/Brake Light switch lead wires with connectors
- Radio/Heater/Air Conditioning feed wires
- Rear body feed wires
- Additional accessory wires
Features
- Perfect for restoration projects, custom vehicles or budget-minded DIY builders
- Universal design for nearly any 12-volt vehicle – great for engine swaps!
- Works with nearly any engine/transmission combination (carb or EFI, auto or manual)
- Tail light leads are extra long length; suitable for cars, trucks, longbox pickups, and vans
- Constructed of GXL insulated, automotive-grade copper wiring
- High-temp polyethylene insulation makes it viable in engine compartments
- Includes appropriate wire diameter for each fused circuit (ranging 8 to 16 gauge)
- Compact 5.5\"x 4.5\"x 3.3\"fuse block mounts discreetly out of view
- Two-piece fuse block design makes for easy fuse block removal/service
- Uses modern blade-style ATO/ATC fuses in place of outdated glass fuses
- 21 individually fused circuits, conveniently bundled
- Each wire strand is color-coded and labeled every 5\" for easy identification
- Includes proven GM-type switches, for easy repair/replacement if needed
Instructions Labeled Fuse Box Connections
A modern easy to read fuse block design gives easy service and fuse replacement. The fuse block arrives complete with modern ATO/ATC blade fuses and a common 2-prong style flasher. Goodbye Terrible glass fuses!
Individually Labeled and Color Coded Wires
Our universal gm engine wiring harness is labeled on the fuse box and the wire itself every 5 feet for easy installation
Complete automotive replacement electrical wiring harnesses kit comes with extra long wire and accessories
Complete automotive replacement electrical wiring harnesses kit comes with extra long wire and accessories and is bundled for easy installation into 4 sections
- Front Section
- Dash Section
- Steering Column Section
- Tail section
Auto Parts Prodigy - Outstanding Service and Great Prices Built For Professionals
- Our Products are tried and true out in the field by many technicians.
Strick Quality Control
- Products are reviewed to ensure low defect rates
US Based Small Business
- We are are US Small Business. Your purchases help a local New York Family.
- GM COLOR CODED - 21 Circuit Wiring Harness are all coded by GM color for easier installation. Perfect Selection for you Classic car chassis wiring harness
- INCLUDED CIRCUITS: Universal wiring harness kit included circuits are: horn, fan, dome light, hazard, radio, cigarette lighter, door locks, brake, headlights, trunk light, gauges, back up and cruise, wipers, choke, coil, a/c, electric fuel pump, power windows and turn signals
- INSTRUCTIONS: Comes with detailed instructions and have specific pages for GM, Ford and Mopar - You will find this to be a painless wiring kit for your Hot rod wire harness kit but Professional Install Recommended
- EXTRA LONG WIRES: Wires are extra long to help accommodate whatever build you are working on
- HIGH QUALITY MATERIALS: GXL 125 high temp cross linked polyethylene jacketed wire that is grease, oil, gas, and acid resistant.
