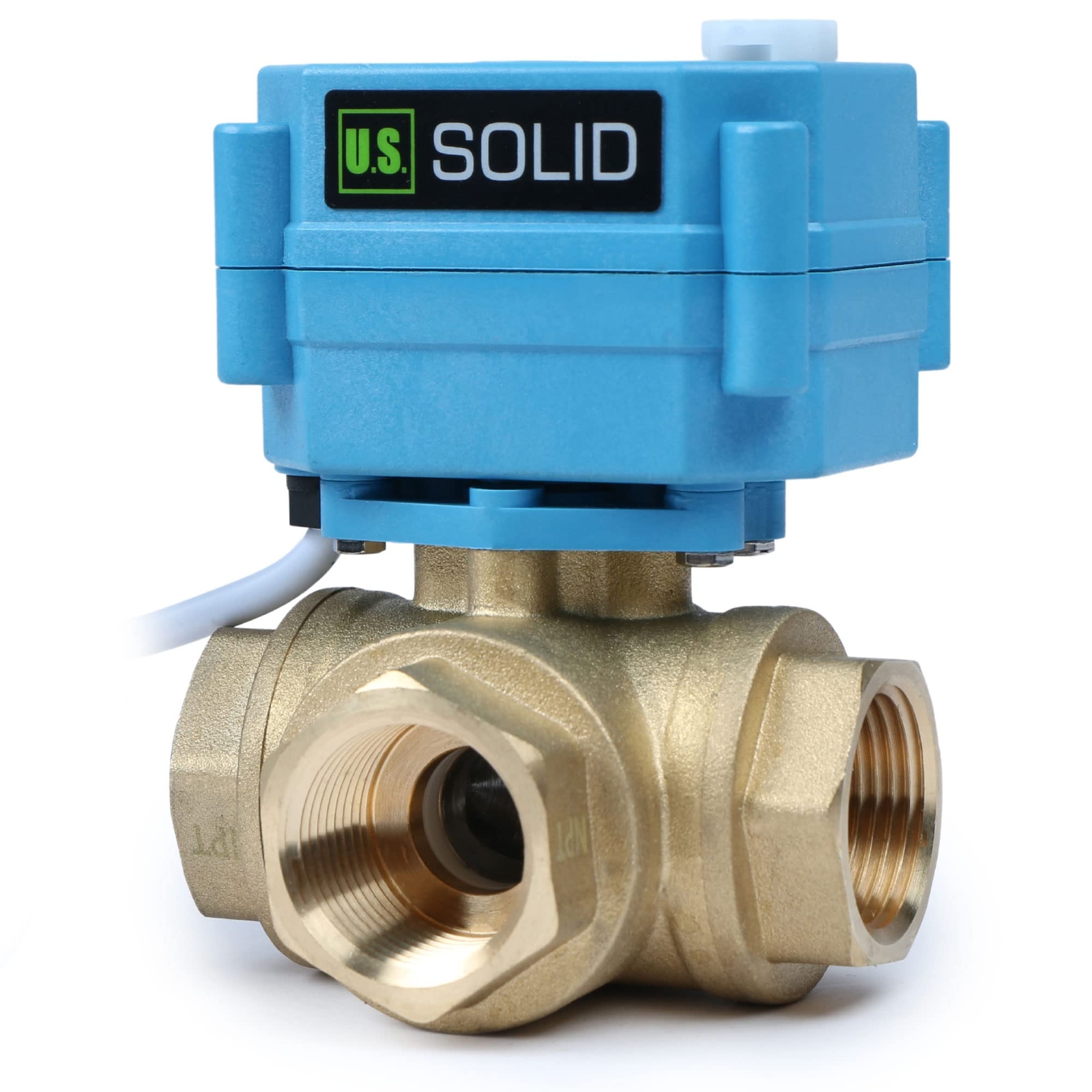

U. S. Solid 3 Way L Type Motorized Ball Valve w/ Hand Wheel 3/4in Brass 9-24V For Sale

Motorized ball valves provide an energy-efficient option compared to solenoid valves, particularly for extended periods of operation. They primarily use power when opening and closing, with minimal consumption once fully open. This enables continuous operation without the concern of overheating or premature failure. We recommend using Teflon tape to ensure the sealing of NPT threads.

• 3 Way L Type. FLOW DIRECTION: Situation 1, Water enters from the BOTTOM port. With power, it flows from the LEFT port; without power, from the RIGHT port; Situation 2, Water enters from both the LEFT and RIGHT ports. With power, it flows from the LEFT port to the BOTTOM; without power, from the RIGHT port to the BOTTOM.
• Including a hand wheel, allowing manual operation and precise control, providing emergency shutdown and visual indication.
• IP67 Rating: protection from immersion (up to 1M) for a limited time. If permanently installed outdoors, it is advisable to place it in a shaded area or in a protective enclosure to prevent prolonged exposure to rainwater.
• Standard port. The valve\'s internal diameter is smaller than the pipe size.
• Normally closed. It remains closed without power and opens when energized.
• 2 Wire auto return wiring. DC: Connect the red wire to the positive pole(+) and the black wire to the negative pole(-) to open the valve. Disconnecting either wire will close the valve. AC: Connect one wire to the positive pole(+) and the other to the negative pole(-) to open the valve. Disconnecting either wire will close the valve. To ensure proper operation of the auto-reset function in case of power failure, it is necessary to power the equipment for approximately one minute for charging the capacitor in 2-wire-auto-return motorized ball U.S. SOLID
  Model: USS-MSV10004
  Valve Material: Brass
  Is Drinking Water Available?: No
  Seal: FKM&PTFE
  Voltage: AC/DC 9-24V
  Port Size: 3/4\" NPT Standard Port
  Flow Aperture: 15mm (0.59in)
  Normally Closed/Normally Open: NC, Normally Closed
  Maximum Torque: 3 N·m
  Maximum Power: 5 W
  Open/Close Time: 5 Seconds
  Life Expectancy: 70,000 Times
  IP Rating (Casing): IP67
  Maximum Pressure: 1.0 MPa (145 psi)
  Medium Temperature: 2℃ to 90℃ (35.6℉ to 194℉)
  Ambient Temperature: -15℃ to 50℃ (5℉ to 122℉)
  Wiring: 2 Wire Auto Return
  Casing Color: Blue
