Submersible Pump, 3.5\" Deep Well, 1 HP 115V, 33 GPM, 207\' Hallmark Industries For Sale

We are the only authorized seller of Hallmark Industries\' products on .Hallmark Industries Incis the leading brand of water pumps for household and industrial applications.Based in Chicago IL, all customer services and warranty will be handled in the U.S.

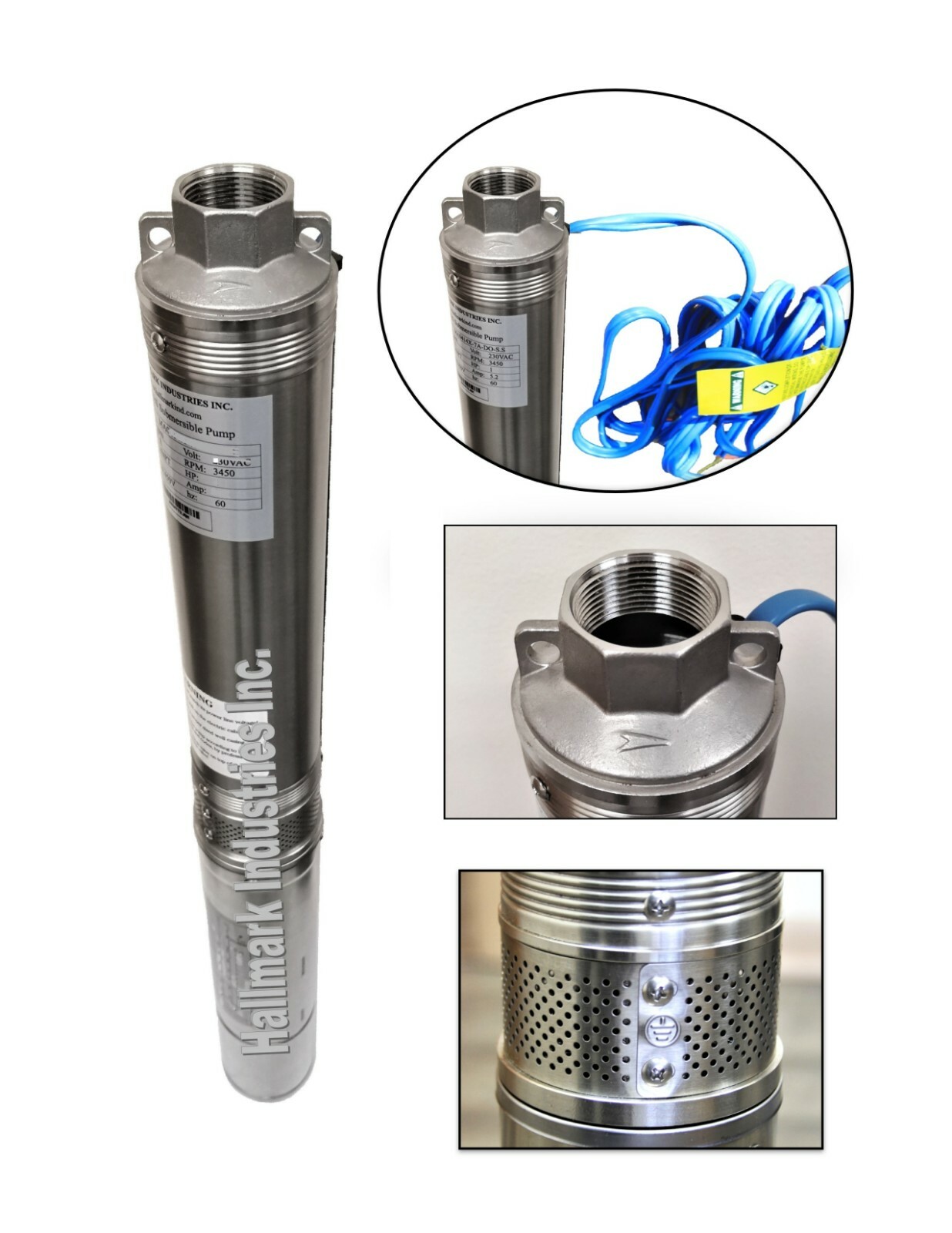

207 Feet MAX Head, 33 GPMMAX, Stainless Steel Deep Well Submersible Pump, 1 HP115V
This pump is for 110V (115V), 60 HZ, single phase!
(Please check the flow chart for the detailed flow and depth information.)Features & Technical Specifications:

• 3.8\" deep well submersible pump, 1 HP,115V, 10.4 Amps, 8 stage, 1-1/4” NPT discharge.

• Fits 4\" or bigger well casing.
• Stainless steel with industrial grade heavy duty, also good for home usage
• Patented impeller & 8 stage design. 33 GPM max/207 ft head are comparable to 2HP pumps, but uses less electricity.
• 207 feet max head is for open water tanks. Refer to thePump Selection Guidefor the pressure tank applications.
• Patented impeller design provides extended pump life and heavy flow under the worse circumstances.
• This pump last much longer than the all-plastic-bottom-suction pump, which weighs half of this pump (same HP).

• Water temperature: (32 ~113oF)Trans medium’s Ph: 6.5~ 8.5
• Stainless steel shell, cast iron discharge and intake to ensure corrosion resistance. High quality sealed ball bearings guarantee its excellent performance.
• Hermetically sealed motor has a built in capacitor start, and thermal protection to prevent overheating, for longer life and powerful start.
• Built in control box. This pump DOES NOT require an external control box!
• This pump uses high quality and high efficient motor, and uses less energy
• This is a 2 wire pump with 3-Wire (2 wires + ground wire)
• 10\' long electric cord comes with this submersible deep well pump.
• Heavy-duty thermoplastic impellers, diffusers, and intake screen.
• Unique design reduces its noise.
• Installation & user\'s manual, and tape kit are included.
• Free technical support available during your installation.
• For usinga pressure tank - Max water level VS. pressure switch settings:

Pressure switch set @ 20/40 psi

Pressure switch set @ 30/50 psi

Pressure switch set @ 40/60 psi

114 feet(max static water level)

91 feet (max static water level)

68 feet (max static water level)

Performance curve is for pumping water into a non-pressure tank.For pressure tanks, Head=water level + psi * 2.31

Condition: New in the box

Return Policy: 30 day (the longest on ): if you are not happy with the pump, we will refund you the full pump price less shipping cost.

Shipping: Please use your commercial shipping address for faster delivery. This item ships in less than 1 business day.

Warranty:1 year manufacturer\'s warranty
