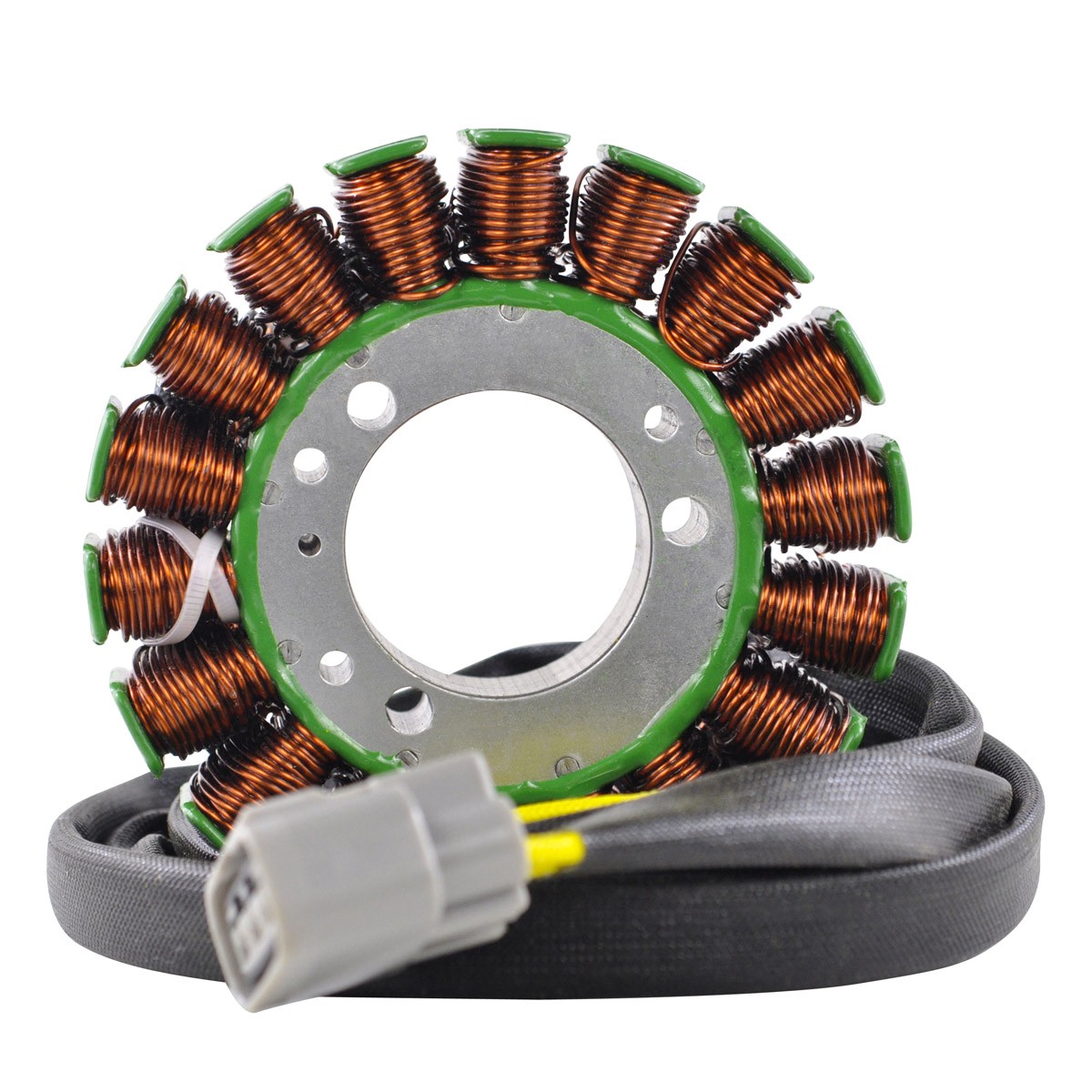

Stator for Can-Am Commander / Defender - HD8 HD10 / Traxter - HD8 HD10 / Maverick 2011-2021 | 420685631 / 420685632 KEY FEATURES
WARNING! For some Can-Am models, there are several stator configurations available with varying outputs. Please be sure of which OEM and output your machine needs before purchasing. This part will replace OEMs 420685632, 420685631, and 420685630 and has an output of 650 watts
Brand new generator stator direct replacement
Highest grade lamination materials
Highest grade copper windings resistant to 200 degrees celsius
All products shipped are tested
DESCRIPTION
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
Please Note: For some Can-Am models, there are several stator configurations available with varying outputs. Please be sure of which OEM and output your machine needs before purchasing. This part will replace OEMs 420685632, 420685631, and 420685630 and has an output of 650 watts.
Brand new generator stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Connector included
- Rubber grommet included
- All products shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Vehicle models fitment
Can-Am Commander 1000 -- 2011-2020
Can-Am Commander 800 -- 2011, 2014-2015
Can-Am Commander 800 R -- 2012-2019
Can-Am Commander Max 1000 -- 2014-2020
Can-Am Commander Max 800 R -- 2016-2019
Can-Am Defender HD10 DPS -- 2016, 2018-2019
Can-Am Defender HD10 STD -- 2016-2019
Can-Am Defender HD10 X MR -- 2018-2019
Can-Am Defender HD10 XT -- 2016-2019
Can-Am Defender HD10 XT Cab -- 2016-2019
Can-Am Defender HD10 XT-P -- 2018-2019
Can-Am Defender HD8 800 -- 2016-2019
Can-Am Defender Max HD10 DPS -- 2017, 2019
Can-Am Defender Max HD10 X MR -- 2019
Can-Am Defender Max HD10 XT -- 2017-2019
Can-Am Defender Max HD10 XT Cab -- 2019
Can-Am Defender Max HD8 800 -- 2017-2019
Can-Am Maverick 1000R -- 2013-2018
Can-Am Maverick 1000R Turbo -- 2015-2017
Can-Am Maverick Max 1000 Turbo -- 2016
Can-Am Maverick Max 1000R -- 2014-2018
Can-Am Maverick Max 1000R Sport -- 2019
Can-Am Maverick Max 1000R Turbo -- 2015-2017
Can-Am Maverick Sport 1000 -- 2019
Can-Am Maverick Sport 1000 R -- 2019
Can-Am Maverick Trail 1000 -- 2018-2019
Can-Am Maverick Trail 800 -- 2019
Can-Am Maverick Trail 800 T Series (Base DPS) -- 2019
Can-Am Maverick Trail 800R -- 2018
Can-Am Traxter HD 10 XMR -- 2018
Can-Am Traxter HD10 -- 2017-2019
Can-Am Traxter HD8 -- 2016-2019
Can-Am Traxter Max HD10 -- 2017-2018
Can-Am Traxter Max HD8 -- 2017
Can-Am Traxter T HD10 -- 2018
Can-Am Traxter T HD8 -- 2018
OEM part :
Interior diameter : 42 mm
Exterior diameter : 115 mm
Thickness : 24 mm
Length of wires stator to grommet : 150 mm
Length of wires grommet to plug : 1470 mm
Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3
Number of poles : 18
Wire to wire resistance :
Alternator : Yellow to Yellow = 0.4 ohms installing your new stator
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator/rectifier
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original. `
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010??.
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
