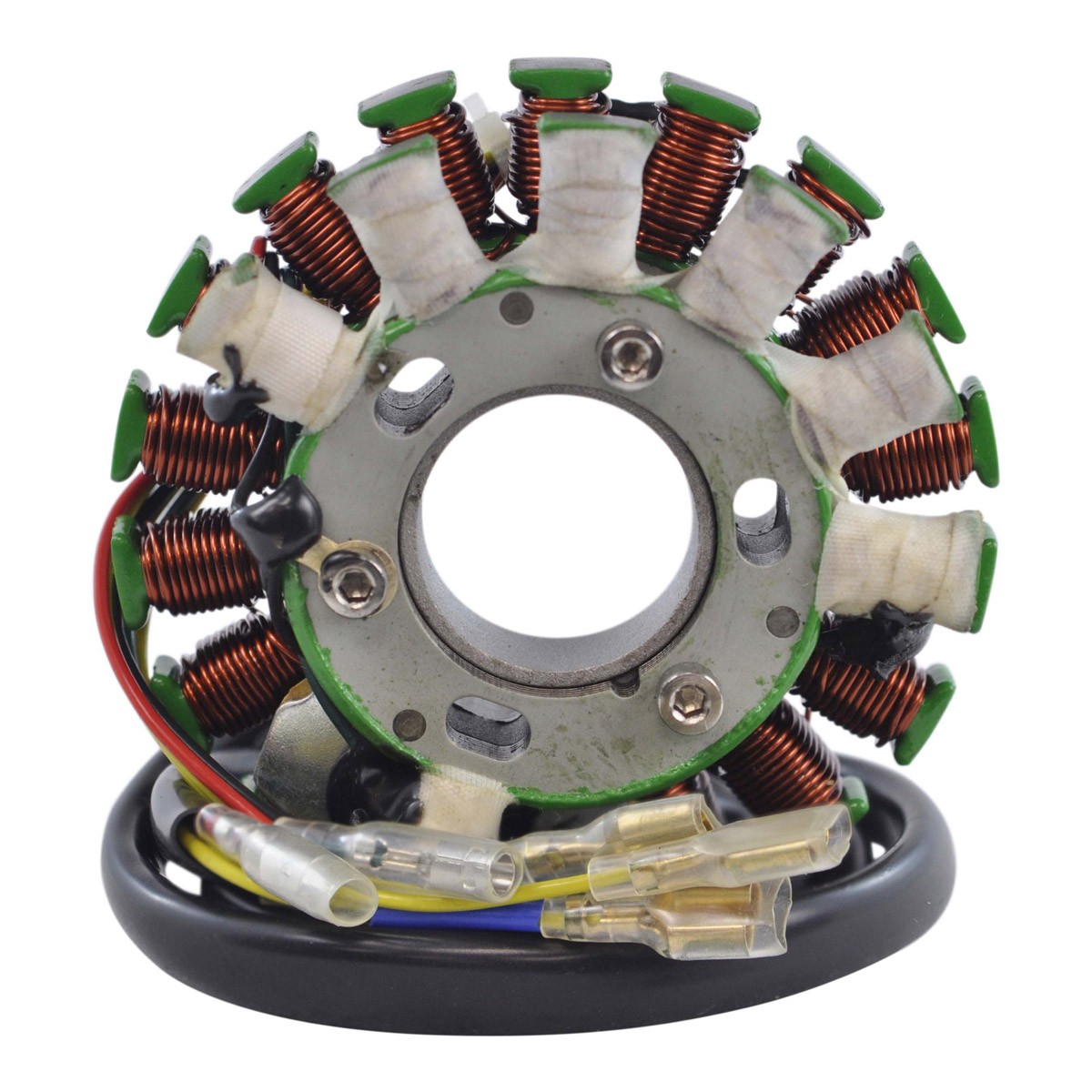

Lighting Stator for Husaberg FC 470 E 550 600 | FE 400 501 600 650 E | FS 400 600 650 E | FX 470 501 600 650 E 1999-2003 KEY FEATURES
Brand new SEM Direct replacment stator
Direct replacement of original SEM manufactured stator. Plug-and-play, direct fit, easy installation.
New design for better performance
All products shipped are tested
DESCRIPTION
For Husqvarna models, compare the resistances of your original stator with ours on the \"Specifications\" tab.
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
For Husqvarna models, compare the resistances of your original stator with ours on the \"Specifications\" tab.
RM01192
Pickup : Black To Green = 30 ohms +/-20%
Source : Red To Black = 1300 ohms +/-20%
RM01193
Pickup : Black To Green = 179 ohms +/-20%
Source : Red To Black = 1260 ohms +/-20%
Brand new improved SEM Direct replacment stator
- Direct replacement of original SEM manufactured stator even if the look is different
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Produces a stronger spark when starting and offers a reliable performance
- Pick up coil included
- All product shipped are tested
All item pictures are accurate
This stator has a different design than your original how ever it is a direct fit.Vehicle models fitment
Husaberg FC 470 -- 2001-2002
Husaberg FC 470 E -- 2002
Husaberg FC 550 -- 2001-2002
Husaberg FC 600 -- 1999-2000
Husaberg FE 400 -- 1999-2000
Husaberg FE 400 E -- 1999-2003
Husaberg FE 501 -- 1999-2000
Husaberg FE 501 E -- 1999-2003
Husaberg FE 600 -- 2000
Husaberg FE 600 E -- 1999-2000
Husaberg FE 650 E -- 2001-2003
Husaberg FS 400 E -- 2003
Husaberg FS 600 E -- 1999
Husaberg FS 650 E -- 2002-2003
Husaberg FX 470 E -- 2001-2002
Husaberg FX 501 E -- 1999
Husaberg FX 600 E -- 1999-2000
Husaberg FX 650 E -- 2001-2003
OEM part replacement
RM01193-R00
250 202-01
250 286-01
250 272-01
250 :
Interior diameter : 28mm
Exterior diameter : 91mm
Thickness : 23mm
Length of wires stator to plug : 700mm
Other specifications :
Number of wires : 6
Number of plugs : 6
Number of pins : 6
Wire to wire resistance :
Alternator :Yellow Between each Yellow = 0.4 ohms +/-20%
Pickup : Black To Green = 179 ohms +/-20%
Source : Red To Black = 1260 ohms +/-20%
instructions
Before installing your new stator
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator/rectifier
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original. `
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010\".
This stator is an improved version of the original but it is a direct fit
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
